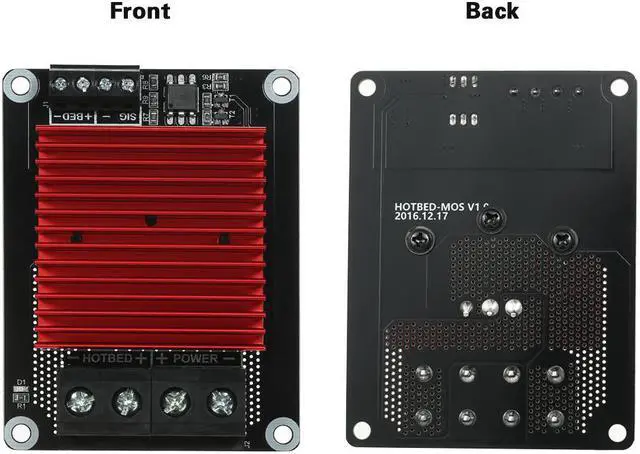

3D Printer Hotbed Heating Controller High Current Load MOS Module MOSFET Board Exceed 30A for CR-10 Ender-3 Prusa 3D Printer

Origin:CN(Origin)
Item Type:Module
Model Number:Hotbed Heating Controller Module

Features:
Functional test has been done for each one.
The MOS tube performance is excellent, nominal maximum current is 280A.

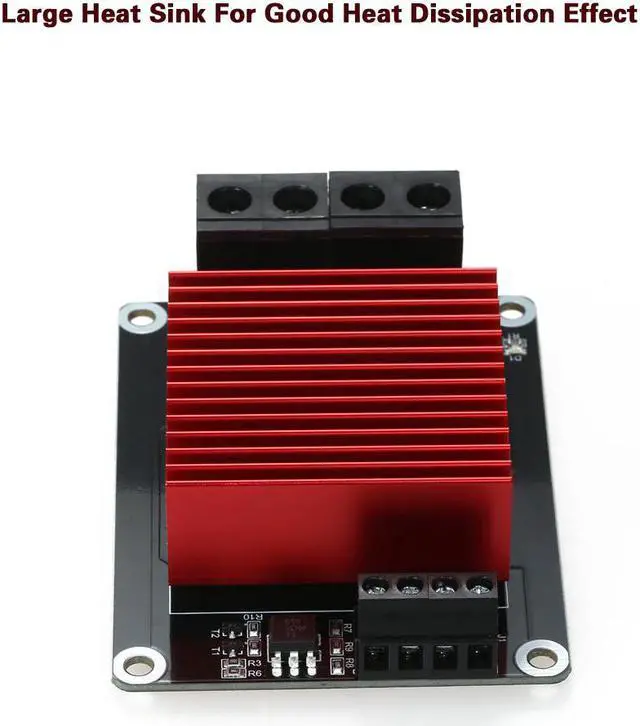

Maximum current can be up to 30A or more due to extra large heat sink.
Can use heatbed output signal of Ramp1.4 and series to control.
Can use digital signal of 5-24V to control.
Specifications:
Material: PCB
Function: Control Hot Bed, Heated Print Head
Power Supply: 12V-24V
Compatibility: For CR-10/ Ender-3/ Prusa/ TEVO/ BLV/ MGN/ Cube 3D Printer

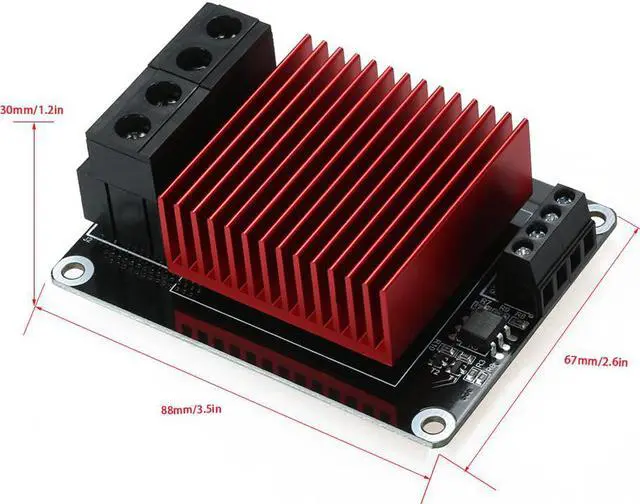

Module Size: 8.8 * 6.7 * 3cm/ 3.5 * 2.6 * 1.2in
Module Weight: 127g/ 4.5oz
Package Size: 15 * 10 * 3.7cm/ 5.9 * 3.9 * 1.5in
Package Weight: 191g/ 6.7oz
Usage:
1. Plug a power supply;
2. Connect to heated bed;
3. Connect digital control signal to GND, D8 of MINI;
4. Connect to the heated bed signal on Ramps1.4 or series controller boards.

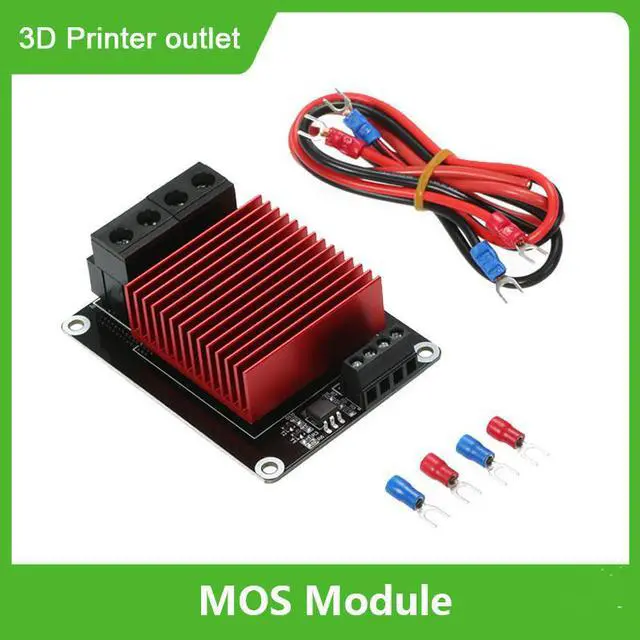

Packing List:
1 * MOS Module
1 * Double Head Power Cord
1 * Red Power Cord
1 * Black Power Cord
1 * Connection Cable with PINS
4 * U-shaped Terminal
