aquacomputer quadro fan controller for pwmfans

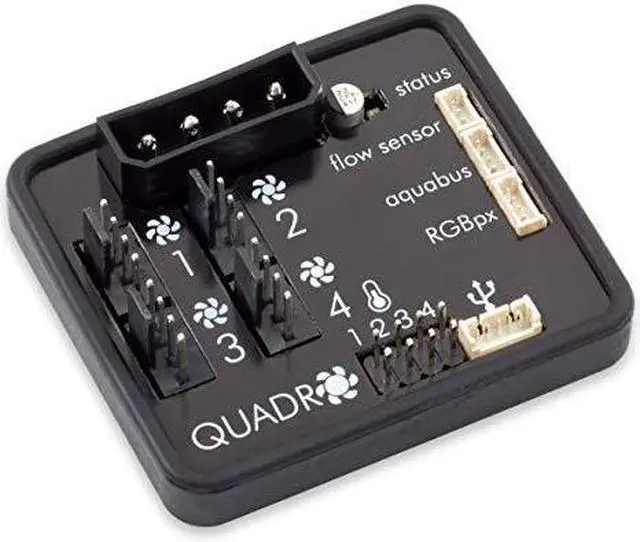

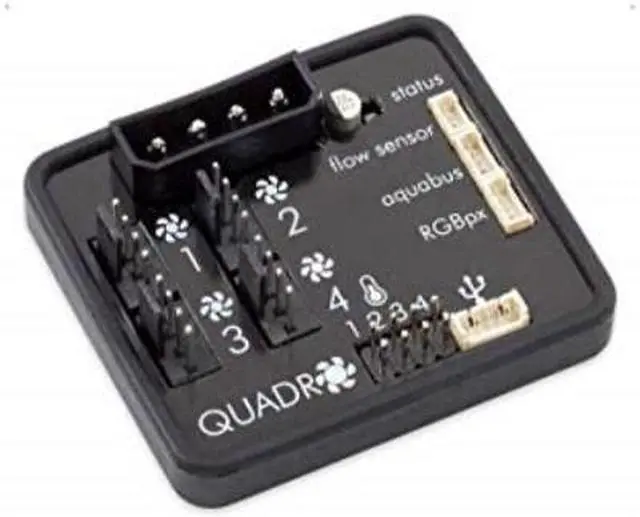

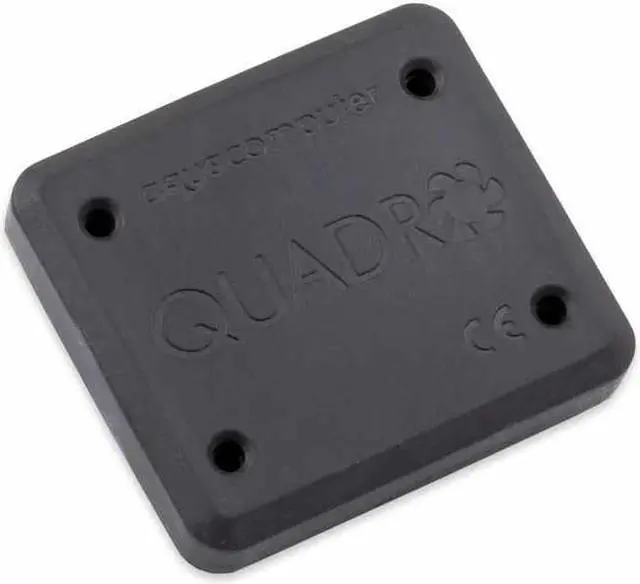

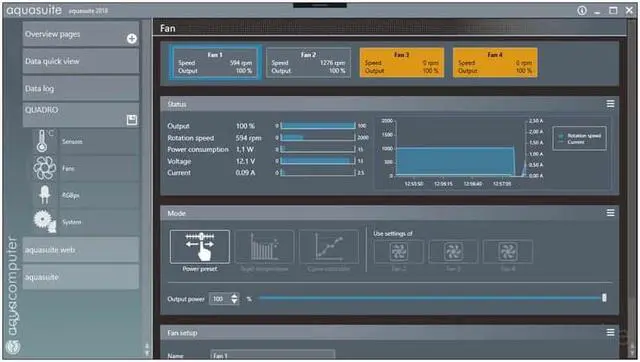

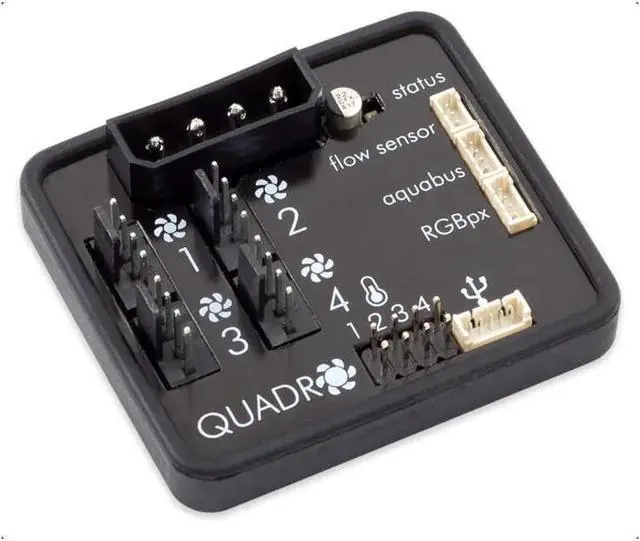

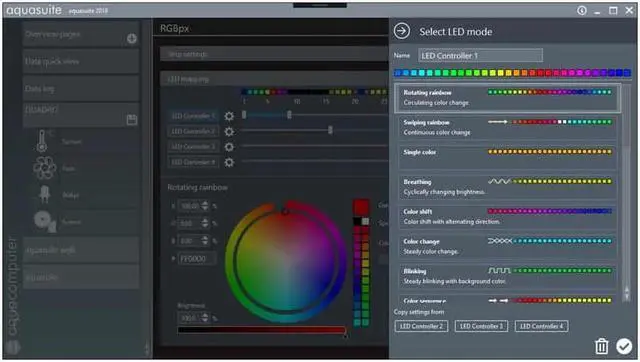

With the QUADRO, Aqua Computer presents a four-channel PWM fan controller with an outstanding range of functions that are equally suitable for water-cooled and air-cooled computers. An RGBpx effect controller for 64 addressable LEDs is also integrated. The most important functions at a glance Programmable four-channel fan controller Four fan outputs with up to 25 watts power per channel and speed monitoring All fan outputs with 4-pin plug and PWM-signal adjustable All fan outputs can be switched off completely Control parameters can be set in a variety of ways Four temperature sensor inputs Eight further measured values can be transferred from the PC to the QUADRO via aquasuite software Flow sensor input RGBpx LED output for LED stripes and fans with individually addressable LEDs USB 2.0 interface aquasuite software for convenient adjustment, evaluation, and visualization of all sensor data aquabus interface: When connected to an aquaero, the fan outputs can be controlled via the aquaero Technical details Dimensions without inserted cable: approx. 54 x 49 x 17 mm Supply voltage: 5V, 12V Fan output power: maximum 25 watts per channel PWM control signal: 0 - 100 %, resolution 0.1 % Scope of delivery QUADRO Controller One temperature sensor, length approx. 70 cmy internal USB connection cable, length approx. 100 cm Mounting material Model: 53256
UPC NO:4260473311898
SKU:ADIB07FQH3NC6
