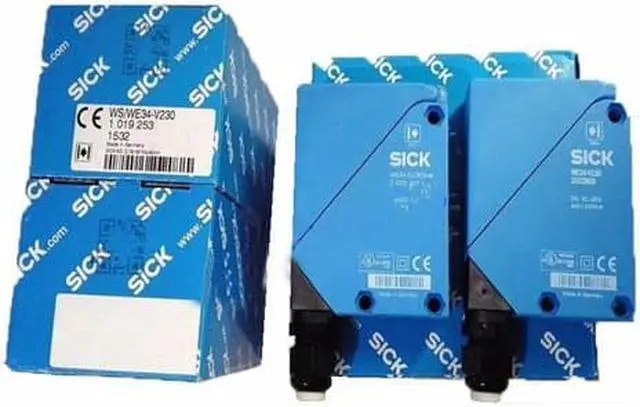

SICK WS/WE34-R240 Through-Beam Photoelectric Sensor New

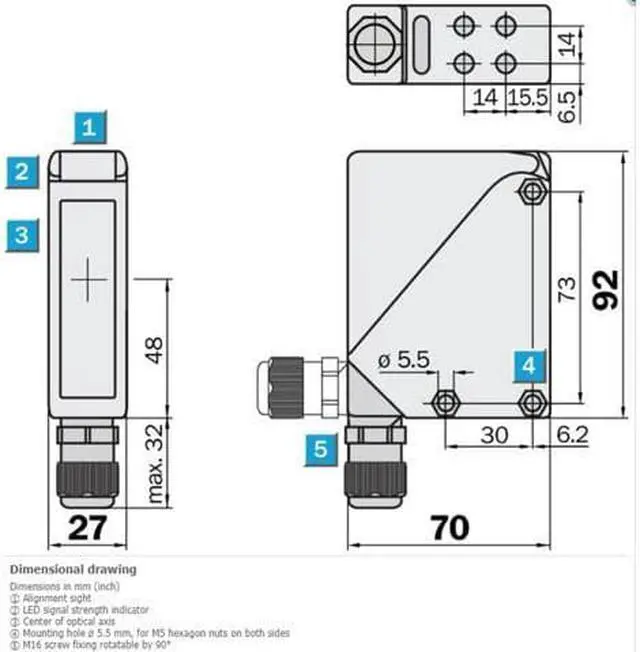

SICK WS/WE34-R240 Through-Beam Photoelectric Sensor New Features Sensor/ detection principle Through-beam photoelectric sensor Dimensions (W x H x D) 27 mm x 92 mm x 70 mm Housing design (light emission) Rectangular Sensing range max. 0 m... 60 m Sensing range 0 m... 60 m Type of light Visible red light Light source LED 1) Light spot size (distance) Ø 700 mm (50 m) Angle of dispersion Approx. 1° Wave length 660 nm Adjustment Potentiometer Time type Off delay On delay Adjustable Delay time Adjustable via time delay selector switch, 0.5 s, 10 s Mechanics/electronics Supply voltage 20 V AC/DC.

.. 250 V AC/DC 1) Power consumption < 2 VA Switching output Relay, electrically isolated 2) Output function Change-over contacts Switching mode Light switching, Dark switching 2) Switching mode selector Selectable via light/dark selector Switching current (switching voltage) 4 A (250 V AC) 4 A (24 V DC) Response time = 10 ms Switching frequency 10 Hz 3) Angle of reception Approx. 2.5 ° Connection type Terminal connection with M16 gland Circuit protection A 4) C 5) Protection class II 6) Weight 280 g Housing material Plastic, ABS Enclosure rating IP67 Usage category AC-15, DC-13, according to EN 60947-1 Ambient operating temperature –40 °C.

.. +60 °C Ambient storage temperature –40 °C... +75 °C UL File No. NRKH. E181493 & NRKH7. E181493 Part number of individual components 2022816 WE34-R240 2022824 WS34-U240
