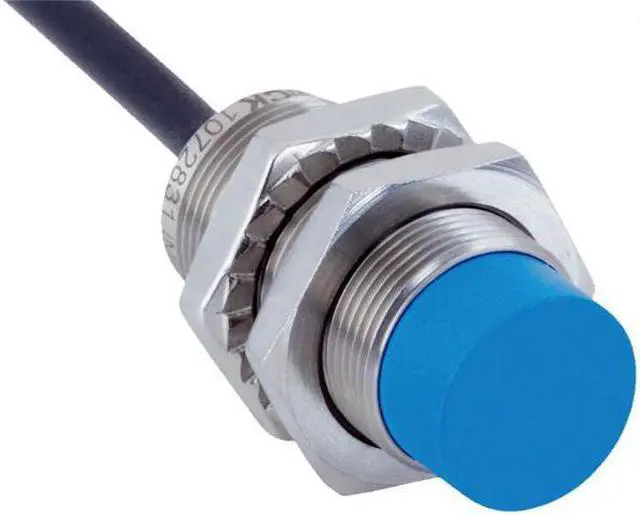

SICK IMB18-12NPSVU2K Inductive Proximity Sensors,PNP,New

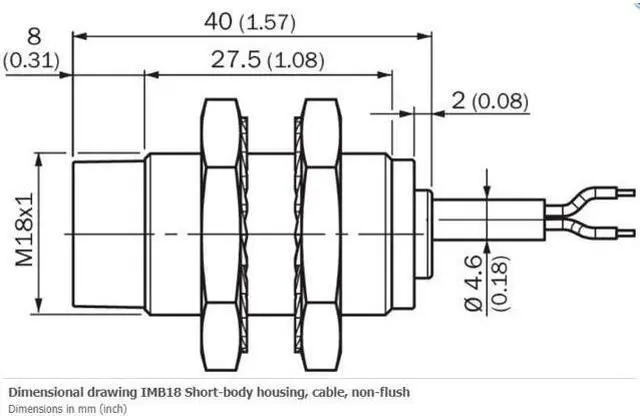

SICK IMB18-12NPSVU2K Inductive Proximity Sensors, PNP, New Features Housing Cylindrical thread design Housing Short-body Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 12 mm Safe sensing range Sa 9.72 mm Installation type Non-flush Switching frequency 1, 000 Hz Connection type Cable, 3-wire, 2 m Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP68 1) IP69K 2) Mechanics/electronics Supply voltage 10 V DC... 30 V DC Ripple = 10 % Voltage drop = 2 V 1) Current consumption 10 mA 2) Hysteresis 3 %.

.. 20 % Reproducibility = 2 % 3) 4) Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia = 200 mA Cable material PUR Short-circuit protection? Reverse polarity protection? Power-up pulse protection? Shock and vibration resistance 100 g / 2 ms / 500 cycles, 150 g / 1 Mio cycles, 10 Hz... 55 Hz / 1 mm, 55 Hz... 500 Hz / 60 g Ambient operating temperature –40 °C... +100 °C Housing material Stainless steel, V2A ( 1.4305 ) Sensing face material Plastic, LCP Housing length 40 mm Thread length 28 mm Tightening torque, max.

Typ. 90 Nm 5) Protection class II 6)
