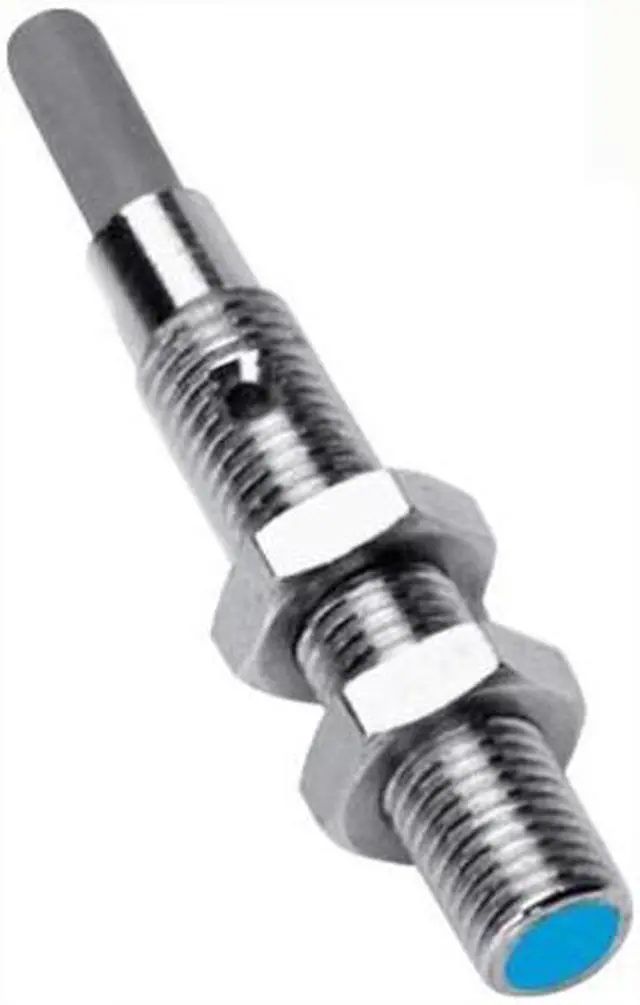

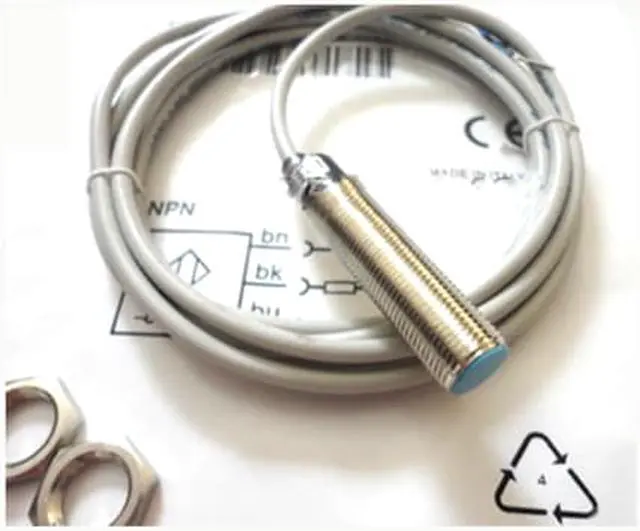

SICK IM04-0B6NS-ZU1 Inductive proximity sensors New

Features Housing Cylindrical thread design Housing Standard design Thread size M4 x 0.5 Diameter Ø 4 mm Sensing range Sn 0.6 mm Safe sensing range Sa 0.486 mm Installation type Flush Switching frequency 5, 000 Hz Connection type Cable, 3-wire, 2 m 1) Switching output NPN Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 2) MECHANICS/ELECTRONICS Mechanics/electronics Supply voltage 10 V DC... 30 V DC Ripple = 20 % 1) Voltage drop = 2 V 2) Current consumption 10 mA 3) Time delay before availability = 10 ms Hysteresis 1 %.

.. 10 % Reproducibility = 2 % 4) Temperature drift (of Sr) = 10 % EMC EN 60947-5-2
IEC 61000-4-2: (Testlevel 2)

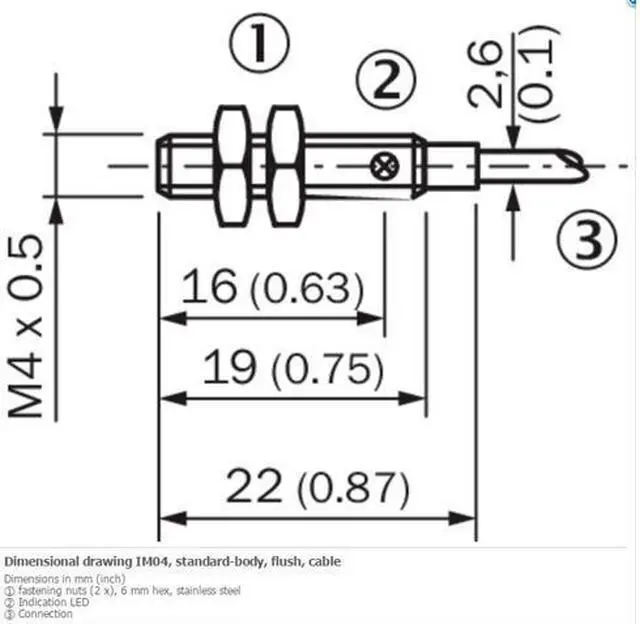

IEC 61000-4-4: (Testlevel 2) Continuous current Ia = 100 mA Cable material PUR Conductor size 0.06 mm² Cable diameter Ø 2.6 mm Short-circuit protection? Reverse polarity protection? Shock and vibration resistance 30 g, 11 ms / 10... 55 Hz, 1 mm Ambient operating temperature –25 °C... +70 °C Housing material Stainless steel, Stainless steel (V2A, 304) Sensing face material Plastic, Plastic Housing length 22 mm Thread length 19 mm Tightening torque, max. = 0.8 Nm UL File No. NRKH. E191603
