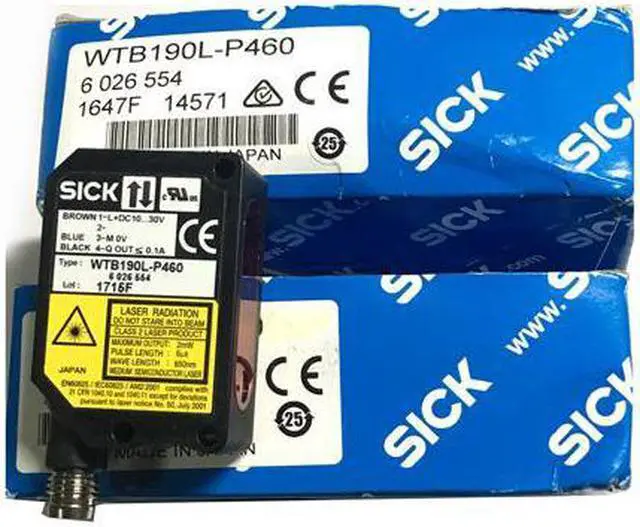

SICK WTB190L-P460 Photoelectric Proximity Sensor PNP,New
- SICK WTB190L-P460 Photoelectric Proximity Sensor PNP,New
+
+
Overview
Specs
Reviews

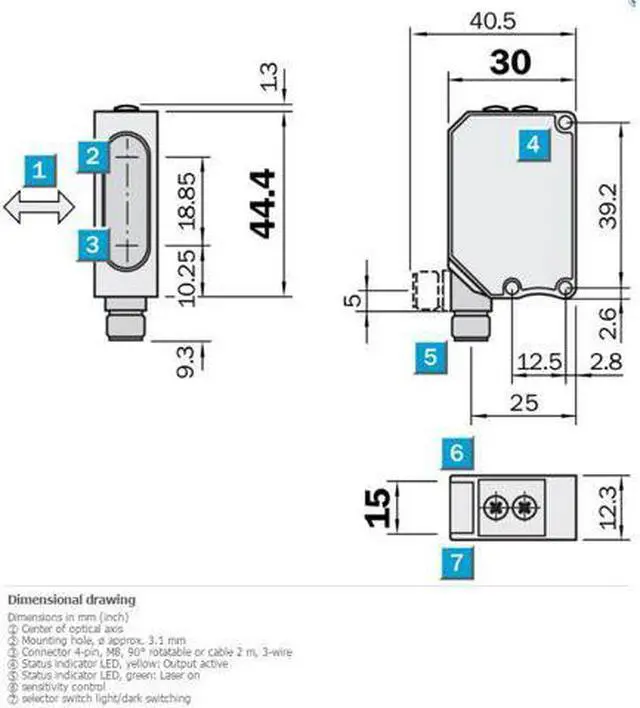

FEATURES Sensor/ detection principle Photoelectric proximity sensor, Background suppression Dimensions (W x H x D) 15 mm x 44.4 mm x 30 mm Housing design (light emission) Rectangular Sensing range max. 100 mm... 300 mm 1) Type of light Visible red light Light source Laser Light spot size (distance) Ø 2.5 mm (200 mm) Laser class 2 Adjustment None MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple ± 10 % 2) Power consumption 40 mA 3) Switching output PNP Switching mode Light/dark switching Switching mode selector Selectable via light/dark rotary switch Output current Imax.
< 100 mA Response time 0.7 ms 4) Switching frequency 700 Hz 5) Connection type Male connector M8, 4-pin Circuit protection A 6) D 7) Protection class III 8) Weight 120 g Housing material Plastic, ABS Optics material Plastic, PMMA Tightening torque, max. 0.5 Nm Enclosure rating IP67 Ambient operating temperature –10 °C... +40 °C Ambient storage temperature –20 °C... +60 °C
< 100 mA Response time 0.7 ms 4) Switching frequency 700 Hz 5) Connection type Male connector M8, 4-pin Circuit protection A 6) D 7) Protection class III 8) Weight 120 g Housing material Plastic, ABS Optics material Plastic, PMMA Tightening torque, max. 0.5 Nm Enclosure rating IP67 Ambient operating temperature –10 °C... +40 °C Ambient storage temperature –20 °C... +60 °C
