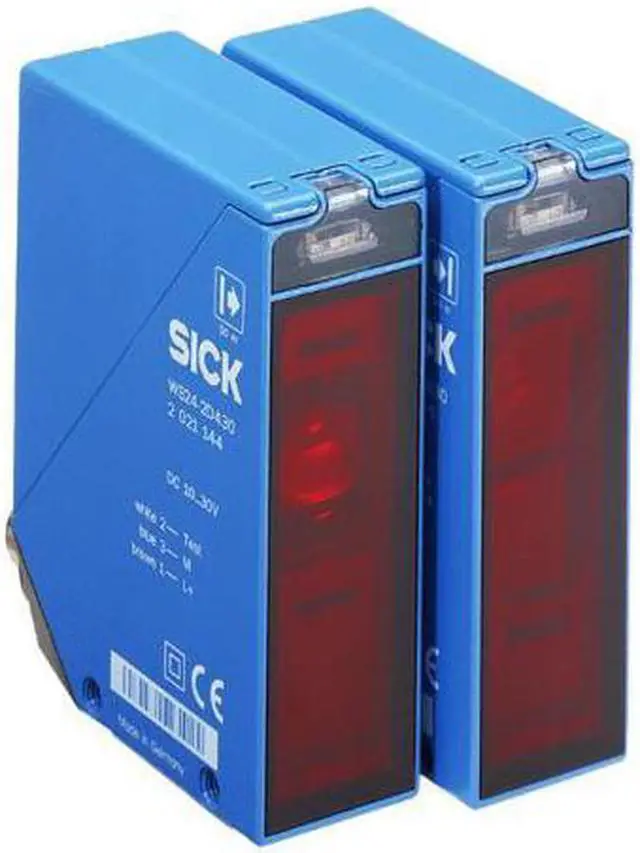

SICK WS/WE24-2B430 Compact Photoelectric Sensors ,NPN ,PNP,New

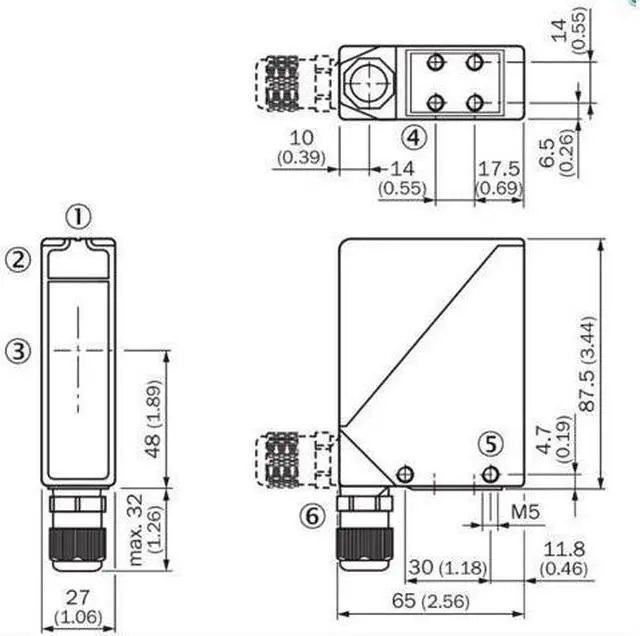

FEATURES Sensor/ detection principle Through-beam photoelectric sensor Dimensions (W x H x D) 27 mm x 87.5 mm x 65 mm Housing design (light emission) Rectangular Sensing range max. 0 m... 60 m Sensing range 0 m... 50 m Type of light Visible red light Light source LED 1) Light spot size (distance) Ø 700 mm (50 m) Angle of dispersion Approx. 1° Adjustment Potentiometer MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple < 5 Vpp 2) Power consumption, sender 50 mA 3) Power consumption, receiver 40 mA 3) Switching output NPN PNP Switching mode Light/dark switching Switching mode selector Selectable via PNP/NPN selector, selectable via light/dark selector Output current Imax.

100 mA Response time = 500 µs 4) Switching frequency 1, 000 Hz 5) Angle of reception Approx. 2.5 ° Connection type Male connector M12, 4-pin Circuit protection A 6) C 7) D 8) Protection class II 9) Weight 660 g Housing material Metal, Zinc diecast Optics material Plastic, PMMA Enclosure rating IP69K Test input sender off TE to 0 V Ambient operating temperature –40 °C... +60 °C Ambient storage temperature –40 °C... +75 °C UL File No. NRKH. E181493 & NRKH7. E181493 Part number of individual components 2021144 WS24-2D430 2021145 WE24-2B430
