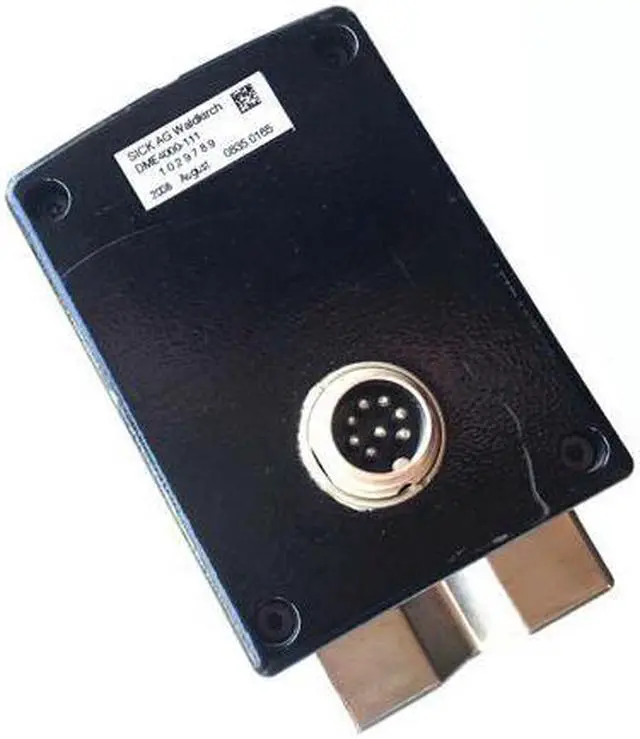

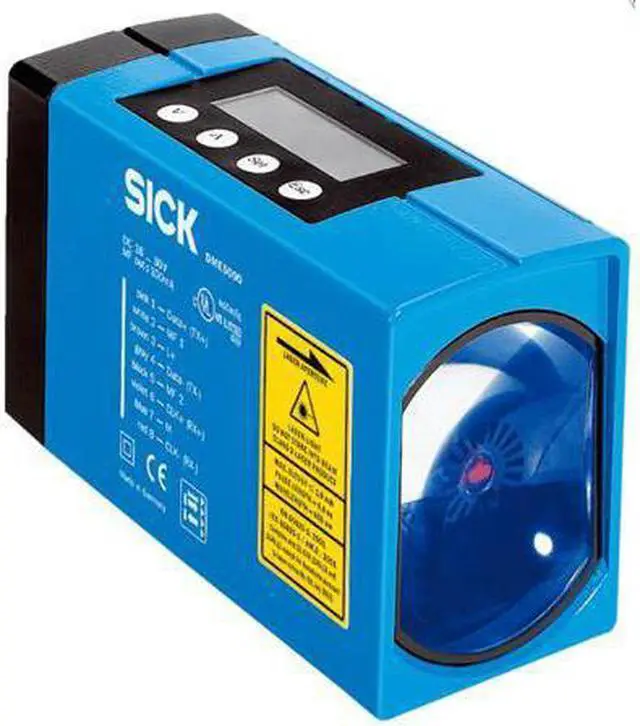

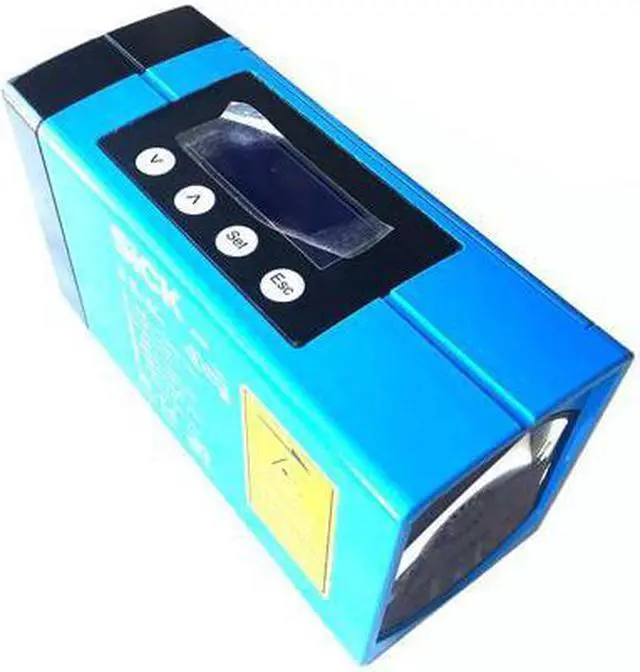

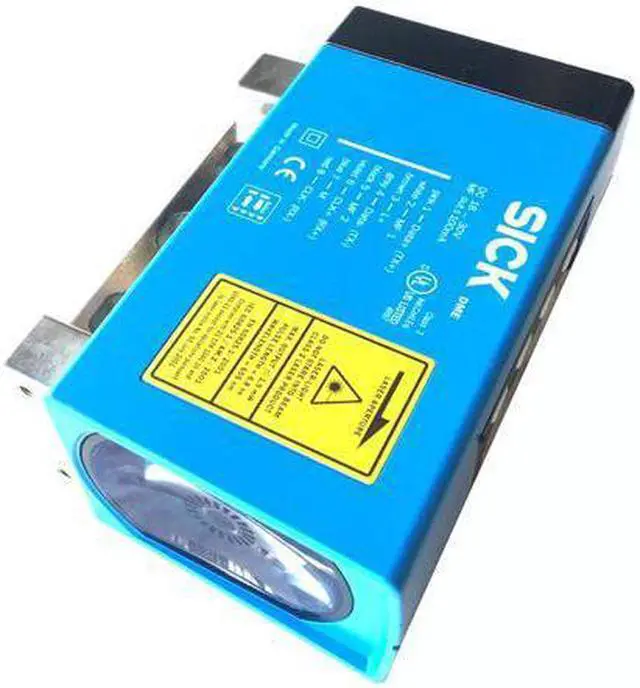

SICK DME4000-111 Long range Distance Sensors New
- SICK DME4000-111 Long range Distance Sensors New
+
+
Overview
Specs
Reviews
PERFORMANCE Measuring range 0.15 m... 50 m, on reflective tape "Diamond Grade" Target Reflector Resolution 0.05 mm... 5 mm Repeatability 1 mm 1) 2) Accuracy ± 3 mm Response time 6 ms Output time 1 ms Light source Laser, red 3) Laser class 2, complies with 21 CFR 1040.10 and 1040.11 except for the tolerance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825- 1:2014, EN 60825- 1:2014 ) Typ. light spot size (distance) 130 mm (at 70 m) 270 mm (at 150 m) 360 mm (at 220 m) Max.
movement speed 10 m/s INTERFACES MECHANICS/ELECTRONICS Supply voltage Vs DC 18 V... 30 V, limit values Ripple < 5 Vpp 1) Initialization time 1.5 s 2) Connection type Male connector, M16, 8-pin Indication Display Weight Approx. 1, 650 g Output current IA = 100 mA 3) Current consumption At 24 V DC < 250 mA Enclosure rating IP65 Protection class II 4)
movement speed 10 m/s INTERFACES MECHANICS/ELECTRONICS Supply voltage Vs DC 18 V... 30 V, limit values Ripple < 5 Vpp 1) Initialization time 1.5 s 2) Connection type Male connector, M16, 8-pin Indication Display Weight Approx. 1, 650 g Output current IA = 100 mA 3) Current consumption At 24 V DC < 250 mA Enclosure rating IP65 Protection class II 4)
