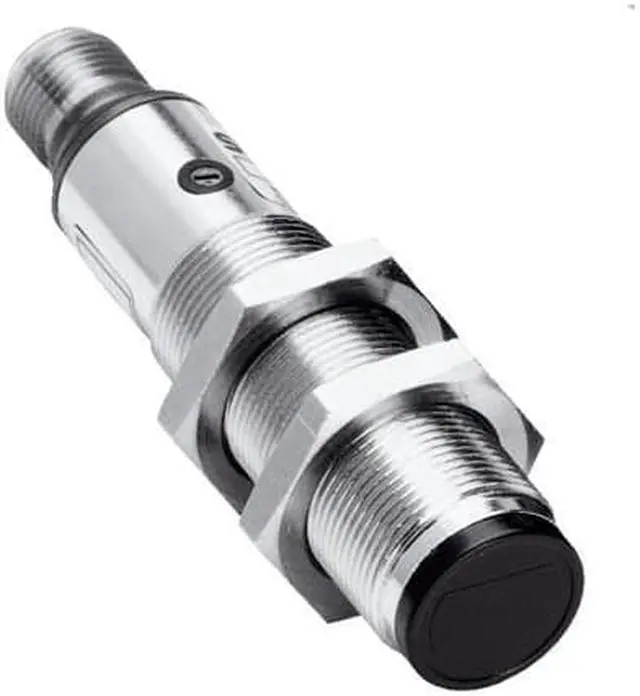

Main image of SICK VL18-3E3140 Photoelectric retro-reflective sensor ,NPN,New

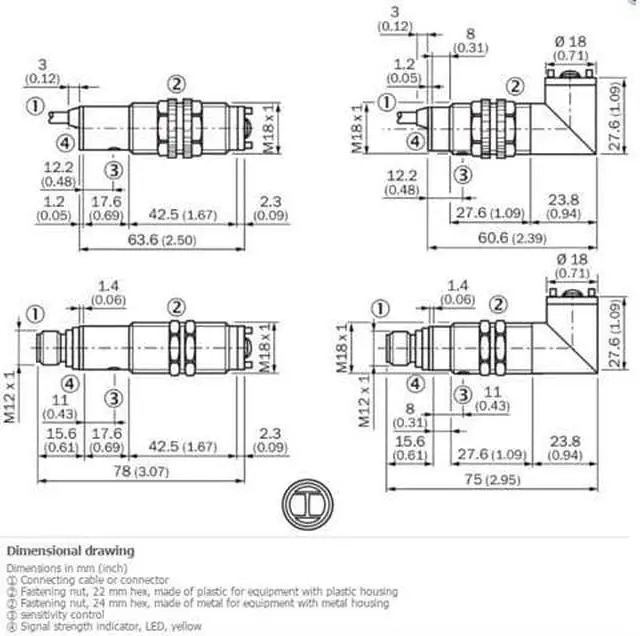

Alt view image 2 of 2 - SICK VL18-3E3140 Photoelectric retro-reflective sensor ,NPN,New

Shop All Sick Products | Visit Tech Frontier Electronics Store

SICK VL18-3E3140 Photoelectric retro-reflective sensor ,NPN,New

SICK VL18-3E3140 Photoelectric retro-reflective sensor ,NPN,New

Overview

Specs

Reviews

FEATURES Sensor/ detection principle Photoelectric retro-reflective sensor Housing design (light emission) Cylindrical Housing length 78 mm Thread diameter (housing) M18 x 1 Optical axis Axial Sensing range max. 0.05 m... 3.7 m 1) Sensing range 0.05 m... 3 m 1) Type of light Visible red light Light source LED 2) Light spot size (distance) Ø 150 mm (3 m) Angle of dispersion Approx. 2.8 ° Adjustment None MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple = 10 % 2) Power consumption 30 mA 3) Switching output NPN Switching mode Light switching Output current Imax.

100 mA Response time = 2 ms 4) Switching frequency 250 Hz 5) Connection type Male connector M12, 4-pin Circuit protection A 6) B 7) C 8) D 9) Protection class III Weight 120 g Polarisation filter? Housing material Metal, Nickel-plated brass Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +70 °C UL File No. NMFT2. E175606
