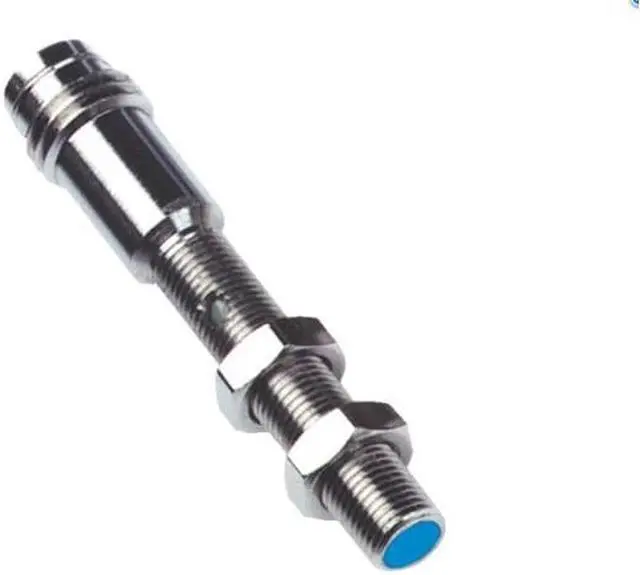

SICK IM05-0B8PS-ZT1Inductive proximity sensors ,PNP,New

Features Housing Cylindrical thread design Housing Standard design Thread size M5 x 0.5 Diameter Ø 5 mm Sensing range Sn 0.8 mm Safe sensing range Sa 0.648 mm Installation type Flush Switching frequency 5, 000 Hz Connection type Connector M8, 3-pin Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 1) MECHANICS/ELECTRONICS Mechanics/electronics Supply voltage 10 V DC... 30 V DC Ripple = 20 % 1) Voltage drop = 2 V 2) Current consumption 10 mA 3) Time delay before availability = 10 ms Hysteresis 1 %... 10 % Reproducibility = 1.5 % 4) Temperature drift (of Sr) = 10 % EMC EN 60947-5-2
IEC 61000-4-2: (Testlevel 2)
IEC 61000-4-4: (Testlevel 2) Short-circuit protection? Reverse polarity protection? Shock and vibration resistance 30 g, 11 ms / 10... 55 Hz, 1 mm Ambient operating temperature –25 °C... +70 °C Housing material Stainless steel, Stainless steel (V2A, 304) Sensing face material Plastic, Plastic Housing length 38 mm Thread length 22 mm Tightening torque, max. 1.5 Nm UL File No. NRKH. E191603
