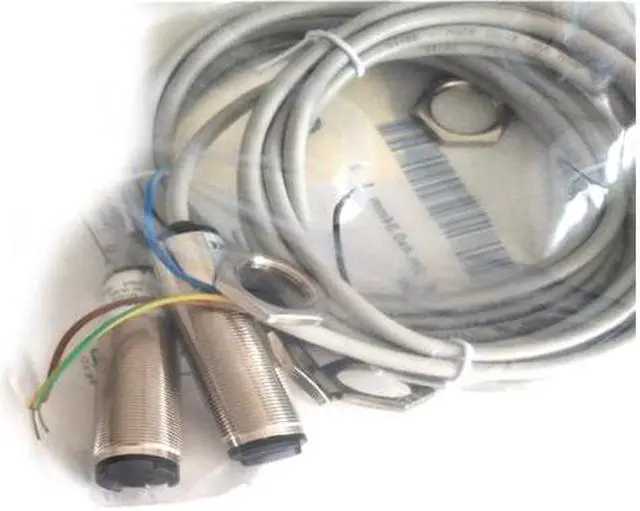

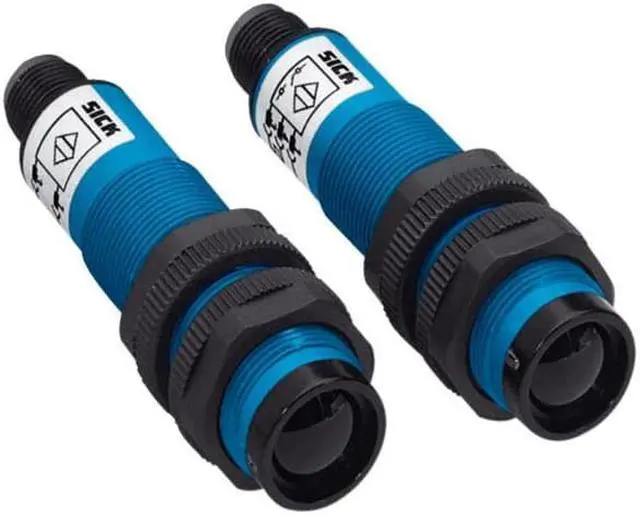

SICK VS/VE18-2T1430 Through-beam photoelectric sensor ,New
Limited time offer, ends 08/31 By Tech Frontier Electronics
- SICK VS/VE18-2T1430 Through-beam photoelectric sensor ,New
+
+
Overview
Specs
Reviews
FEATURES Sensor/ detection principle Through-beam photoelectric sensor Housing design (light emission) Cylindrical Housing length 92 mm Thread diameter (housing) M18 x 1 Optical axis Axial Sensing range max. 0 m... 22 m Sensing range 0 m... 16 m Type of light Infrared light Light source LED 1) Light spot size (distance) Ø 800 mm (16 m) Angle of dispersion 2.9 ° Adjustment None MECHANICS/ELECTRONICS Supply voltage 20 V AC... 253 V AC 1) Mains frequency 50 Hz, 60 Hz Power consumption 45 mA 2) Switching output TRIAC Switching mode Light switching Output current Imax.
300 mA 3) Response time = 20 ms 4) Switching frequency 25 Hz 5) Connection type Male connector M12, 4-pin Circuit protection C 6) Protection class III Weight 60 g Housing material Plastic, PBT/PC Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +70 °C UL File No. NMFT2. E175606
300 mA 3) Response time = 20 ms 4) Switching frequency 25 Hz 5) Connection type Male connector M12, 4-pin Circuit protection C 6) Protection class III Weight 60 g Housing material Plastic, PBT/PC Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +70 °C UL File No. NMFT2. E175606
