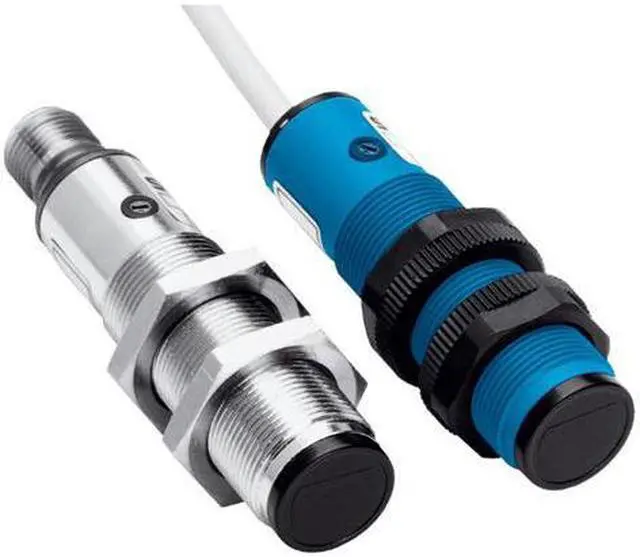

SICK VTF18-4N1912 Photoelectric proximity sensor ,NPN ,New

SICK VTF18-4N1912 Photoelectric proximity sensor ,NPN ,New

Overview

Specs

Reviews

FEATURES Sensor/ detection principle Photoelectric proximity sensor Dimensions (W x H x D) 60.6 mm Housing design (light emission) Cylindrical, angled Sensing range max. 3 mm... 100 mm 1) Sensing range 3 mm... 90 mm 1) Type of light Infrared light Light source LED Adjustment Potentiometer MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC Ripple = 10 % Power consumption = 30 mA 1) Switching output NPN Switching mode Light/dark switching Switching mode selector Selectable via L/D control cable Response time = 2 ms 2) Connection type Cable, 2 m 3) Cable material PVC Conductor cross-section 0.14 mm² Cable diameter Ø 5 mm Housing material Plastic, Plastic, Plastic Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C.

.. +70 °C Ambient storage temperature –25 °C... +70 °C UL File No. NMFT2. E175606
