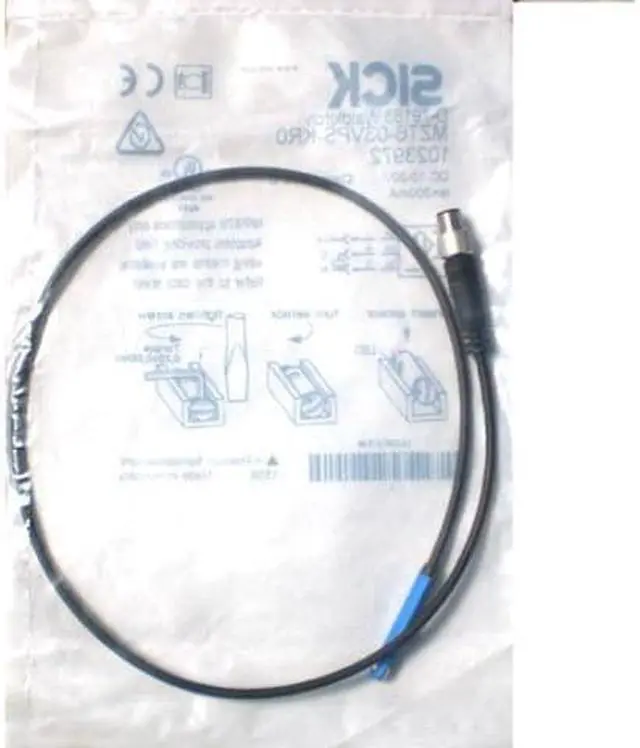

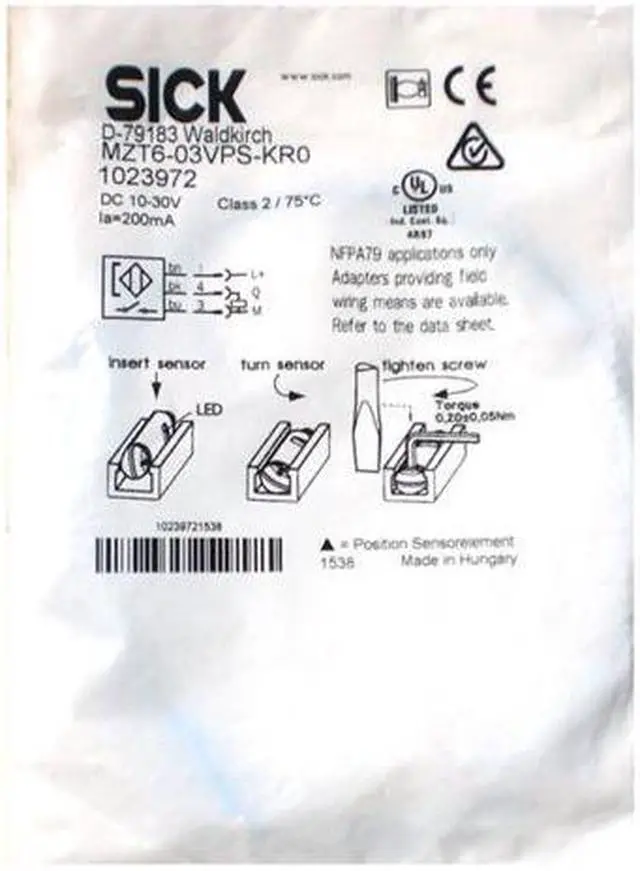

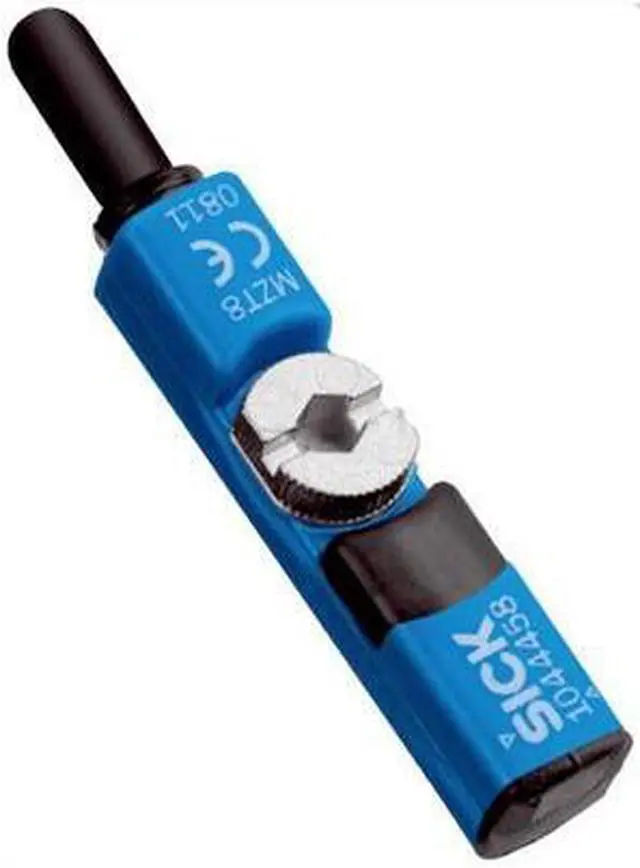

SICK MZT6-03VPS-KR0 Sensors for T-slot Cylinders,New

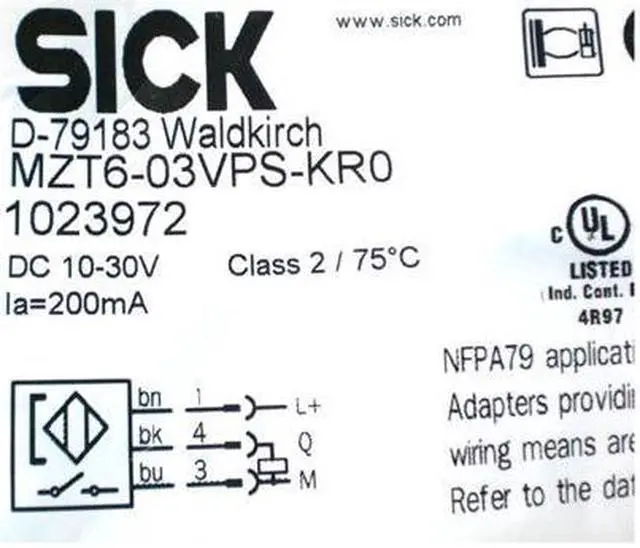

Features Cylinder type T-slot Cylinder types with adapter Profile cylinder Tie rod cylinder Round body cylinder Dovetail groove cylinder SMC rail CDQ2 SMC rail ECDQ2 Housing length 24 mm Switching output PNP Switching frequency 1, 000 Hz Output function NO Electrical wiring DC 3-wire Enclosure rating IP68 1) Cable outlet Axial Mechanics/electronics Supply voltage 10 V DC... 30 V DC Power consumption 10 mA 1) Voltage drop = 2.2 V Continuous current Ia = 200 mA Protection class III Time delay before availability 25 ms Response sensitivity, typ. 2.6 mT Overrun distance, typ.

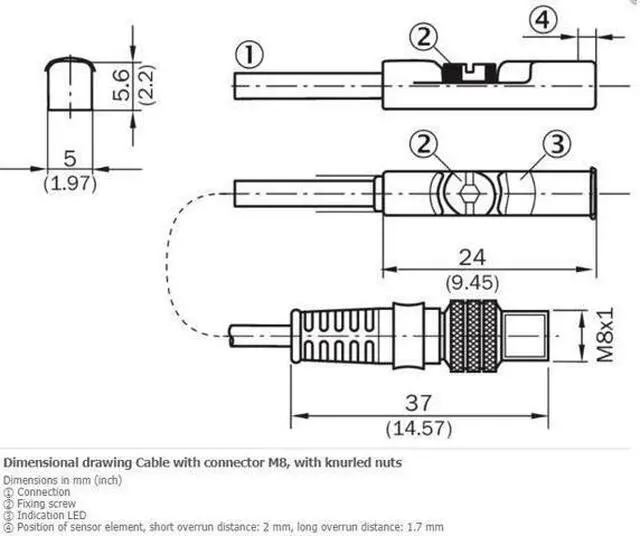

3 mm Hysteresis, typ. > 0.5 mT Reproducibility = 0.1 mT 2) Reverse polarity protection? Short-circuit protection? Power-up pulse protection? Ambient operating temperature –30 °C... +80 °C Shock and vibration resistance 30 g, 11 ms / 10... 55 Hz, 1 mm EMC According to EN 60947-5-2 Housing material Plastic, PA12 Connection type Cable with connector M8, 3-pin, with knurled nuts, 0.5 m Cable material PUR Conductor cross-section 0.14 mm²
