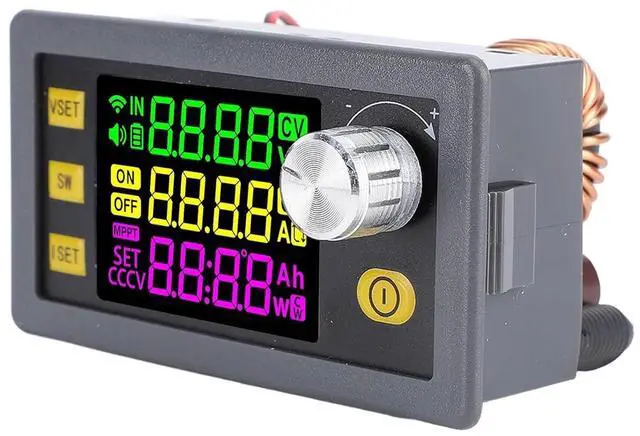

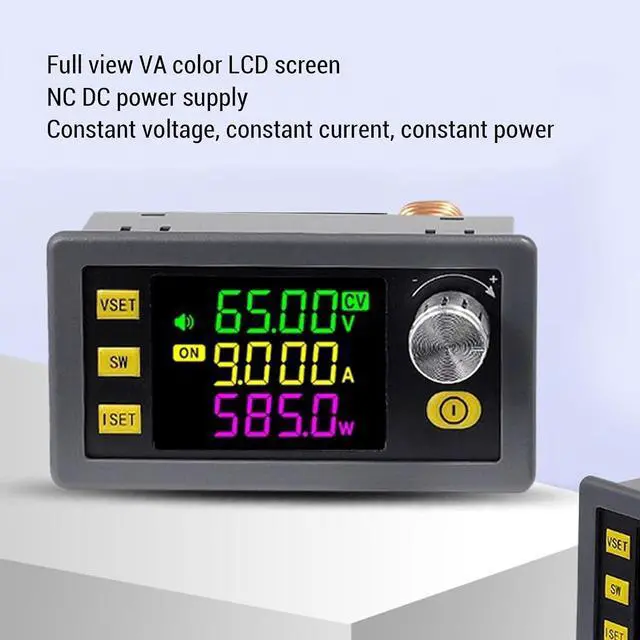

Adjustable Voltage Regulator, XY-6506 12-72V DC Voltage Regulator Power Supply, 65V 6A 390W Output, DC Converter Voltage Regulator with LED Display, MPPT Solar Charging
- VARIABLE POWER SUPPLY: Adjustable voltage regulator input voltage range DC 12-72V, output voltage range DC 0-65V, maximum output current 6A, maximum output power 390W
- MEMORY DATA: DC adjustable voltage regulator allow 10 data groups of M0-M9 to be stored. Default will be stored in data group M0 and M1/M2 data group can be quickly called up
- WIDE APPLICATION: Adjustable voltage converter is compact and powerful, on the go variable power supply or LED driver
- laboratory power supply

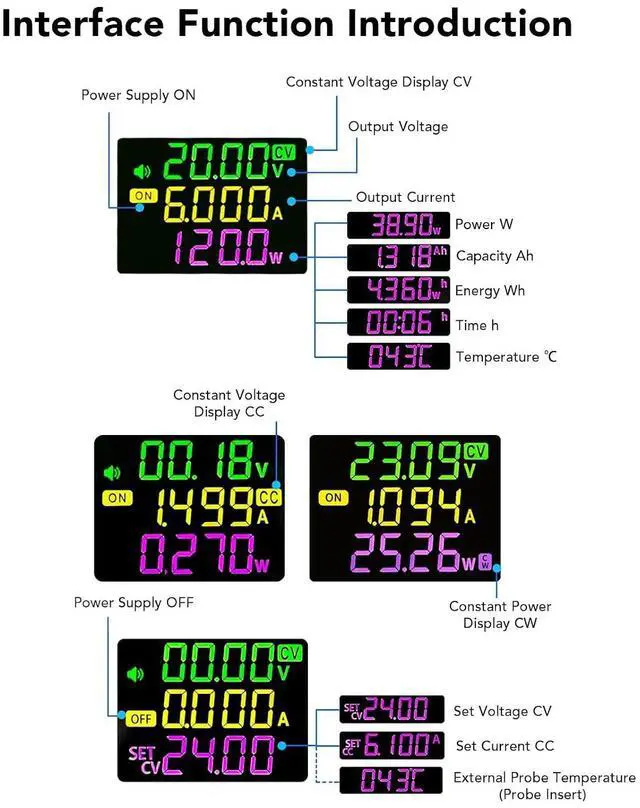

- DIGITAL DISPLAY: DC power supply panel display input or out voltage, current, temperature, power, electric capacity, electric quantity, running time, voltage and current curve, system and power parameters

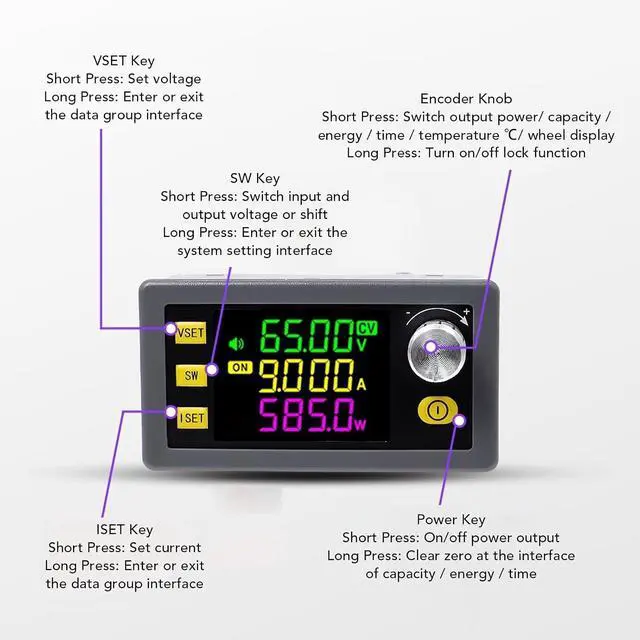

- EASY TO USE: Constant current volt module allows to set volts and limit the current, power on off and accurate voltage setting return after power down
+
+
Overview
Specs
Reviews
Spec: Item
Type: Adjustable
Voltage Regulator Model: XY-6506
Input Voltage: 12.00 - 72.00V
Output Voltage: 0- 65.00V
Output Current: 0- 6.000A
Voltage Accuracy: ± 0.5 %+1 word
Output Power: 390W
Current Accuracy: ± 0.5 %+3 words
Voltage Resolution: 0.01V
Current Resolution: 0.001A
Data Storage Groups: 10 Number of
Buttons: 5

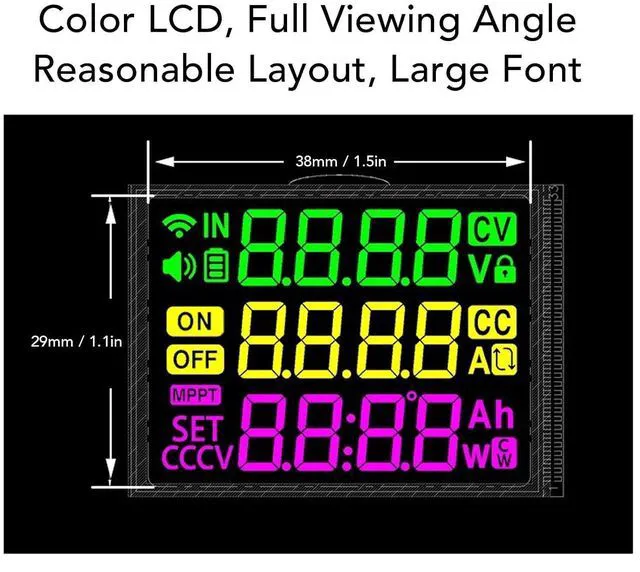

Screen Size: Larger than 1.8 in LCD, Viewing
Range: Approx. 38 x 29mm / 1.5 x 1.14 in
Buzzer: Yes
Conversion Efficiency: About
95%: Yes

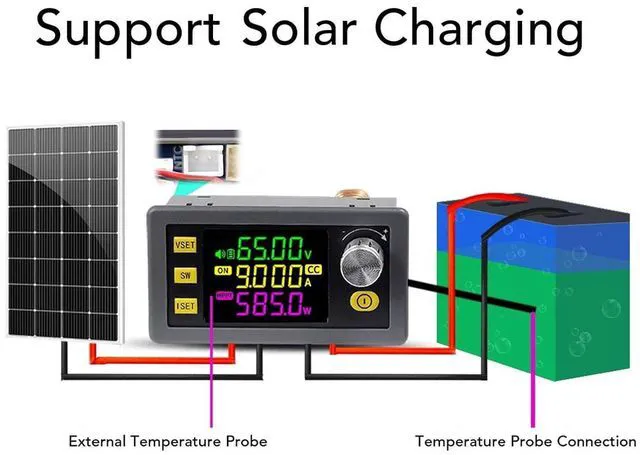

MPPT Function: Supports MPPT solar charging
Output Waves Typical Value: Vpp-150mv How to
Use: Take out directly for use packing list: 1 x DC Regulated Power Supply
Type: Adjustable
Voltage Regulator Model: XY-6506
Input Voltage: 12.00 - 72.00V
Output Voltage: 0- 65.00V
Output Current: 0- 6.000A
Voltage Accuracy: ± 0.5 %+1 word
Output Power: 390W
Current Accuracy: ± 0.5 %+3 words
Voltage Resolution: 0.01V
Current Resolution: 0.001A
Data Storage Groups: 10 Number of
Buttons: 5
Screen Size: Larger than 1.8 in LCD, Viewing
Range: Approx. 38 x 29mm / 1.5 x 1.14 in
Buzzer: Yes
Conversion Efficiency: About
95%: Yes
MPPT Function: Supports MPPT solar charging
Output Waves Typical Value: Vpp-150mv How to
Use: Take out directly for use packing list: 1 x DC Regulated Power Supply
