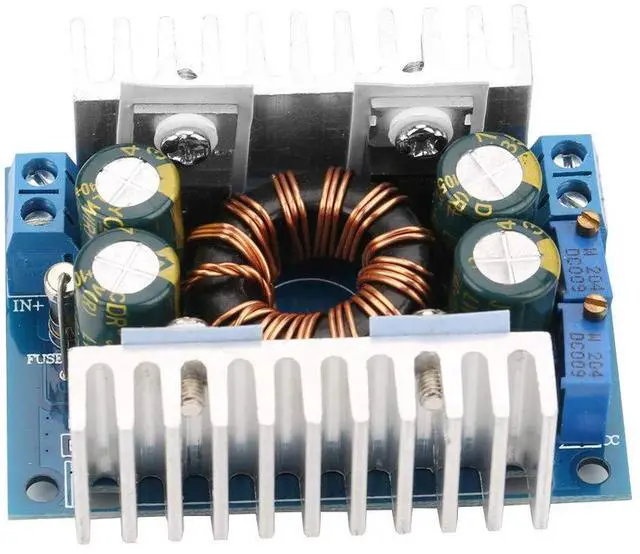

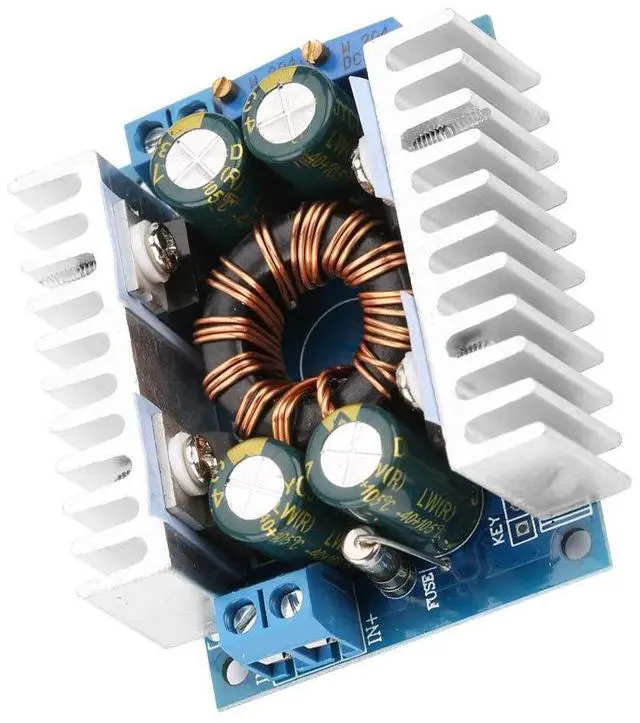

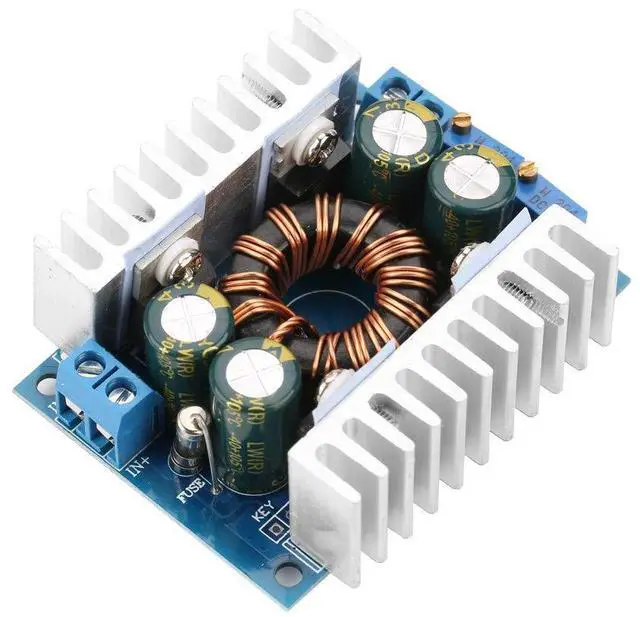

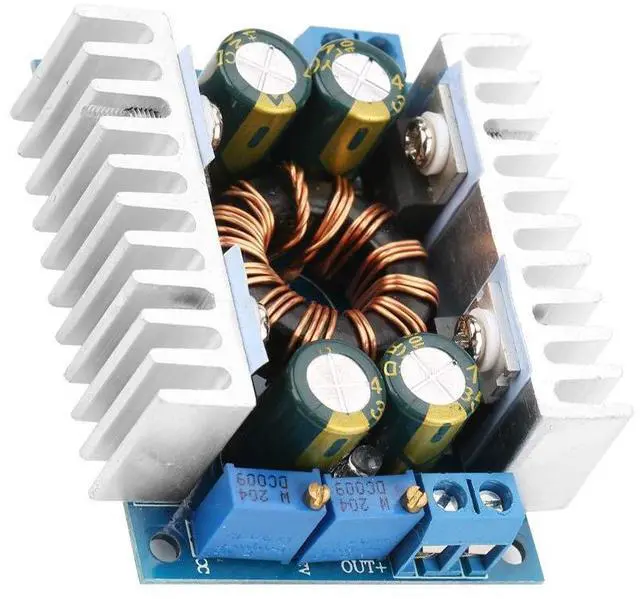

Voltage Converter Module DC 5-30V to 1.25-30V,Automatic Step Up/Down Converter,Boost/Voltage Regulator,Regulated Converter Module,Over Current, Short Circuit, Over Temperature

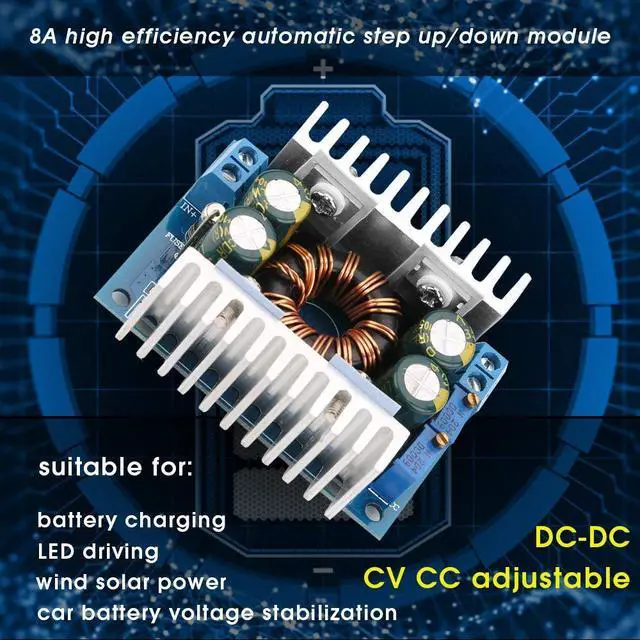

- Regulated power converter module - This is a non-isolated DC regulated power converter module with long service life.High power and stable output, it converts 5-30VDC to 1.25-30VDC.
- - components ensures high conversion efficiency, up to 93%.Designed with two heat sinks for better heat dissipation.It supports over current, short circuit, over temperature .
- Specification - Input Voltage: DC5-30VInput Current: 8A, () 10A, (within 6A for long-term work)Output Voltage: 1.25-30V continuously adjustableOutput Current: 10A () (long-term cooling within 5A, please reduce rated value when output high voltage), enhance heat dissipation or reduce rated value when module temperature is over 65Constant Current Output Range: 0.2-10A
- Note -If reverse input is required, connect a diode in series with the input. Wiring method: terminal output, (input is IN, output is OUT)
- Product - Voltage Converter Module DC 5-30V to 1.25-30V,Automatic Step Up/Down Converter,Boost/ Voltage Regula
+
+
Overview
Specs
Reviews
Specification:
Type: Non-isolated synchronous rectification automatically step up/down module
Input Voltage: DC5-30V
Input Current: 8A, () 10A, (within 6A for long-term work)
Quiescent Current: 4mA (there will be deviation when working voltage is different)
Output Voltage: 1.25 -30V continuously adjustable
Output Current: 10A () (long-term cooling within 5A, please reduce rated value when output high voltage), enhance heat dissipation or reduce rated value when module temperature is over 65? Constant
Current Output Range: 0.2 -10A
Operating Temperature: -40? to +85?
Frequency: 150KHz
Conversion Efficiency: Typical 91%, maximum 93%
Over Current: Yes
Short Circuit: Yes (current limiting )
Over Temperature: Yes (automatic reduce output voltage)
Reverse Input: No, please connect to a diode in series at input if needed
Output Back: Yes, do not need to add the diode when used for charging.

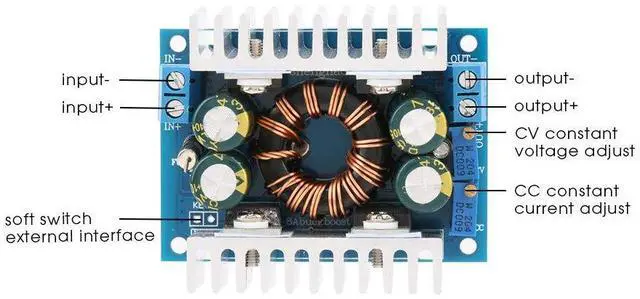

Wiring Method: Terminal block output, (IN is input, OUT is output)
Weight: 70g / 2.5 oz (approx. )
Package list: 1 * Module
Type: Non-isolated synchronous rectification automatically step up/down module
Input Voltage: DC5-30V
Input Current: 8A, () 10A, (within 6A for long-term work)
Quiescent Current: 4mA (there will be deviation when working voltage is different)
Output Voltage: 1.25 -30V continuously adjustable
Output Current: 10A () (long-term cooling within 5A, please reduce rated value when output high voltage), enhance heat dissipation or reduce rated value when module temperature is over 65? Constant
Current Output Range: 0.2 -10A
Operating Temperature: -40? to +85?
Frequency: 150KHz
Conversion Efficiency: Typical 91%, maximum 93%
Over Current: Yes
Short Circuit: Yes (current limiting )
Over Temperature: Yes (automatic reduce output voltage)
Reverse Input: No, please connect to a diode in series at input if needed
Output Back: Yes, do not need to add the diode when used for charging.
Wiring Method: Terminal block output, (IN is input, OUT is output)
Weight: 70g / 2.5 oz (approx. )
Package list: 1 * Module
