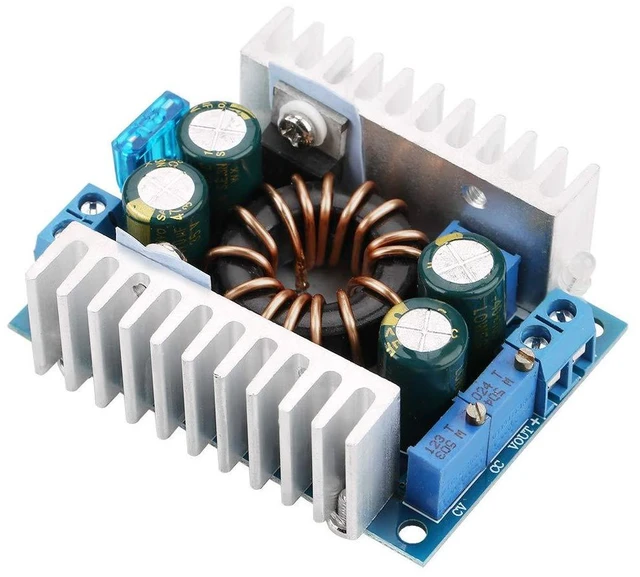

Step Up Voltage Converter, Stable Output High Conversion Efficiency Boost Module for Battery Pack Charging

1. This is a non-isolated DC power converter module with long service life. 2. and stable output, it converts 10-32VDC to 12-60VDC. 3. components ensures high conversion efficiency, up to 95%.

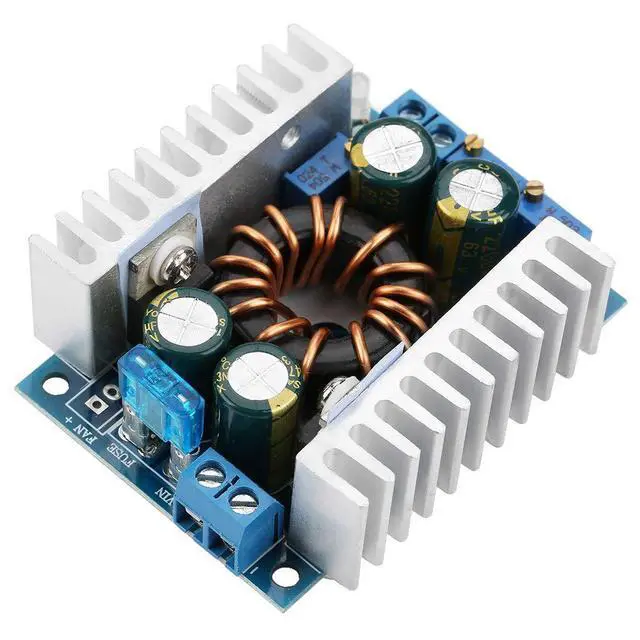

4. Designed with large heat sinks for better heat dissipation.

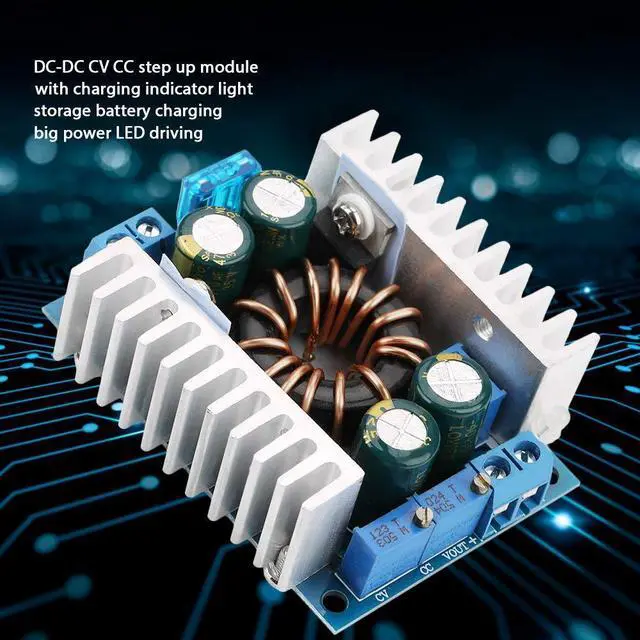

5. Widely use for solar power voltage stabilization charging, battery pack charging, large power LED driving, etc.
Specification:
Features: This is a non-isolated DC power converter module with long service life. and stable output, it converts 10-32VDC to 12-60VDC. components ensures high conversion efficiency, up to 95%. Designed with large heat sinks for better heat dissipation. Widely use for solar power voltage stabilization charging, battery pack charging, large power LED driving, etc.
Specification:
Type: Non-isolated step up module (BOOST)
Input Voltage: 10~32VDC
Input Current: 16A (. ); if more than 8A, please enhance heat dissipation
Quiescent Current: 15mA(tested when converting 12V to 20V; it will increase when output voltage is higher)
Output Voltage: 10~60VDC continuously adjustable (Applies only to where the input voltage is less than the output voltage, can not step down voltage)
Output Current: 8A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 4A) Constant
Current Output Range: 0.3 ~8A
Turn Lights Adjusting Range: 0.3 ~8A
Output Power: cooling 90WMAX; Enhanced cooling 150WMAX
Operating Temperature: -40? to 85? (if temperature is too high, please enhance heat dissipation)
Frequency: 150KHz
Conversion Efficiency: 95% (Efficiency is related to input/output voltage, current and voltage difference)
Short Circuit: Yes (input 15A )
Reverse Input: No, usually can connect diode in series to the input

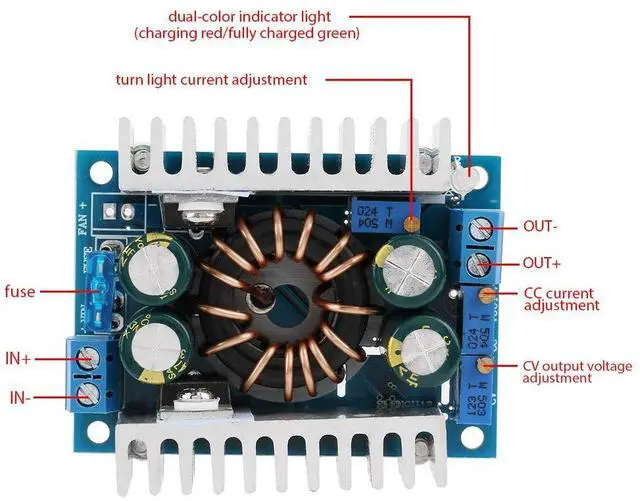

Output Indicator Light: With charging
