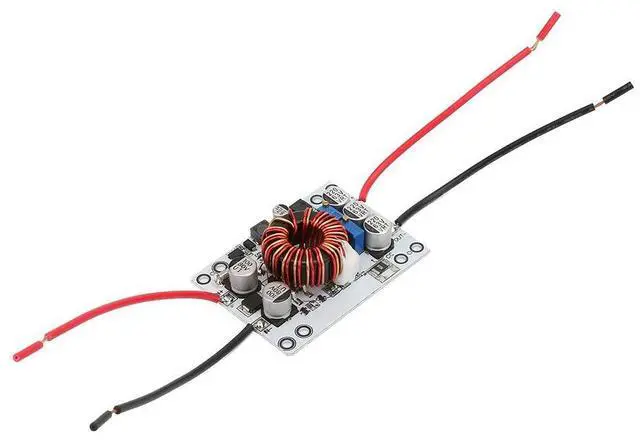

Nonisolated 10A Input Boost Converter, Step Up Down Power Supply Module, Battery Charging Vehicle Power Supply for LED Driver Regulated Power Supply

1. Made with electronic component for high stability and performance.
2. High output current, the maximum output current can 8A.
3. Using high thermal conductivity aluminum heat sinks for quick heat dissipation.
4. Output voltage and output current are adjustable.
5. Applicable to LED driver, vehicle power supply, battery charging, regulated power supply, etc.
Spec:
Features: Made with electronic component for high stability and performance. High output current, the maximum output current can 8A. Using high thermal conductivity aluminum heat sinks for quick heat dissipation. Output voltage and output current are adjustable. Applicable to LED driver, vehicle power supply, battery charging, regulated power supply, etc.
Specification: Module
properties: Non-isolated voltage regulator
Input voltage: 10.5 -70VDC
Input current: Maximum 10A
Continuous input current: Maximum 8A
Output voltage: 5-58VDC
Output current: Maximum 8A
Continuous output current: Maximum 6A
Constant current adjustable: 0.5 -8A
Output power: Maximum 180W (The maximum current is 8A when working at low voltage, the maximum output of bare board without auxiliary heat dissipation is 30W, and the maximum output is 50W with heat sink without fan. )
Standby current: About 20mA
Conversion efficiency: About 90%
Reverse polarity: No, please first determine positive and negative and then power on
Dimensions: Approx. 70 x 52 x 21mm / 2.76 x 2.05 x 0.83 in
Weight: 74g (approx. ) Output Voltage /

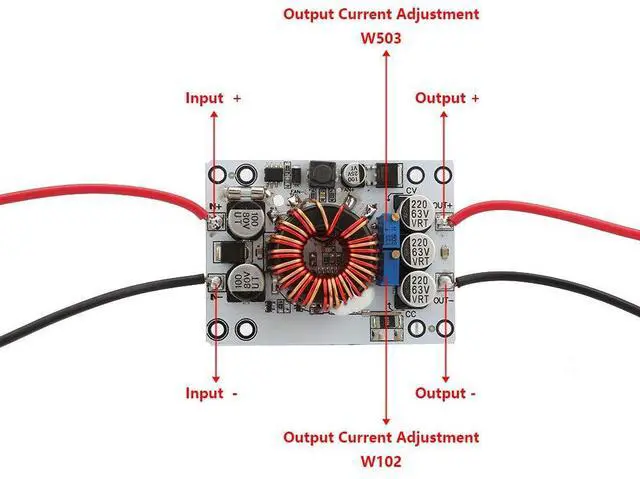

Current Regulation Method:
1. Adjust the voltage adjustment potentiometer (clockwise to reduce the voltage, counterclockwise to increase the voltage), set the output voltage to the voltage you need according to your load requirements.
2. Adjust the current adjustment potentiometer clockwise by about 20 turns to set the output current to the minimum, connect the LED, and adjust to the current you need.
