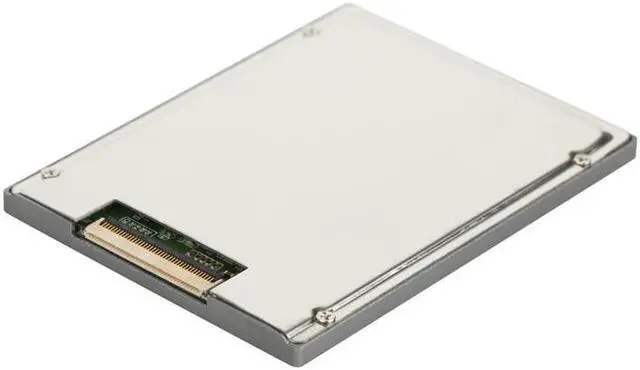

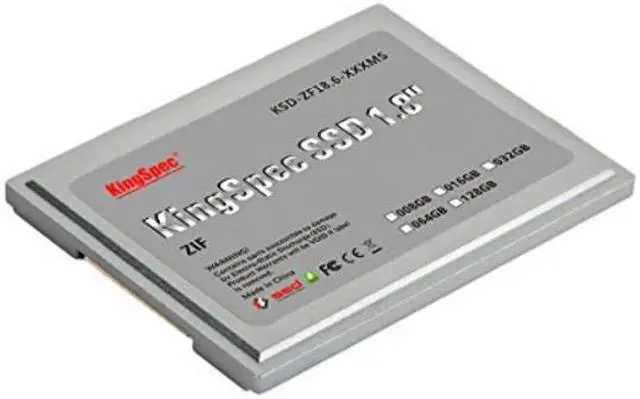

256GB KingSpec 1.8-inch ZIF 40-pin SSD Solid State Disk SMI Controller (MLC)

  • 256GB 1.8-inch ZIF-interface Solid State Disk
  • 40-pin ZIF interface
  • Read speed up to 107MB/sec
  • Write speed up to 65MB/sec
Overview
Specs
Reviews

256GB 1.8 -inch SSD Solid State Disk, ZIF 40-pin interface. Suitable for Macbook Air, Fujitsu U1010 and many other netbooks using the ZIF interface. Read speed up to 107MB/sec and write speed up to 65MB/sec. With SMI controller.

Backed by a 2-year King
Spec warranty.

Package contains SSD, ZIF cable, warranty card, stickers


Further specifications:



NAND
Flash: MLC(Test
Flash: 8pcs MT29F32G08CBAAA)

Input Voltage: 3.3V ± 5%

Write endurance: 80years@10GBytes write and erase per day at 128GB

Read endurance: unlimited

Wear-Leveling Algorithm: Dynamic and static wear-leveling

Data Retentio: 10years
at 25ºC
MTBF
: 1, 000, 000hours

ECC
: Supports BCH ECC 8bits or 15bits in 512 bytes

Bad Block Management: Auto Bad Block Management in system

Operating Temperature: 0~70ºC

Non-operating Temperature: -40~85ºC

Shock: 2, 000G(@ 0.3 ms half sine wave)

Vibration: 20G(40-2000HZ)
