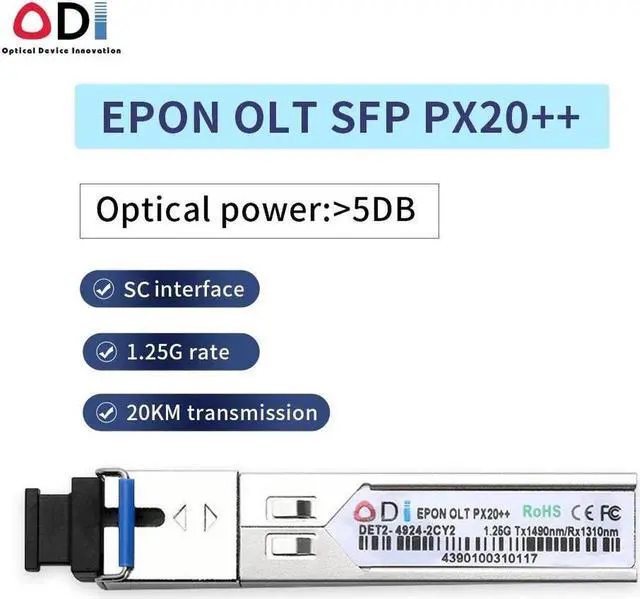

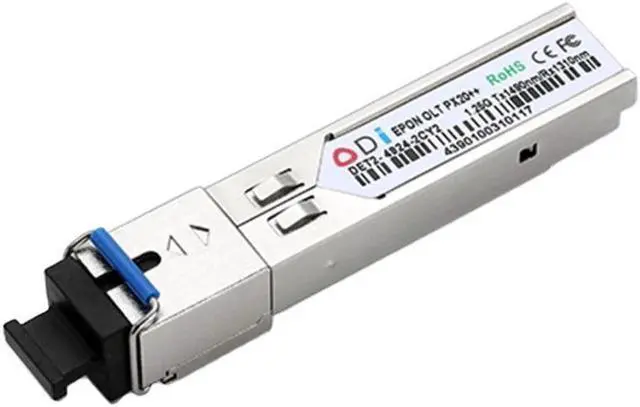

1.25G EPON OLT PX20+++ Tx1490/Rx1310nm 9dbm SFP transceiver module

Product Description
1.25G EPON OLT PX20+++ Tx1490/Rx1310nm 8dbm SFP transceiver module
1.25G b/s serial optical interface compliant to
802.3AH specifications small form factor
pluggable module SFP
1490 nm DFB transmitter, 1310 nm APD photo
detector BURST receiver

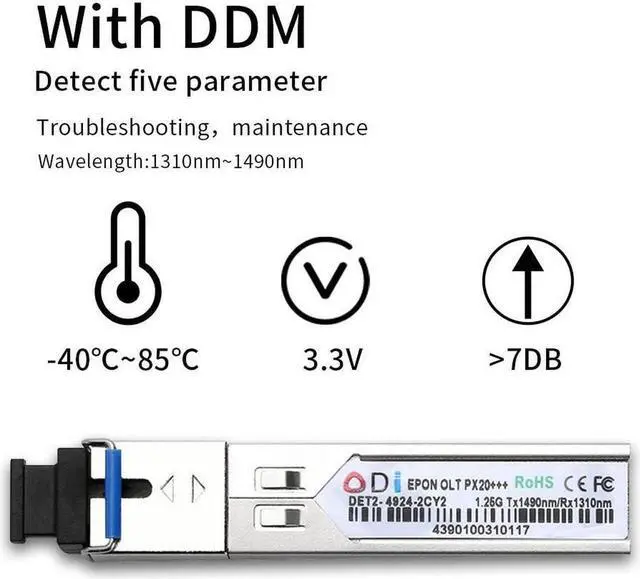

2-wire interface for management specifications
compliant with SFF 8472 digital diagnostic monitoring
interface for optical transceivers Operating case temperature: 0 to 70 C or-40 to 85 C
All-metal housing for superior EMI performance Low power consumption
Cost effective OLT solution,
RoHS compliant
item
value
Model Number
-PX20+++
Type
Fiber Optic Transceivers
Name
&
Use
FTTH
Product name
EPON OLT PX20+++
Certification
CCC CE RoHS
Wavelength
1310/1490nm
Warranty
3years
Transmission Distance
20km
Fiber Type
Single Fiber Single Mode
Optical power
7-9dbm
