$39.78
Ships from China.
Meet Your Seller

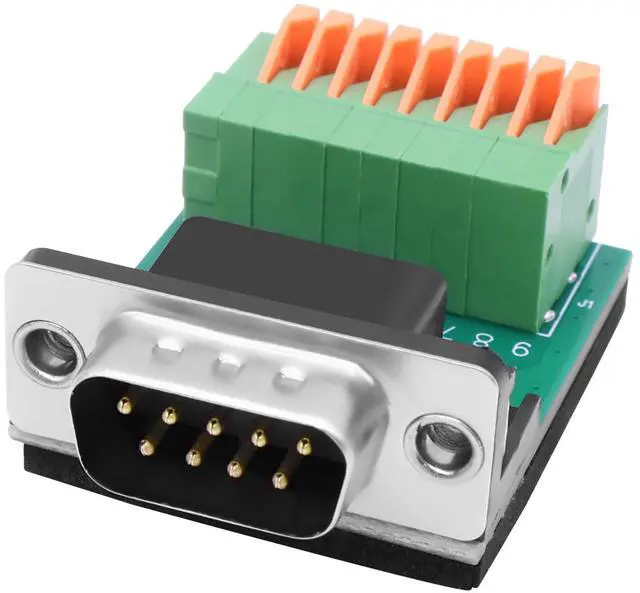

BUCIER DB9 Solderless Adapter RS232 D-SUB Serial to 9-pin Port Spring Terminal Crimp Connector Breakout Board 9 pin Port Adapter Module for Serial Communication Devices (DB9 Male)
- DB9 solderless RS232 D-SUB serial to 9-pin port spring terminal adapter uses spring crimped terminals for quick wiring and easy assembly and disassembly without the need for tools
- RS232 D-SUB 9-pin serial connector adopts pure copper gold-plated contacts, with good contact, fine solder joints, and stable data communication transmission
- DB9 to 9Pin solderless serial adapter is used for serial communication system development input/output configuration. It adopts double-sided PCB board design to prevent signal crosstalk. UVA foam is stuck on the bottom to protect PCB solder joints

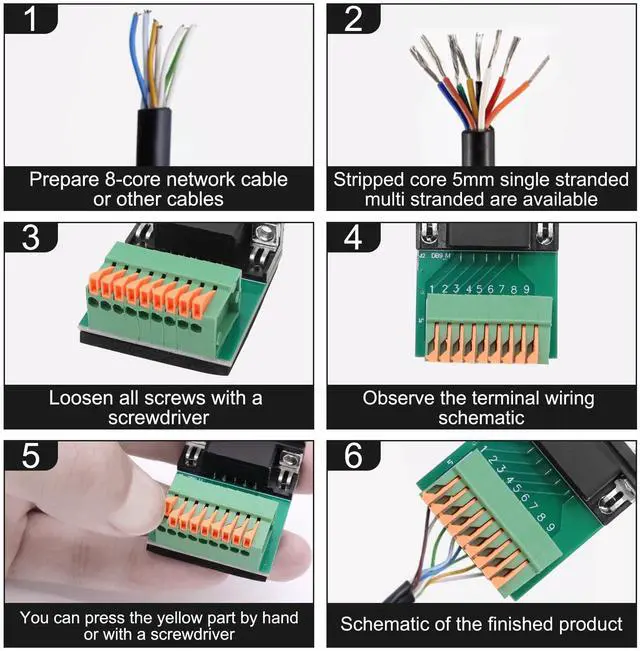

- DB9 solderless crimping connector does not require soldering and is easy to wire. Just press the yellow spring button and slide in the twisted or solid wire according to the numerical serial number on the PCB board to install
+
+
Overview
Specs
Reviews
RS232 DB9 to 9-pin quick connect terminal solder free adapter is a 232 serial communication interface, and the 9-pin spring crimping terminal allows for quick wiring without the need for special tools;
DB9 D-SUB breakout board serial adapter with pure copper gold-plated contact pins enhances conductivity and reduces signal loss;
Thickened PCB panel, stable signal, anti-interference.
Specifications:
Connector: DB9 9-pin terminal block
Number of pins: 9
Pin head: gold-plated contact
Connection line: D-SUB connection line
Process: PCB soldering

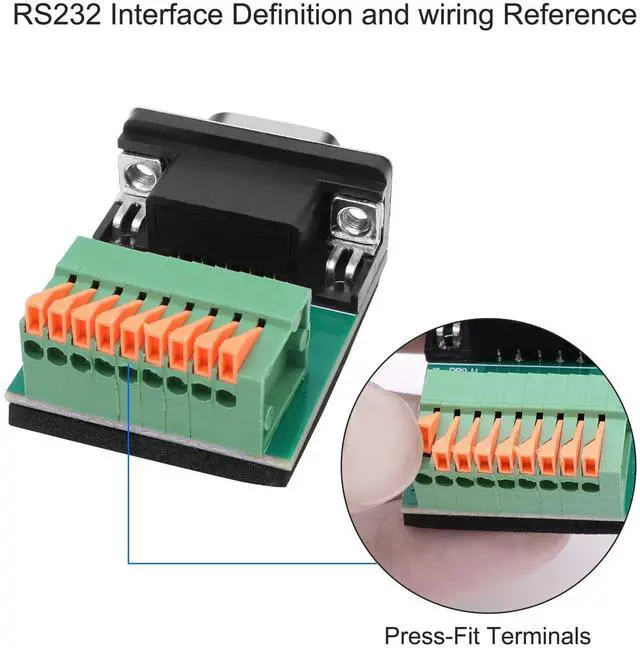

Installation method: Press the orange button and insert the wire into the wiring port
Application: Tax control machine, digital camera PLCPDAMODEM Set top boxes, barcode machines, industrial instruments and meters, etc
Package includes: 1PC * DB9 serial port spring terminal
Additional Features
- DB9 serial port adapter connects RS232 D-SUB serial devices, suitable for various serial interface devices such as computers, laptops, set-top boxes, barcode machines, cash registers, tax control machines, modems, etc PLCPDAMODEM Industrial control equipment, etc
