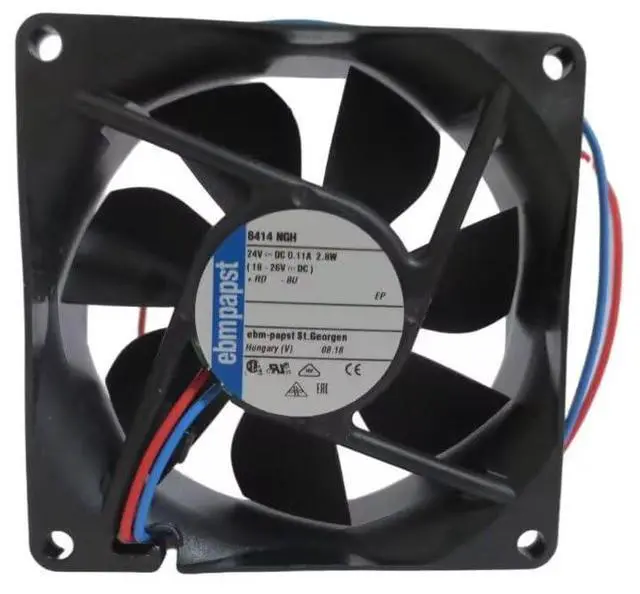

8414NGH ebm-papst DC Axial Fan 8414 NGH DC 24V18~26V DC1.4-3.1W 80-120mA 2700-3900RPM Sleeve Bearing Cooling Fan for Power module cooling

Item Parameter: Voltage:24.0V DCnominal18~26V DCvoltage range |Current Draw:80mA±17.5%/114mA±12.5%/120mA±15.0%p=0; Starting current:364mA; Locked rotor current364mAat UN | Power Input:1.4W±17.5%/2.8W±12.5%/3.1W±15.0%p=0 | Speed:2700±12.5%/3600±7.5%/3900±10.0% RPMp=0 | Type:DC axial fan | Material:Housing:Plastic; Impeller:Plastic| Direction of Rotation:Counterclockwiseviewed toward rotor | Airflow direction:Air outlet over struts
Model:9292506110VWC0080YUEBS/8414 NGHfan for ebm papst; Type:DC axial fan; Temperature Range:-20~70 (operating); -40~80 (storage); Bearing system:Sleeve bearingaxial clearance 0.1-0.9mm; Connection:310mm±10.0mm AWG24 wires1-red:+UB, 2-blue:-GND, insulation diameter=1.55mm; Installation torque:Wire outlet corner=50Ncm, Remaining corners=70Ncm; Screw size:ISO 4762 - M4degreased, no additional brace/washer; Installation position:Anyshaft orientation; Pollution degree:1DIN EN 60664-1, dry non-conductive pollution
Fan Size:80.0mm (Width) × 80.0mm (Height) × 25.4mm (Depth); Weight:0.095 kg; High-reliability 9292506110 fan built with German precision, measured via double chamber intake rig. A stable-performance DC axial cooling fan with sleeve bearing, engineered for industrial ventilation and heat dissipation.
Applicance:9292506110 fan widely used in sheltered rooms with controlled temperature and humiditydirect water exposure avoided, industrial electronic enclosures and low-to-medium pressure cooling systems; compliant with EMC Class Bsuitable for residential/industrial areas; our store is professional for providing ventilation and heat dissipation products and industry control accessories.
Condition:All items tested and brand-new before sale, compliant with CEEC Declaration of Conformity, EACEurasian Conformity, UL507Electric Fans E38324, VDEEN 60950, CSAC22.2 No.113. Based on correct installationfollow DC voltage range & EMC requirementsand useavoid water exposure, we provide 6-month warranty. More details, feel free to contact us.
