Alphacool Leak Tester

After completion of the water cycle, the last step is usually to fill the system. Every now and then it happens that something liquid leaks somewhere. Often it is because a hard tube or hose is not sitting correctly or a connection has not been completely turned in. With the Alphacool Leak Testing Tool, you can test the tightness of your water circuit before filling the system.
Construction

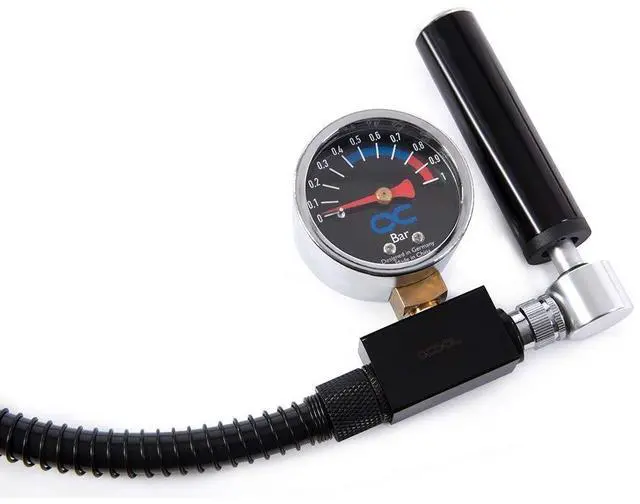

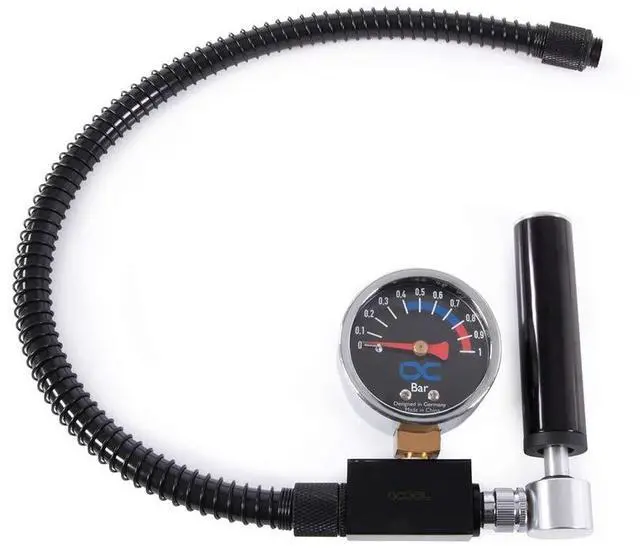

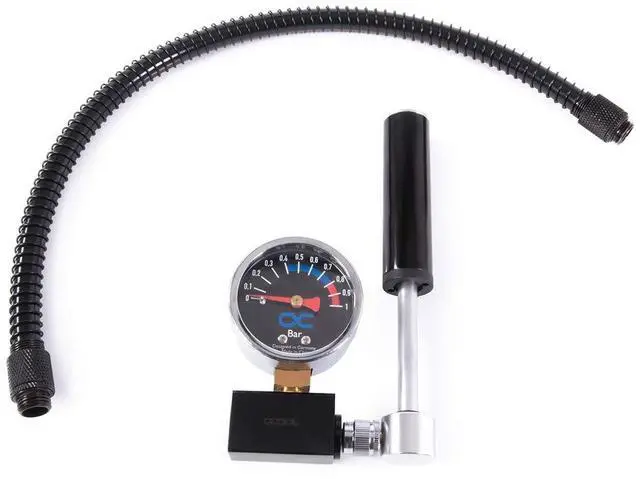

The Leak Testing Tool consists of a hand pump, a pressure indicator, an 11/8mm hose at the end of which a connection with G1"4" thread is attached. The whole thing is connected via a TEE piece. The hose is 40 cm long and has a buckling protection spring.
Application

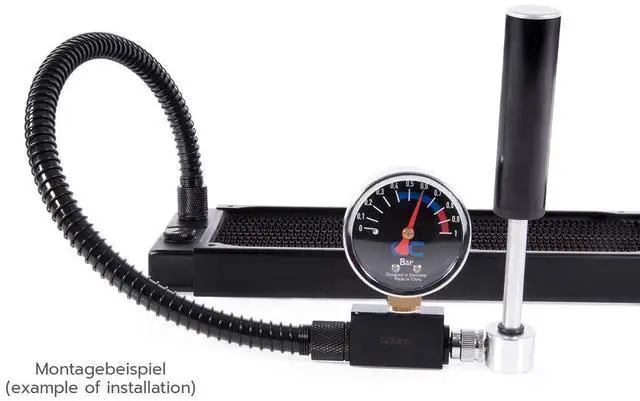

Connect the Alphacool Leak Testing Tool to a free G1/4" connector in the system and operate the hand pump until the desired pressure is reached. Please note here that there may be different maximum specifications depending on the manufacturer. Now you should wait about 15 to 20 minutes. If the pressure has not dropped after this time, the water circuit is dense.
Specifications:
Measuring range: 0 - 1 bar
Thread: G1/4" Connection
Tube length: 40 cm
Model: 17482
