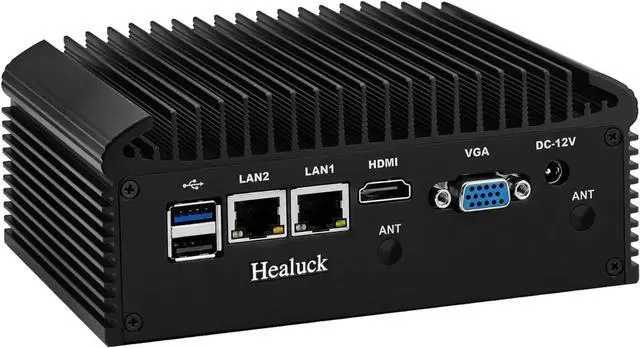

Industrial Fanless Mini PC N2840, DDR3 8G RAM 512G SSD | 2x RTL8111H RJ45 Lan, 2x DB9 RS232/485 COM, 6USB, HD+VGA Dual Dispaly, MIC, 24/7 Reliable Operation
- Industrial Grade N2840 Processor Healuck industrial pc stable 24/7 operation: Powered by N2840 2Core 2 Threads processor with ultra-low 7.5W TDP, designed for continuous industrial workloads.No pre-installed system
- Rich Industrial I/O Interfaces for Automation Integration, built with extensive industrial connectivity: 2× Gigabit RJ45 LAN (PXE & Wake-on-LAN supported), 2× RS232 serial ports (RS485 supported via jumper), GPIO interface for device control 8x USB ports for peripherals. Perfect for PLC communication, machine vision, POS systems, and industrial equipment integration

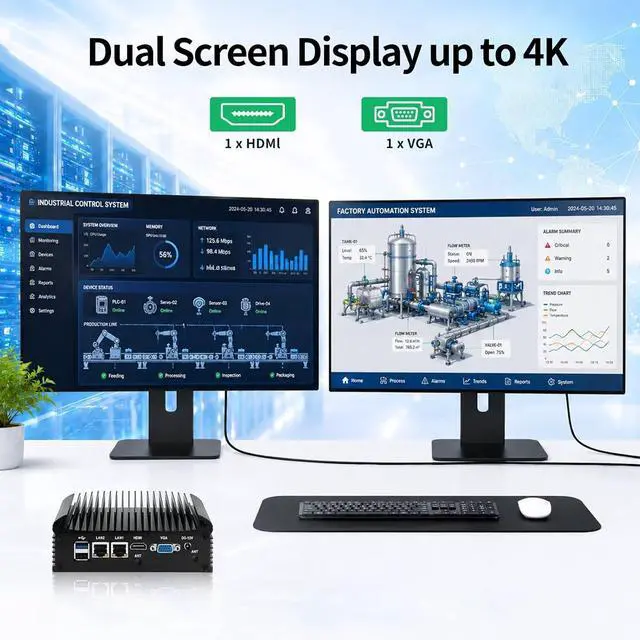

- Dual Display 4K Output for Monitoring & Control Systems: integrated UHD Graphics supports HD + VGA dual display with up to 4K@60Hz output. Ideal for industrial monitoring, SCADA visualization, digital signage, and multi-screen control centers
- Flexible Expansion & Industrial Reliability Features: Max 8GB DDR3 memory, 1xmSATA slot full size and 1x SATA2.0(7 pin) slot. 1x Mini-PCIe slot for 4G modules(not incl
+
+
Overview
Specs
Reviews
Healuck N2840 Dual LAN Fanless Industrial Mini PC
CPU:
N2840
Memory:
1 × SO-DIMM slot, single-channel DDR3 3200MHz, up to 8GB
Display:
HD ports (4K @ 60Hz), 1 × VGA port
Network:
2x RTL8111H 1GbE LAN, support Wake-on-LAN / PXE
Storage:

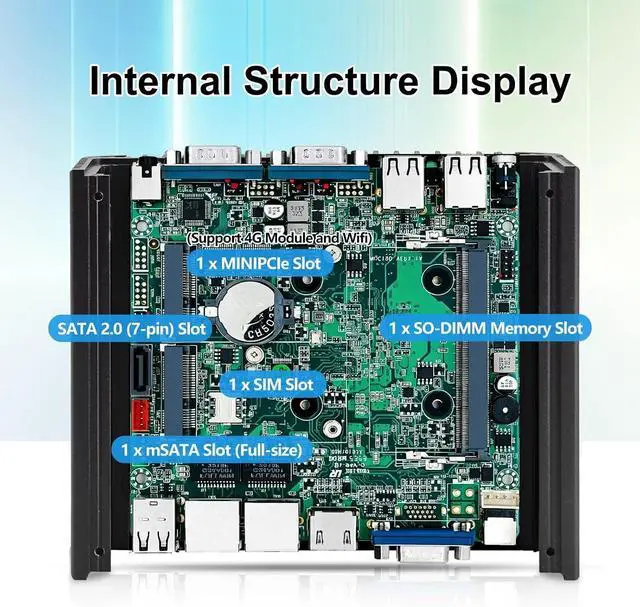

1 × 7-pin SATA 2.0 interface
1x mSATA Slot (Full-size)
1x SIM slot(LTE moduel not include)
Expansion Slot:
1 × Mini-PCIe slot, supports 4G module
Audio:
Onboard ALC897 7.1-channel high-definition audio controller, supports MIC / Line-out

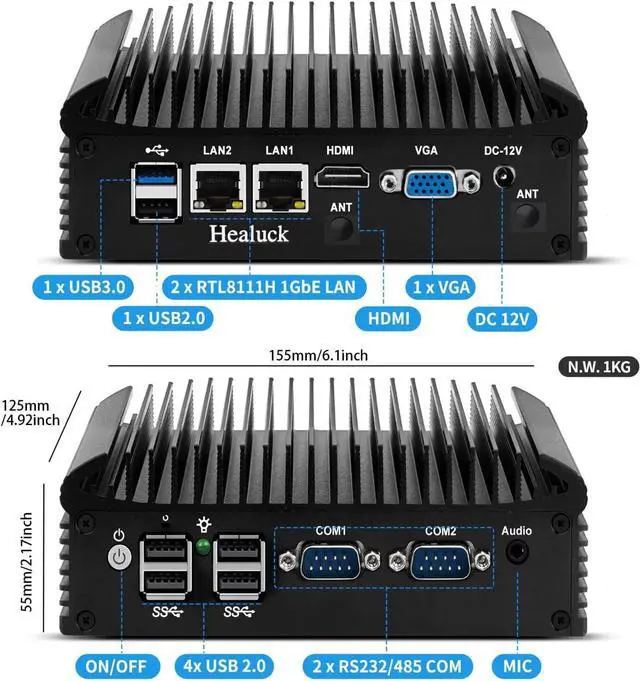

Rear I/O Ports:
2x RTL8111H 1GbE LAN
2 × USB 2.0 ports
2 × USB 3.0 ports
1 × HD port
1 × VGA port
1 × 12V DC power input
Front I/O Ports:
4 × USB2.0 ports
1 × 3.5mm audio jack (Line-out & MIC)
2 × DB9 RS232 ports (default RS232; COM1/COM2 support RS485 via jumper)
1 × HDD LED
1 × Power button with LED
Cooling:

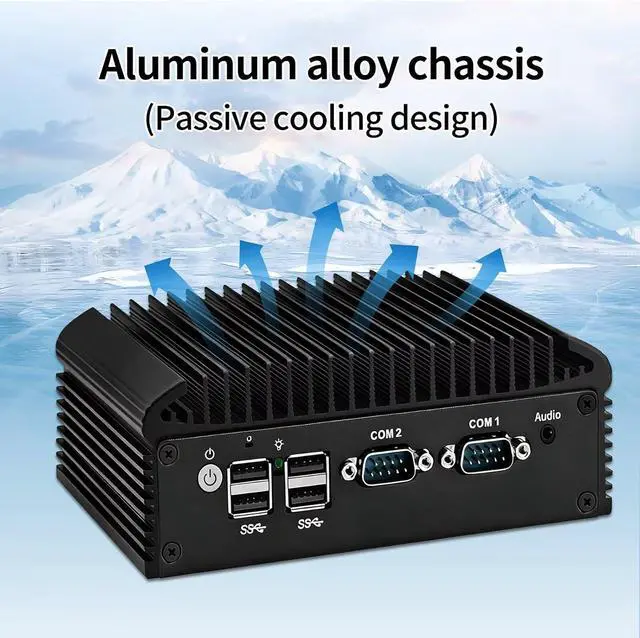

Fanless CPU heatsink design (bottom-mounted), with 1 × 4-pin CPU fan header reserved
GPIO:
4-bit programmable GPIO
Watchdog Timer:
Supports hardware reset (256 levels, 0255 seconds)
Power Supply:
DC 12V input
Operating Temperature:
-10°C to 60°C
Storage Temperature:
-20°C to 70°C
Operating Humidity:
5%95% RH, non-condensing
CPU:
N2840
Memory:
1 × SO-DIMM slot, single-channel DDR3 3200MHz, up to 8GB
Display:
HD ports (4K @ 60Hz), 1 × VGA port
Network:
2x RTL8111H 1GbE LAN, support Wake-on-LAN / PXE
Storage:
1 × 7-pin SATA 2.0 interface
1x mSATA Slot (Full-size)
1x SIM slot(LTE moduel not include)
Expansion Slot:
1 × Mini-PCIe slot, supports 4G module
Audio:
Onboard ALC897 7.1-channel high-definition audio controller, supports MIC / Line-out
Rear I/O Ports:
2x RTL8111H 1GbE LAN
2 × USB 2.0 ports
2 × USB 3.0 ports
1 × HD port
1 × VGA port
1 × 12V DC power input
Front I/O Ports:
4 × USB2.0 ports
1 × 3.5mm audio jack (Line-out & MIC)
2 × DB9 RS232 ports (default RS232; COM1/COM2 support RS485 via jumper)
1 × HDD LED
1 × Power button with LED
Cooling:
Fanless CPU heatsink design (bottom-mounted), with 1 × 4-pin CPU fan header reserved
GPIO:
4-bit programmable GPIO
Watchdog Timer:
Supports hardware reset (256 levels, 0255 seconds)
Power Supply:
DC 12V input
Operating Temperature:
-10°C to 60°C
Storage Temperature:
-20°C to 70°C
Operating Humidity:
5%95% RH, non-condensing
