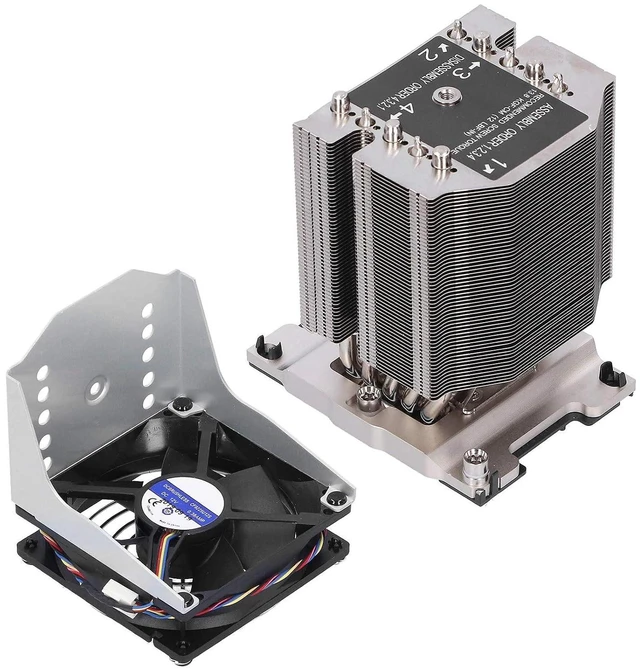

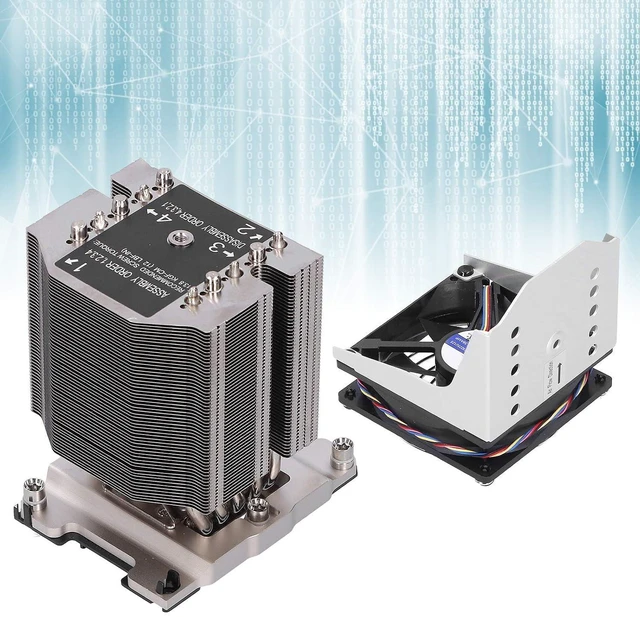

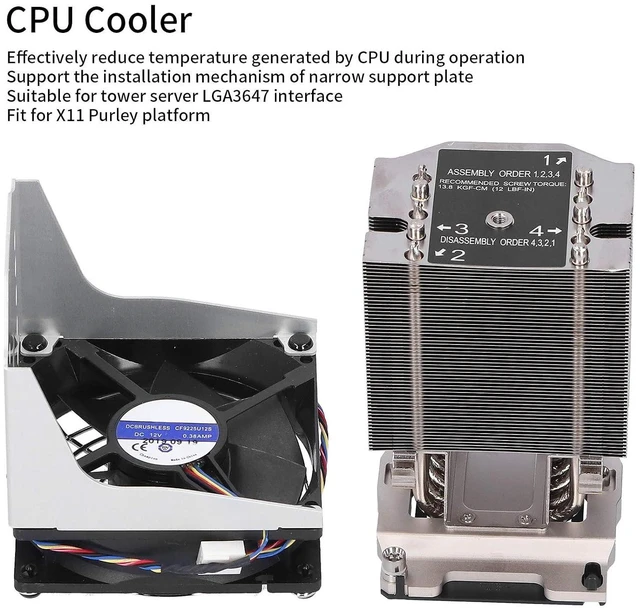

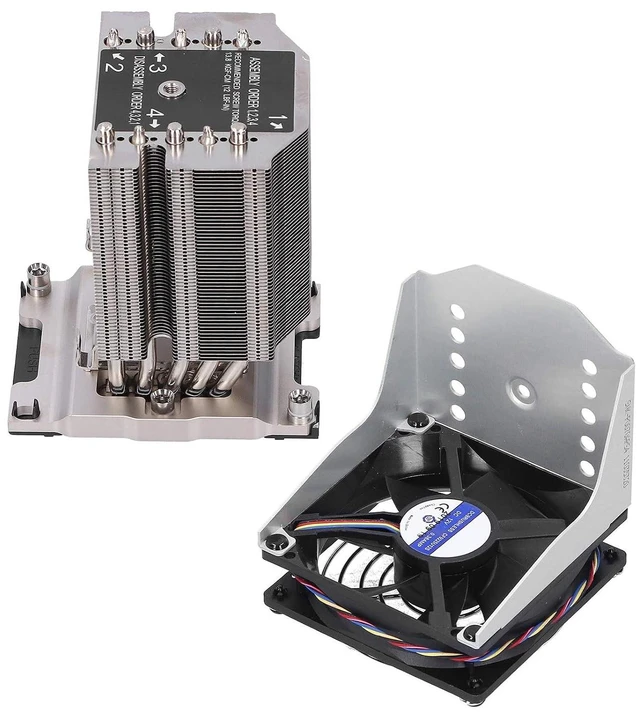

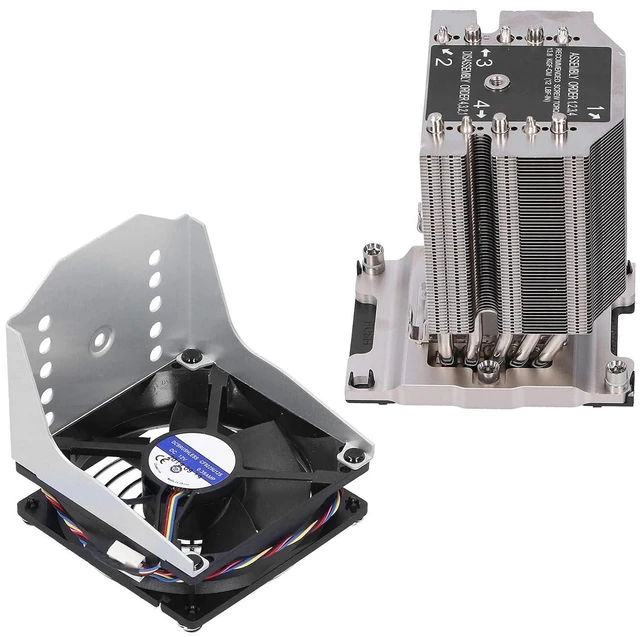

CPU Cooler - 4U Active Cooling, Narrow Support Plate Installation, PWM Fan 1200-2800RPM for LGA3647 Servers Tower Server Heat Dissipation Solution
- Efficient Cooling Performance: Designed specifically for X11 Purley platform with 4U active cooling, this CPU cooler effectively reduces CPU temperature, ensuring stable operation and extending the lifespan of your server.
- Easy Installation Mechanism: Supports narrow support plate installation, making it simple and quick to mount the cooler on your LGA3647 interface server, reducing setup time and enhancing maintenance convenience.
- Dedicated Heat Dissipation: Optimized for tower server processors with LGA3647 interface, providing targeted cooling to prevent overheating during intensive tasks and maintain efficient CPU performance.
- Quiet and Stable Operation: Equipped with a PWM fan adjustable from 1200 to 2800 RPM, delivering low noise and stable airflow, ideal for maintaining a quiet data center environment without compromising cooling.
- Durable and Reliable Build: Constructed for long-term use in demanding server environments, this cooler guarantees reliable performance, reducing
+
+
Overview
Specs
Reviews
Item Type: CPU Cooler
Material: Metal
Model: SNK-P0070APS4
CPU Type: LGA3647 (Rectangular Motherboard)
Voltage: 12V
Product Size: Approx. 102x91x125.5mm / 4.0x3.6x4.9in (LxWxH)
Fan Speed: PWM1200-2800RPM
Noise Value: 33.2dBA (Maximum)
Air Volume: 53.26CFM (Maximum)
Fan Plug: 4 Pin PWM
Bearing Type: Double Ball
Number of Copper Tubes: 5
Power Consumption: 205W
How to Use:
1. Before operation, please wear ESD gloves to protect the processor and CPU socket.
2. Confirm whether the processor has fabric. If there is no fabric in the recess, can directly snap the carrier BKT-0126L into the processor by aligning the triangular sign between the bottom of the processor substrate and the carrier. If the processor has fabric, use a cutter to remove the non-fabric processor support bracket on the bracket, and then snap the modified bracket into the fiber processor.
Note: The bracket latch must be full engaged with the key slot on the edge of the processor sub-state, and the processor should be firmly fixed on the bracket after successful insertion.
3. Face the bottom of the radiator and remove the thermal grease protective cover of the radiator. The required thermal grease has been pre-applied on the bottom of the new heat sink. Make sure that there is no on the thermal grease.
Note: The cooperation between the bracket and the backing plate controls the direction of the heat sink installed on the motherboard. First check the required heat sink orientation on the motherboard, and then insert the processor tray subassembly into the heat sink in the required orientation.
4. Place the hollow triangular sign on the bracket toward the chamfer of a corner of the radiator base. Then, align the two diagonally aligned partial posts on the bracket with the corresponding two guide holes on the radiator base. At the same time, the other two diagonal latches on the bracket should be connected to the
