Dpofirs PC Water Pump Tank, G1/4 Hole Liquid Level Sensor Water Cooling Pump Tank Integrated for PC

Sine Wave Drive: Drive mode is sinusoidal wave, sturdy structure, long service life. Support automatic speed regulation to ensure stability.

High Performance: Pump head is 3.5 meters, rate is 600L/H, suitable for all kinds of water cooling system. With water level alarm, stopping alarm and high temperature alarm.

Connector Design: Large 4P and small 4pin connector design, large 4P connected to power supply energized, small 4pin connected to CPU FAN interface.

1. Liquid Level Sensor: The water reservoir is equipped with a liquid level sensor, which emits a beep sound when the water level is low to ensure that the water pump works normally.

2. Easy to Install: Water cooling pump reservoir with mounting bracket and screws, can be fixed on 120, 240, 360 cooling row, easy to install.

3. Connector Design: Large 4P and small 4pin connector design, large 4P connected to power supply energized, small 4pin connected to CPU FAN interface.

4. Sine Wave Drive: Drive mode is sinusoidal wave, sturdy structure, long service life. Support automatic speed regulation to ensure stability.

5. High Performance: Pump head is 3.5 meters, rate is 600L/H, suitable for all kinds of water cooling system. With water level alarm, stopping alarm and high temperature alarm.



Specification:

Item Type: Water Cooling Pump Reservoir

Model No.: PUBEG6ZNBJ

Material: Acrylic, POM, Aluminum Alloy

Hole: G1/4 x 4

Reservoir Outer Diameter: Tube Body 60mm/2.4in

Pump Size: Approx. 65x65x63mm / 2.6x2.6x2.5in

Total Length: 212mm/8.3in

Capacity: 216ml

Water Pump Parameters:

Rated Current: 0.36A

Rated Power: 5W

Rated Voltage: 12V

Pump Head: 3.5 Meters ± 10%

Water Pump : 600L/H ± 10%

Structure: Centrifugal Ceramic Bearing

Driving Method: Sine Wave Drive



How to Use:

DIY installation can be used.Setting method:

Speed alarm: Long press to set, press to set the speed alarm value high or low, (setting range 08000Lmin, setting interval 500Lmin), and automatically save it after stopping operating for 3 seconds.

Temperature alarm: Long press to set, press to set the temperature alarm value high or low, (Setting range 5100, Setting interval 1), it will be saved automatically after stopping operating for 3 seconds.

Water level alarm: the water level in the container is lower than the sensor will trigger the alarm, press any key to stop the alarm. Press the up key and down key at the same time, it can be set to shield the function, then press the up key and down key at the same time to cancel the shielding function.

Turn off alarm beeping: The or digits in the screen will double flash and beep alarm sound, press any key to turn off the alarm by pressing key.

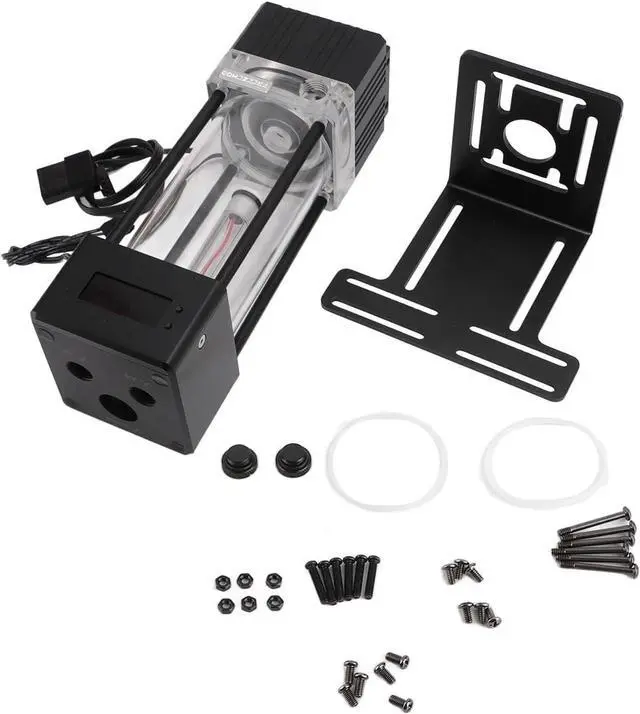

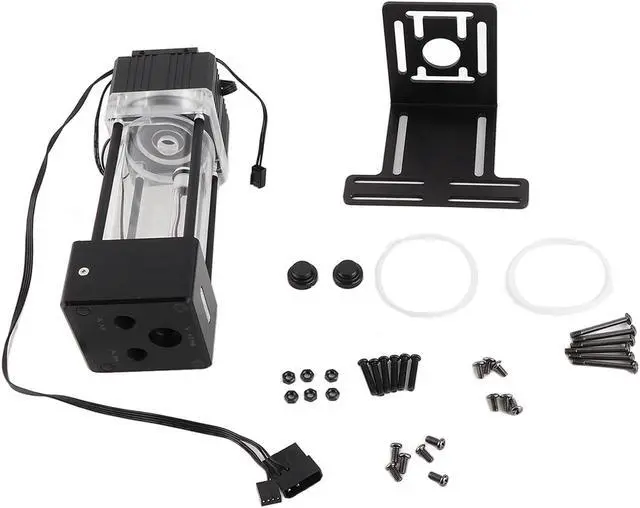

Package List:

1 x Water Pump

1 x L Type Fastener

2 x Plug

4 x Sealing Ring

3 x Screw Pack



Note:

All data are measured manually, and there are certain errors in the measurement results.
