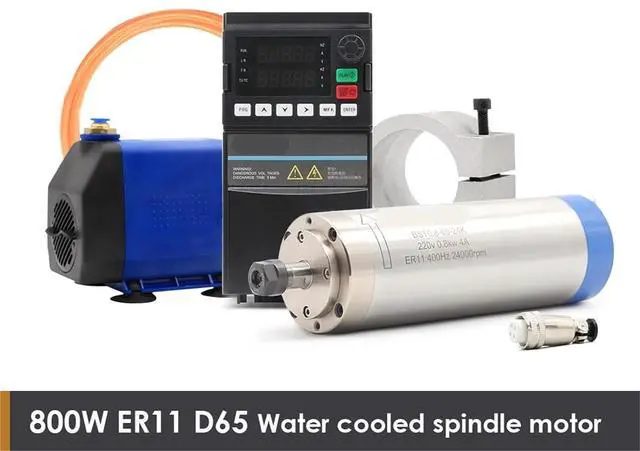

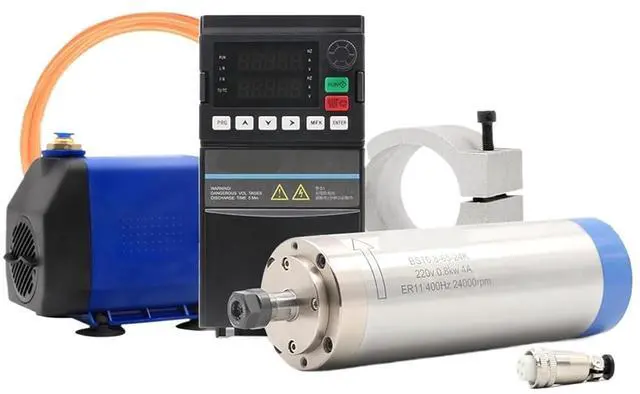

0.8KW ER11 Water Cooled Spindle Kit 800W Water Cooled Spindle and 1.5KW Inverter 75W Water Pump 65mm Bracket

1& 800w ER11 Water Cooled Spindle 65x195mm 4pcs ball bearings
1 15kw YL42 Inverter

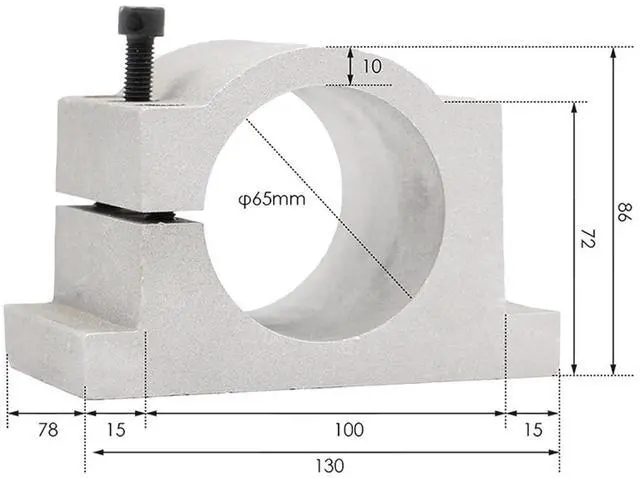

1 65mm bracket
1 75w water pump

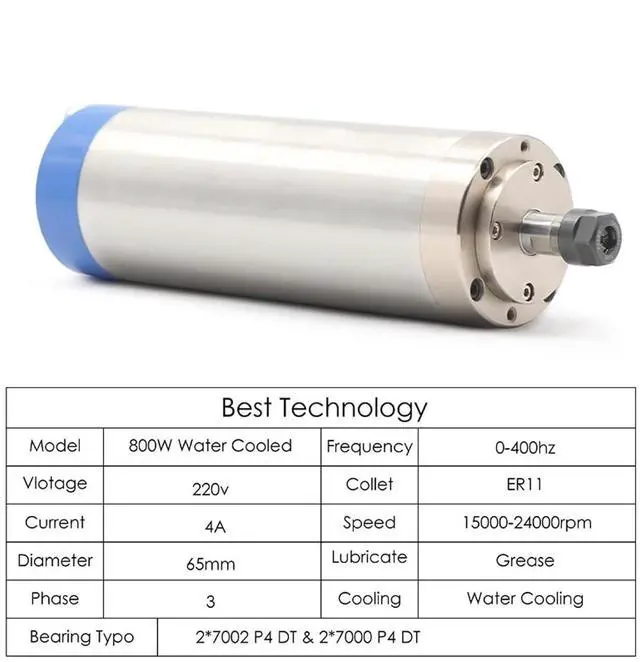

Size 65x195mm Body diameter 65mm; Length:195mm)
Speed Ways: Through 3-phase output inverter and adjust the inverter frequenc to change the spindle speed.
Cooling: Water cooling
Power Interface: Optional H17-4 pinswaterproof air plugs. Theair plugs marked "1 ","2"," 3","4", "1 ","2 ","3" were connected to inverter(U, V, W), 4 connected inverter ground.
(Pay attention! our spindle "4" connecting to GND, promised personal safety!!)
Power: 0.8kw(1HP=0.735kw)
Voltage: 220V/110V AC
Frequenc: 0-400Hz
Speed: 0-24000rpm
Runout Off: 0.01mm
4pcs angular contact ballbearings
Bearing Type: 2×7002C P4 DT &2 7000C P4 DT
Water Cooling ER11 collet chunk
Grease Lubrication
Main Application Engrave for woodbamboonormal PCBPVCPMMAplastic,duotone board (ABS) and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working. (Please pay more attention, this is wood working spindle, only can used for wood working and aluminum working, please don't use it for steel.If you need steel working, please check the metal spindle, thank you!)
P4 angular contact bearings, 2×7002C P4 DT& 27000C P4 DT increase spindle life
Longer length make the torque bigger more powerful
Carefull assembly make the spindle more precisional
Precision001mm Coaxial degree less than 00025mm
Pay attention: The spindlesize is65x195mm, bigger torque.
The voice of the spindle is very low, almost no vibration.

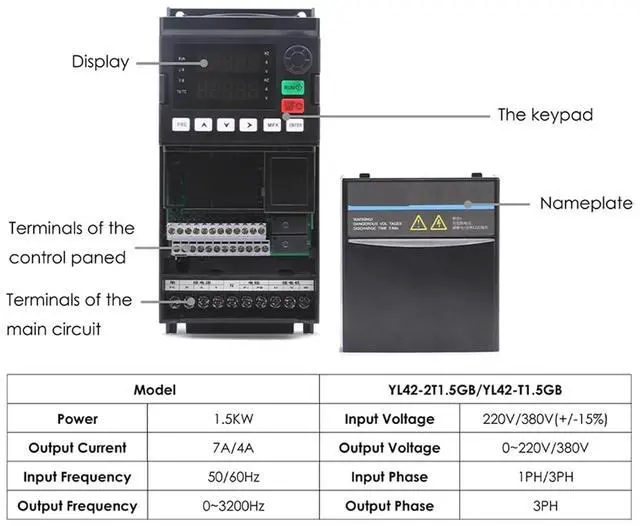

Power: 1.5kw YL42
Input Voltage: 220v/380v
Input Phase: 1/3
Input Frequenc: 50/60Hz
Output Voltage: 220v/380v
Output Phase: 3
Output Current: 7A/4A
Output Frequenc: 3200Hz
Control Method: V/F control;
DO NOT set up the inverter by yourself if you don't know how to do it, or it will make both the spindle and inverter burn easily.
Please contact us, we have manuals, videos and pictures to help you.
Diameter: 65mm
Material: Cast Aluminium

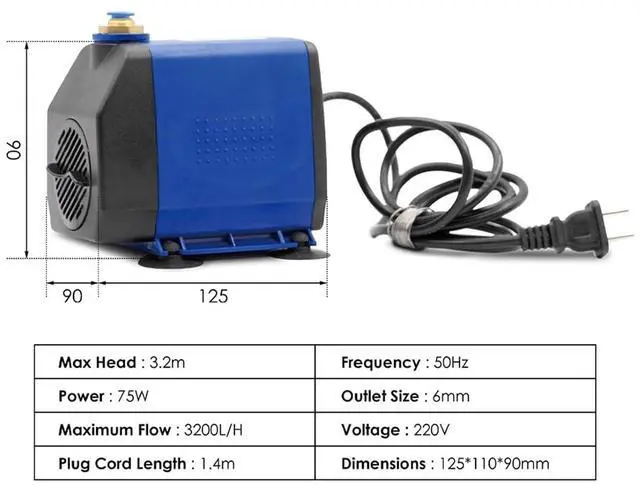

MaxHead: 3.2m
Power: 75w
Maximum flow: 3200L / H
Plugs Cord Length: 1.4m
Voltage:220V
Frequenc: 50HZ
Outlet size: 8 and 5mm
Dimensions: 145*110*90mm
Spindle working environment temperature is usually -10 ~ 40 .
Certification : CE
Origin : Mainland China
Drive : Motor
Maximum Torque : 0.32Nm
Operating Speed : 0~24000rpm
Model Number : 800W 220V ER11 Water Cooled Spindle Kit
Application : Milling
Size : 65*195mm ( Diameter 65mm )
Voltage : 220V / 110V
Power : 800W ( 0.8KW / 1HP=735W )
Cooling : Water Cooled
Bearing Type : 2*7002C P4 DT & 2*7000C P4 DT
Spindle Collet : ER11
Frequenc : 400Hz
Inverter Typt : 220V 1.5KW
Bracket : 65mm
Water Pump : 75W 220V 3200L/H
