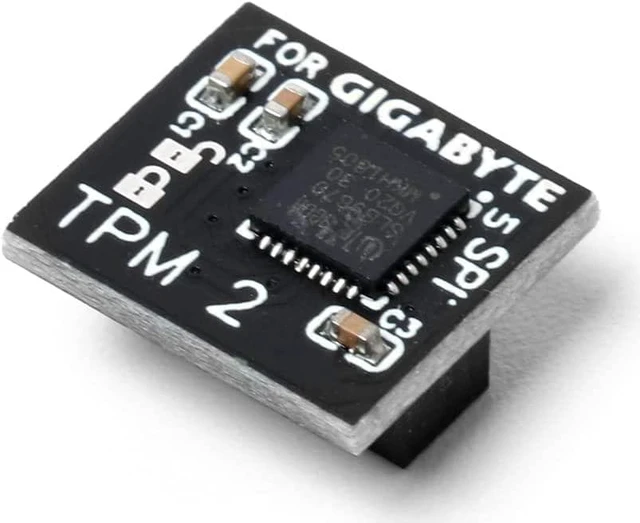

Replacement TPM 2.0 Security Module SPI 12Pin(12pin-1) Security Module for GIGABYTE GC-TPM20 Platform Accessories

Package:

1x TPM 2.0 Security Module


Note:

Please recheck the compatibility before making an order. Some motherboards need to plug in the TPM module or update to the latest BIOS to enable the TPM option

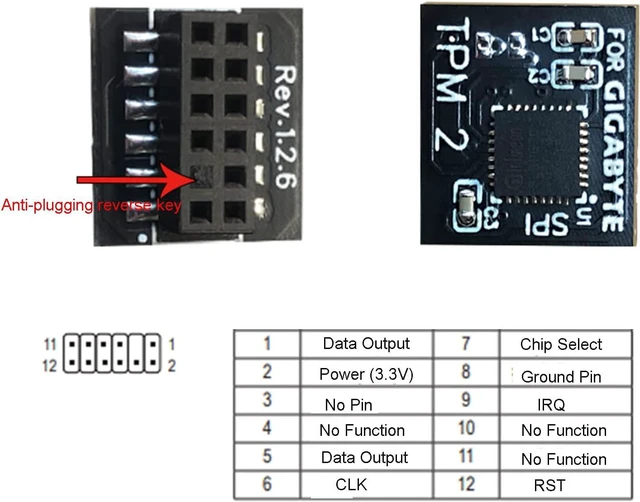

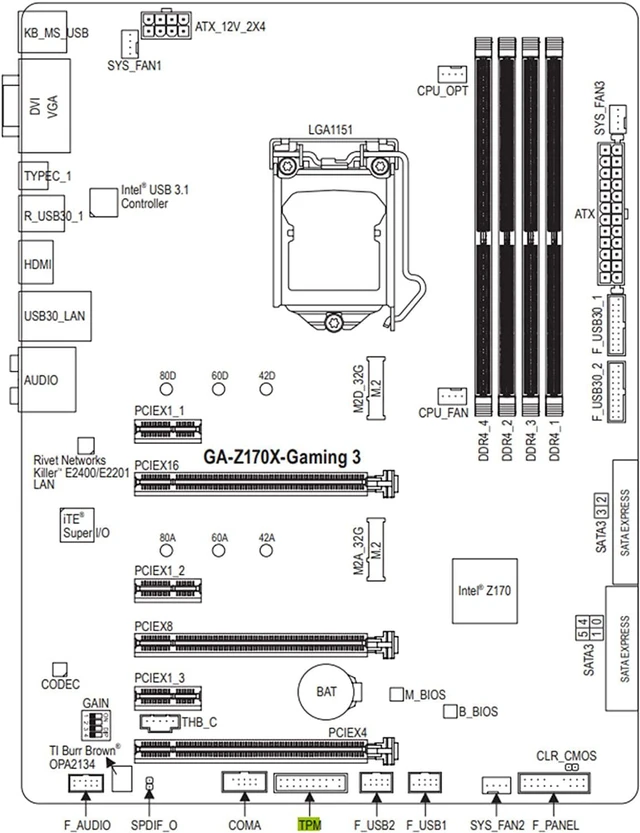

Before inserting the module, please turn off the power and find the position of the pin that marked TPM


LPC interface:

[Key Features]

Compliant to TPM Main Specification, Family "2.0", Level 00, Revision 01.16

Meets Intel TXT, Microsoft Windows and Google Chromebook certification criteria for successful platform


[Qualification]

Random Number Generator (RNG) according to NIST SP800-90A

Full personalization with Endorsement Key (EK) and EK certificate

Standard (-20..+85°C) and enhanced temperature range (-40..+85°C)

Optimized for battery operated devices: low standby power consumption (typ. 150A)

24 PCRs (SHA-1 or SHA-256)

7206 Byte free NV memory

Up to 3 loaded sessions (TPM_PT_HR_LOADED_MIN)

Up to 64 active sessions (TPM_PT_ACTIVE_SESSIONS_MAX)

Up to 3 loaded transient Objects (TPM_PT_HR_TRANSIENT_MIN)

Up to 7 loaded persistent Objects (TPM_PT_HR_PERSISTENT_MIN)

Up to 8 NV counters

Up to 1 kByte for command parameters and response parameters

Up to 768 Byte for NV read or NV write

1280 Byte I/O buffer

Built-in support by Linux Kernel Version 3.10 and higher


Disclaimer:


This is not a GIGABYTE Original product. Any use of the GIGABYTE brand name or model designation for this product is made solely for purposes of demonstrating compatibility.
