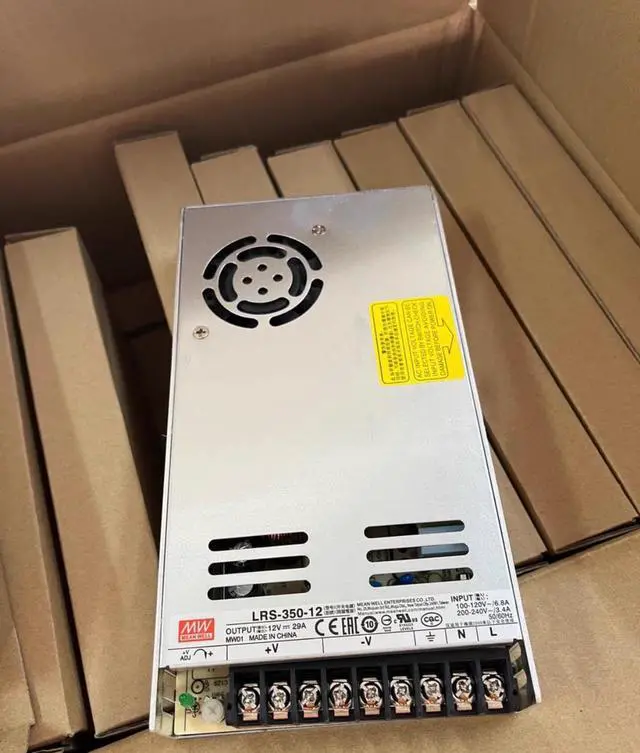

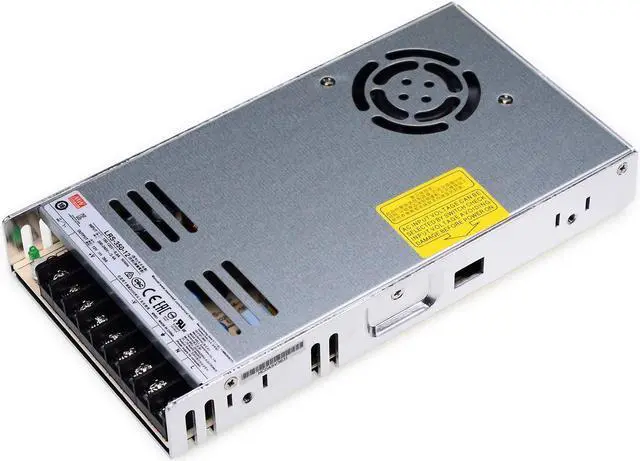

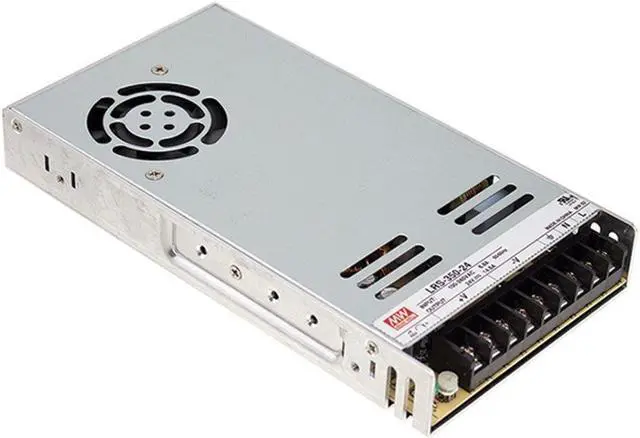

Mean Well LRS-350-12 power supply 350W 12V ultra flat 30mm 1HU metal housing
- Features
- · AC input range selectable by switch
- · Withstand 300VAC surge input for 5 second
- · Protections: Short circuit / Overload / Over voltage /Over temperature
- · Forced air cooling by built-in DC fan
- · Built-in cooling Fan ON-OFF control
- · 1U low profile
- · Withstand 5G vibration test
- · LED indicator for power on
- · No load power consumption<0.75W
- · 100% full load burn-in test
- · High operating temperature up to 70
- · High efficiency, long life and high reliability
+
+
Overview
Specs
Reviews
Characteristics:
AC input range 115VAC or 230VAC selectable via switch
Withstands 300 VAC input overvoltage for 5 seconds
Protection functions: short circuit, overload, overvoltage, overtemperature
Active air cooling through integrated DC fan
Built-in cooling fan control
Flat 1U design
Vibration resistant according to 5G test
Idle power <0.75W
High operating temperature up to 70 ° C
Highly efficient, durable and reliable
Applications:
Industrial automation
Industrial control systems
Mechanical and electrical systems
Electronic instruments or devices
Technical specifications:
Output power (nom. ): 350 W
Output voltage (nom): 12 VDC
Adjustable output voltage: 10.2... 13.8 VDC
Output current: 0... 29
Stabilization type: voltage stabilized
Number of outputs: 1
Input voltage: 90... 132/180 264VAC, 47 63Hz; 240 370VDC (switch at 230VAC)
Efficiency: 85%
Isolation input-earth: 2kV
Isolation output-earth: 500V
Operating temperature: -25... 70 º
Storage temperature: -40... 85 º
Weight: 0.76 kg
Dimensions: 215.011530 mm
Security: according to UL60950-1
Product code 108531
AC input range 115VAC or 230VAC selectable via switch
Withstands 300 VAC input overvoltage for 5 seconds
Protection functions: short circuit, overload, overvoltage, overtemperature
Active air cooling through integrated DC fan
Built-in cooling fan control
Flat 1U design
Vibration resistant according to 5G test
Idle power <0.75W
High operating temperature up to 70 ° C
Highly efficient, durable and reliable
Applications:
Industrial automation
Industrial control systems
Mechanical and electrical systems
Electronic instruments or devices
Technical specifications:
Output power (nom. ): 350 W
Output voltage (nom): 12 VDC
Adjustable output voltage: 10.2... 13.8 VDC
Output current: 0... 29
Stabilization type: voltage stabilized
Number of outputs: 1
Input voltage: 90... 132/180 264VAC, 47 63Hz; 240 370VDC (switch at 230VAC)
Efficiency: 85%
Isolation input-earth: 2kV
Isolation output-earth: 500V
Operating temperature: -25... 70 º
Storage temperature: -40... 85 º
Weight: 0.76 kg
Dimensions: 215.011530 mm
Security: according to UL60950-1
Product code 108531
