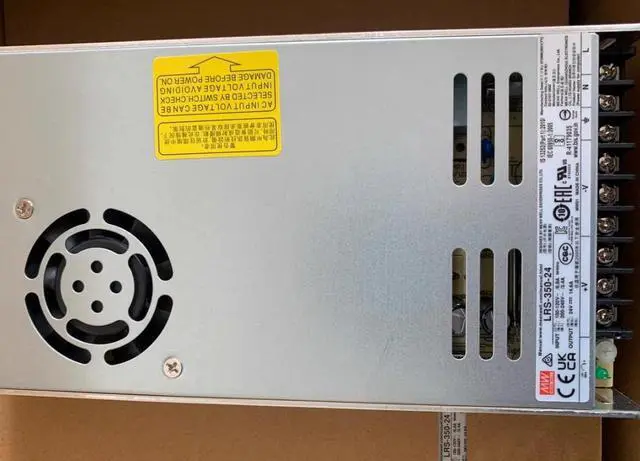

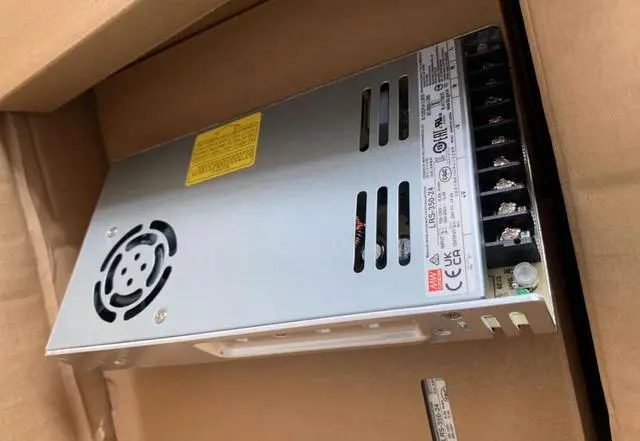

LRS-350-24 MEAN WELL 350W 24V Switching Power Supply 110V/220V AC to 24V DC 14.6A 350W Mean well dc Power Supply
- Features

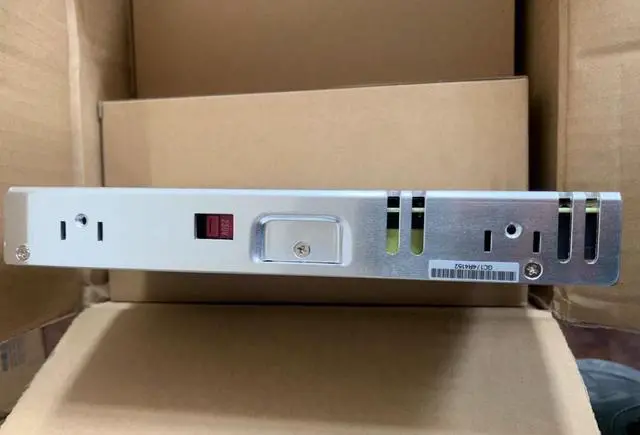

- AC input range selectable by switch
- Withstand 300VAC surge input for 5second
- No load power consumption<0.75W
- 1U low profile
- High operating temperature up to 70°C
- Protections: Short circuit / Over voltage/Over load/Over temperature
- Forced air cooling by built-in DC fan
- Built-in cooling Fan ON-OFF control
- Operating altitude up to 5000meters
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- LED indicator for power on
- 100% full load burn-in test
- 1 years warranty
+
+
Overview
Specs
Reviews
Application
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
Description
LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltageline of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V and 48V.
In addition to the high efficiency up to 89%, the design of metallic mesh case enhances the heat dissipation of LRS-350 that the whole series operates from -30°C through 70°C with fan load.
Delivering an extremely low no load power consumption(less than 0.75W ), it allows the end system to easily meet the worldwide energy requirement. LRS-350 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as UL60950-1. LRS-350 series serves as a high price-to-performance power supply solution for various industrial applications.
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
Description
LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltageline of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V and 48V.
In addition to the high efficiency up to 89%, the design of metallic mesh case enhances the heat dissipation of LRS-350 that the whole series operates from -30°C through 70°C with fan load.
Delivering an extremely low no load power consumption(less than 0.75W ), it allows the end system to easily meet the worldwide energy requirement. LRS-350 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as UL60950-1. LRS-350 series serves as a high price-to-performance power supply solution for various industrial applications.
