Chip Family GeForce® RTX 4080
Product Series iGame Series
Graphics chip AD103
Core process 4nm
CUDA cores 9728
Base Frequency Base: 2205Mhz; Boost: 2505Mhz
One-key OC core frequency Base: 2205Mhz; Boost: 2640Mhz
Memory speed 22.4G bps
Memory capacity 16GB
Memory interface width 256 bit
Memory type GDDR6X
Memory bandwidth 716.8GB /s
External power supply 16pin
Power Supply Design 22+4
TDP power consumption 380W

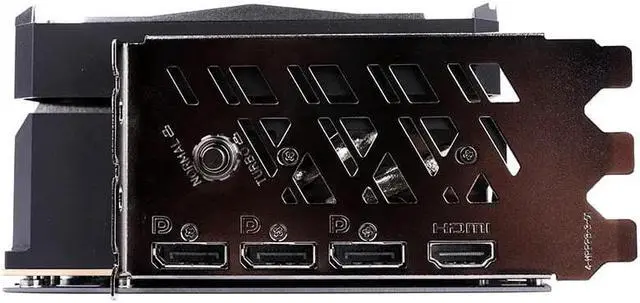

Display interface 3*DP+HDMI
Fan Type Fan
Heat pipe quantity & specification 9*8
Fan intelligent start and stop Y
Recommended power supply 850W and above
DirectX DirectX 12 Ultimate/OpenGL 4.6
Support NV technology NVIDIA DLSS, NVIDIA G-SYNC, 3rd Gen Ray Tracing Cores
Graphics card type Super triple slot
Product size (with baffle) 348.5 * 159.5 * 70.4 mm
Product weight 2.4KG (N. W)
