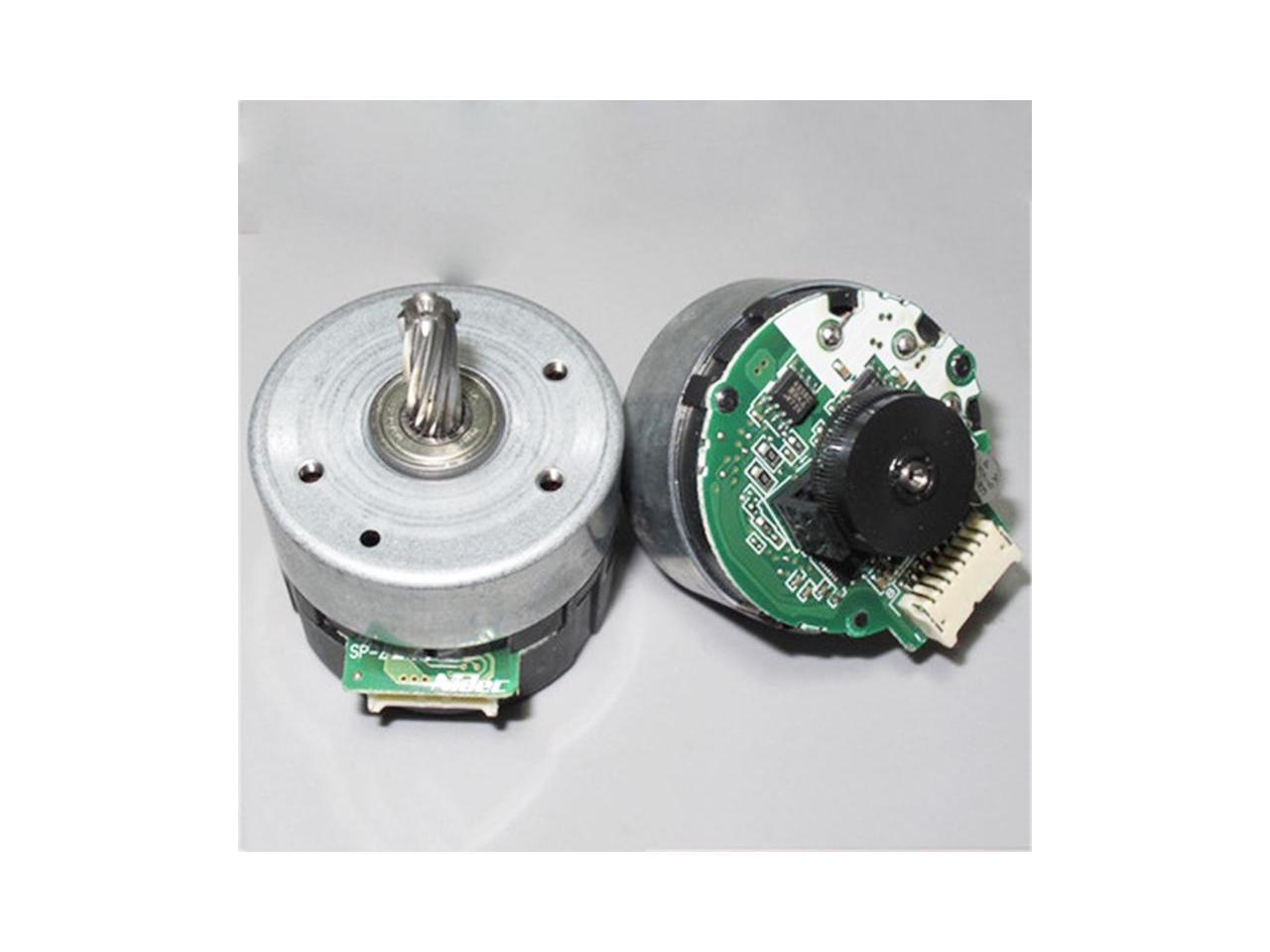

DC 12-24V Japan Nidec 24H Brushless Servo Motor Built-in Drive 100 Line Encoder Pwm Speed Regulation

Origin:CN(Origin)
Certification:NONE
Commutation:Brushless
Model Number:8mm Mini Coreless Motor
Type:Micro Motor
Protect Feature:Totally Enclosed
Construction:Permanent Magnet
Usage:Home Appliance
Efficiency:Other
Condiction:Used

Details:
Voltage     No-load current     No-load speed
DC 9V        70mA                      2246RPM
DC 12V      80mA                      3020RPM
DC 24V      100mA                    6100RPM
Simple test operation method of the motor: connect the red wire to the positive pole, the black wire to the negative pole, the yellow wire start wire to the 1k resistor to the positive pole of the power supply, and the resistance below 12V is not connected to the resistor, then the white PWM wire is connected to the negative pole to run at high speed, and the white wire is input 20KHZ pulse
The wide signal can adjust the speed, and the green wire can be connected to the negative pole to switch between positive and negative. Note that the positive and negative switching is best to switch after stopping to prevent instantaneous surges. The encoder supply voltage is 5V, and the encoder can be ignored if it is not used.
Please note in detail, pay attention to wiring during use.
Note: It is strictly forbidden to make mistakes about the positive and negative of the brushless motor, and must use a regulated non-surge DC power supply, such as a , a regulated power supply, etc.
Package Include:
Motor  x 1PC
