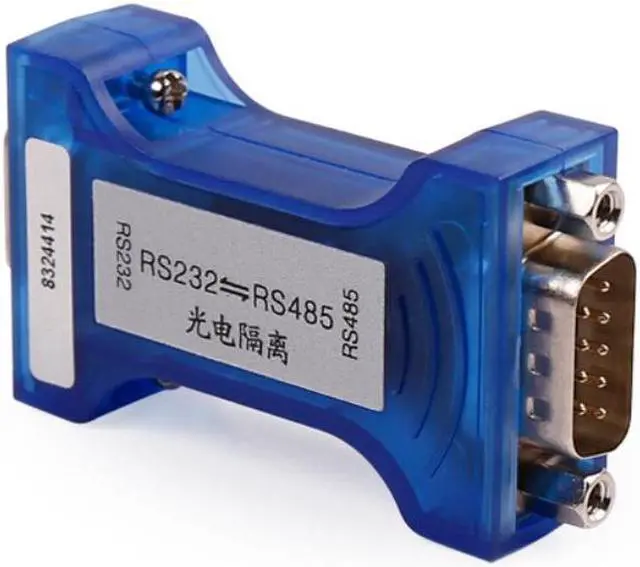

Main image of Z-TEK RS232 to RS485 Converter with optical isolation passive interface protection 600W lightning strike protection industry

Shop All Revitol Products | Visit YuXuan Technology Store

Z-TEK RS232 to RS485 Converter with optical isolation passive interface protection 600W lightning strike protection industry

Z-TEK RS232 to RS485 Converter with optical isolation passive interface protection 600W lightning strike protection industry

Overview

Specs

Reviews

Model Number:ZY284 RS232 TO RS485
Type:Cable Adapter
Products Status:STOCK
Package:No

Product name RS-232 to RS-485 Converter with Isolation
Standards: RS-232C, RS-485 EIA/TIA
Connector: RS-232 DB9 female, RS-485 DB9 male
Protection: RS-232 ±15KV ESD protectionRS-485 each line 600W lightning, surge protection
Isolation: Isolated voltage 2,500Vrms 500DC non-stop
Working mode: Asynchronous half-duplex
RS232 to RS485 Two-way transmissionDual LED display transmission status
Built-in power stealing circuit, support three-wire serial port
Baud rate adaptive1200bps-512kbps
Transmission media: Twisted-pair or shielded cable
Transmission rate38,400bps to 300m; 9,600bps to 1.2Km
Dimension: 64mm×33mm×17mm
