ARM Cortex-M3 STM32F103C8T6 STM32 Minimum System Development Board
Overview
Specs
Reviews

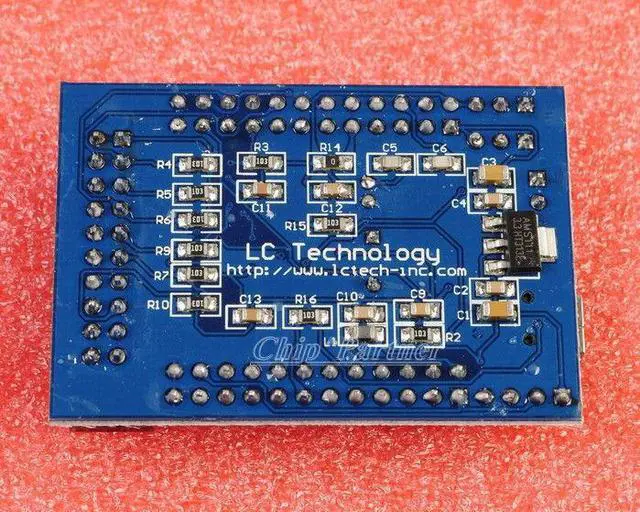

Product Name: ARM Cortex-M3 STM32F103C8T6 STM32 Minimum System Development Board
1. chip board STM32F103C8T6 2. board JTAG interface and reset button 3. the onboard crystal 32.768KHZ and 8MHZ 4. with 5V to 3.3V chip AMS1117- 3.3 5. with a group of UART serial interfaces 6. all I/O all the leads, and mark the I/O name 7. on-board Mini USB interface, you can give the board power supply and USB communication 8. board size 54 (mm) x 42 (mm)
1. chip board STM32F103C8T6 2. board JTAG interface and reset button 3. the onboard crystal 32.768KHZ and 8MHZ 4. with 5V to 3.3V chip AMS1117- 3.3 5. with a group of UART serial interfaces 6. all I/O all the leads, and mark the I/O name 7. on-board Mini USB interface, you can give the board power supply and USB communication 8. board size 54 (mm) x 42 (mm)
