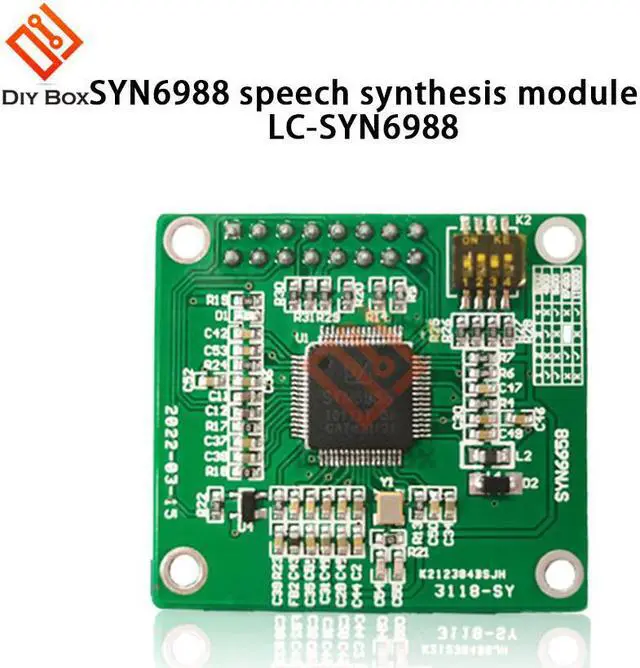

SYN6988 Chinese English Speech Synthesis Module UART SPI Communication Interface Low Power Consumption Audio Decoder Board

Origin:CN(Origin)
Compatible Audio & Video Equipment Style:Amplifier
Bundle:Bundle 1
Dimensions (WxHxD)):4.20cm*3.85cm*0.30cm
Certification:NONE
Model Number:SYN6988 Chinese and English speech synthesis module
Weight:0.007kg
Package:Yes

Product selling point:
1. Clear, natural and accurate Chinese and English speech synthesis effect. The chip supports the synthesis of Chinese and English texts, which can be used
GB2312.GBK and Unicode three encoding methods. The amount of text synthesized each time can reach 4K bytes.
2. Two communication modes: The chip supports two communication modes, UART and SPI. When the user's UART serial port resource has been
When occupied, you can choose to use the SPI interface.
3. The chip supports Standby mode. Using control commands can put the chip into Standby mode.
4. The communication baud rate supported by the chip: 4800bps, 9600bps, 57600bps.115200bps.
5. Small size
Description:
SYN6988 speech synthesis module, SYN6988 Chinese speech synthesis chip, inherits the excellent features of SY6658 high-end Chinese speech synthesis chip: small size, SMD package. The hardware interface is simple and low power consumption, the tone is clear and round, close to the human voice, and the price is very high; In addition, SYN6988 has added English text parsing and English sound library, which is a Chinese and English speech synthesis chip for high-end industrial applications. SYN6988 chip achieves hardware and communication interface
Fully compatible with SYN6658 chip. SYN6988 receives the text data to be synthesized through the UART interface or SPI interface communication mode, and realizes the conversion of text to speech (or TTS speech). Lamps, size positioning holes and pin header positions are consistent with the 5152 module.

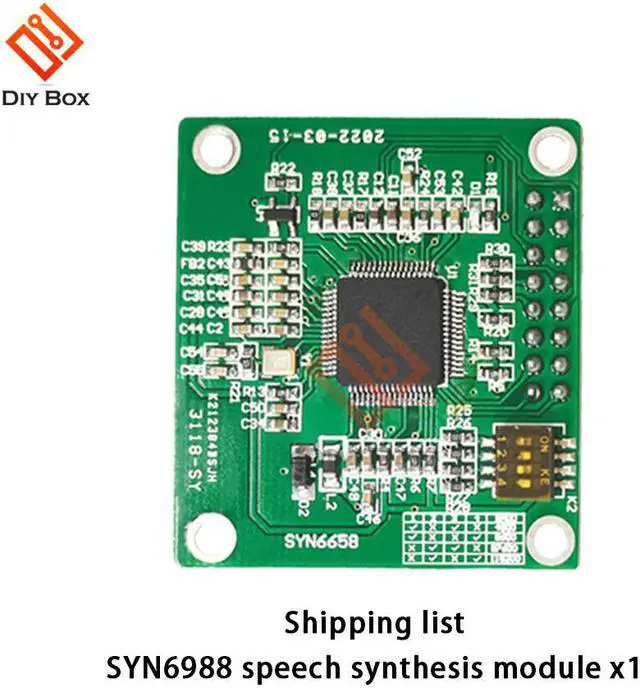

The package includes:
1*SYN6988 Chinese and English speech synthesis module
