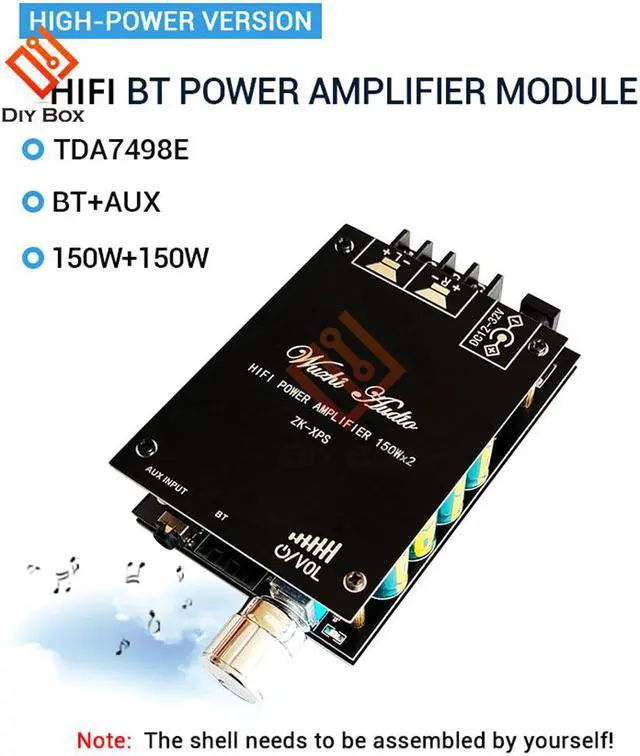

ZK-XPS 150WX2 For Bluetooth Audio Power Amplifier Board Module 2.0 Dual Channel Stereo TDA7498E

Certification:NONE
Origin:CN(Origin)
Compatible Audio & Video Equipment Style:Amplifier
Model Number:ZK-XPS 150WX2 Bluetooth Audio Power Amplifier Board Module
Bundle:Bundle 1
Dimensions (WxHxD)):11.50cm*5.80cm*2.50cm
Weight:0.143kg
Package:Yes

Features:
1: Widely used
2: Adopt TDA7498E chip scheme
3: Output with filter, HIFII sound quality
4: Heat sink heat dissipation, super power.
5: Undervoltage, overheating, overcurrent, short circuit protection
Product parameters:
Product name: 2.0 channel Bluetooth audio power amplifier module
Bluetooth version: 5.0 (unobstructed, 15 meters)

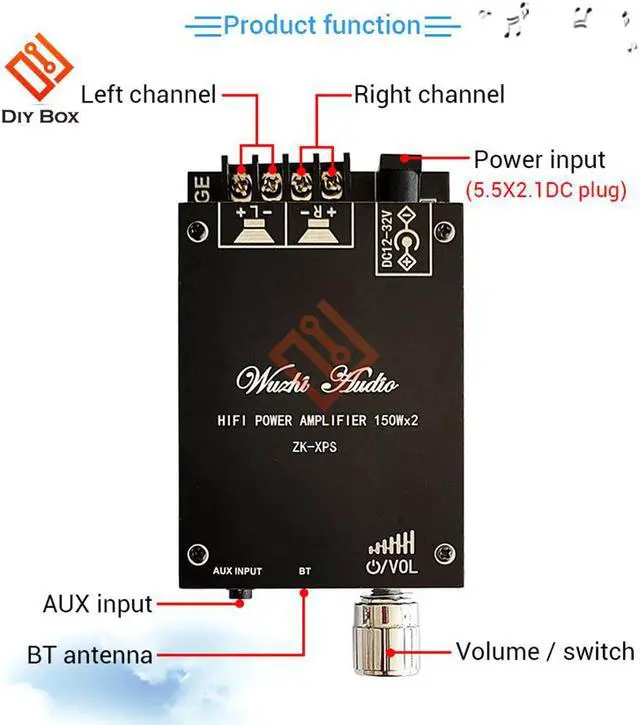

Input method: AUXBluetooth
Number of channels: 2.0 channels (left channel + right channel)
Amplifier chip: TDA7498E
Adapter power supply: DC 12~32V (under voltage protection below 9V, 12V power supply can also be supported)
Adapted speakers: 30-200W, 4-8
Output power: left and right channels 150W
Protection mechanism: under voltage, over heat, over current, short circuit protection

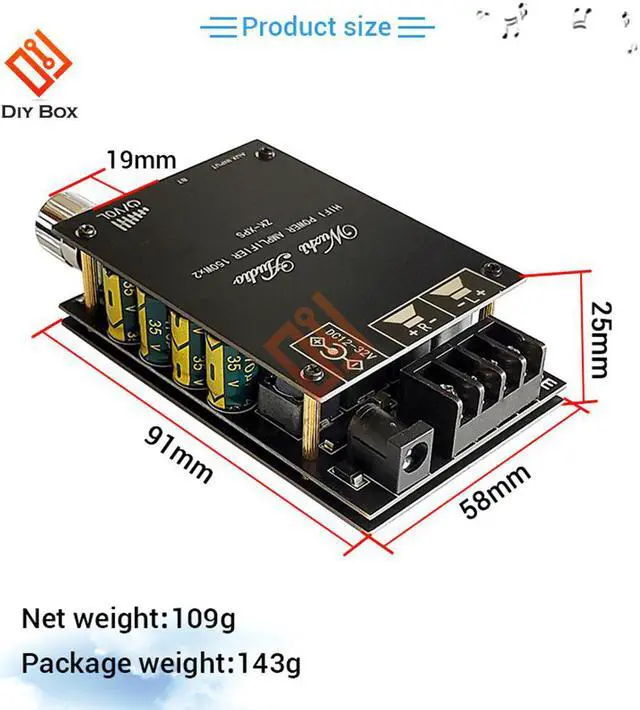

Product size: 110*58*25mm
Product weight: net weight 109g, including packaging 143g
Tip: When the audio signal input is large enough and the power supply voltage/current is large enough, there will be enough
Output Power!
The higher the power supply voltage, the greater the output power, and the smaller the speaker impedance, the greater the output power! Please make sure that the power of the adaptor is greater than the actual working power of the amplifier!
Package Included:
1* Power amplifier board module
