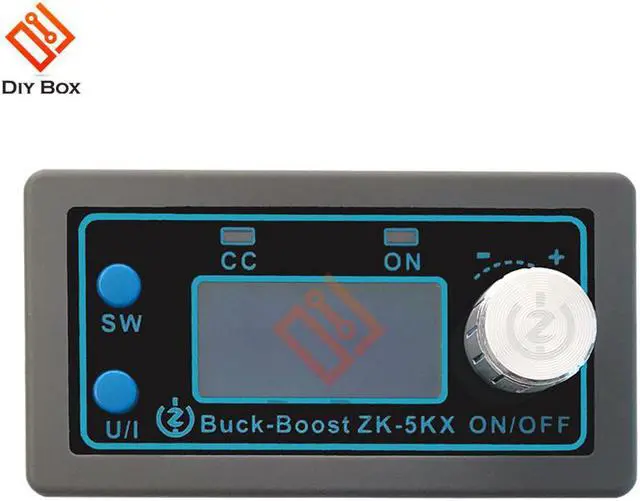

ZK-5KX DC DC Buck Boost Converter CC CV 0.6-36V 5A 5V 6V 12V 24V 80W Power Module Adjustable Regulated Laboratory Power Supply

Certification:NONE
Accessory Type:Accessories
Origin:CN(Origin)
Model Number:ZK-5KX Buck-boost module

Features:

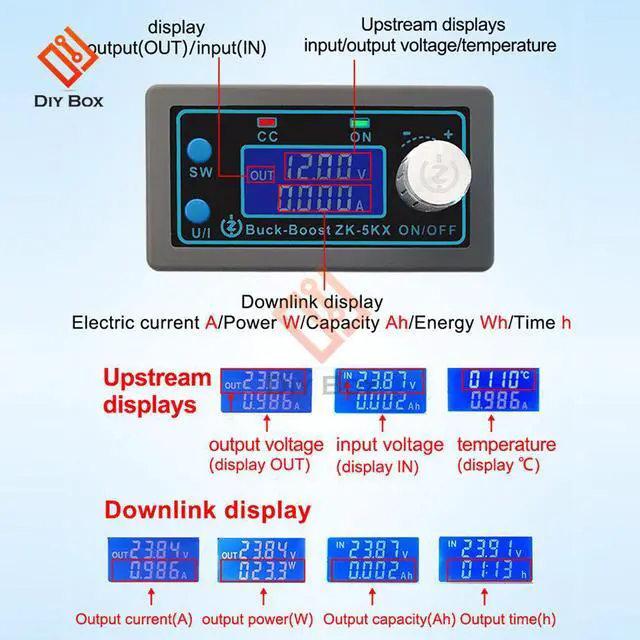

1. LCD can display input/output voltage/temperature, output current/output power/output capacity/output time;

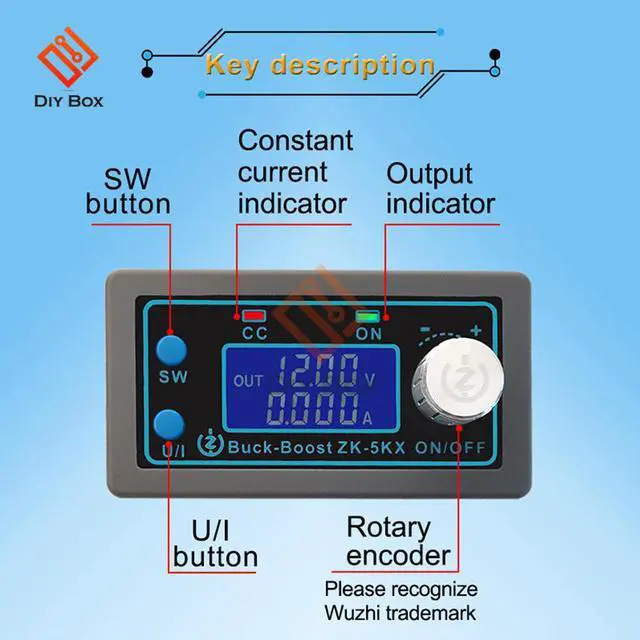

. Numerical control adjustment, precise and fast, can be boosted or stepped down, output voltage 0.6-36V can be adjusted arbitrarily, limit current 0-5A can be adjusted arbitrarily;
3. The input terminal is protected against reverse connection, and the reverse connection will not burn;
4. The output terminal is anti-backflow, and there is no need to add an anti-backflow diode when charging the
5. The module can be set to turn on/off by default;
6. Possess a variety of software protection mechanisms, and the protection threshold is adjustable. After the module's working parameters exceed the protection threshold, the output is automatically turned off.
7. The output ripple is small, with Tt filter;
8. Thicker heat sink, two-way ventilation, better heat dissipation effect.
9. Intelligent temperature control fan, automatically start and stop. When the temperature is greater than 50 degrees or the current is greater than 1A, the fan automatically starts.
Product parameters:
Input voltage: 6.0-36V
Output voltage: 0.6-36v
Output current: 5A max
Output power: 80w
Voltage display resolution: 0.01V
Current display resolution: 0.001A
Conversion efficiency: about 88%
Soft start: Yes (it may fail when the module with high power load is started)

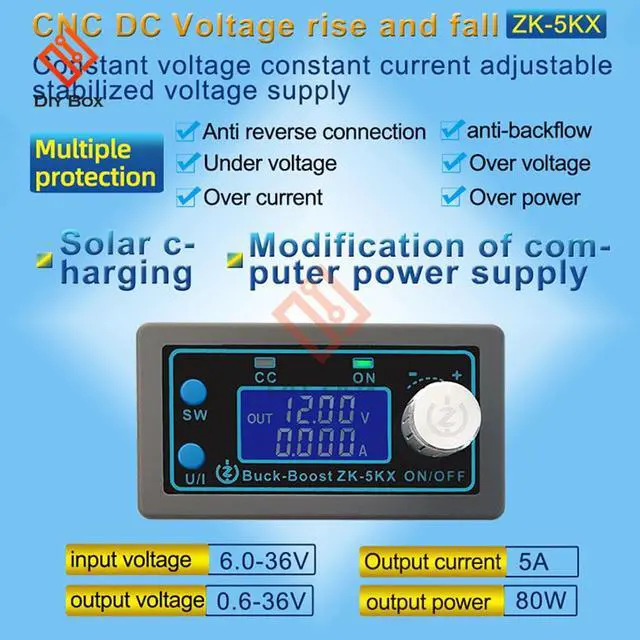

protection mechanism:
Input anti-reverse connection;
Output anti-backflow;
Input undervoltage protection (5.8-36V adjustable, default 5.8V)
Output overvoltage protection (0.6-36V adjustable, default 36V)
Output overcurrent protection (0 -5A adjustable, default 5A)
Output over power protection ((0 -80W adjustable, default 80W)
Over temperature protection (80-110°C adjustable, default 110°C)
Timeout protection (0 -100h adjustable, closed by default)
Over-capacity protection (0 -60Ah adjustable, closed by default)
Working frequency: 120KHZ
Size: length * width * height 79mm*43mm*48mm
Weight: about 119g (including packaging)
Package Included:
1* Boost-Boost DC Adjustable Power Module
