8 Key CAP1188 Capacitive Touch Sensor Module SPI I2C Captouch Sensor w/LEDs 8 Button / Key Interfaces DC 3V-5V for Arduino DIY

Certification:NONE
Origin:CN(Origin)
Model Number:Capacitive Touch Sensor Module
Type:Touch Screen
feature:CAP1188 Capacitive Touch Sensor Module

8 Key CAP1188 Capacitive Touch Sensor Module SPI I2C Captouch Sensor w/LEDs 8 Button / Key Interfaces DC 3V-5V for Arduino DIY
Description:
Capacitive touch sensor
Requires soldering of header pins
Perfect for Arduino project

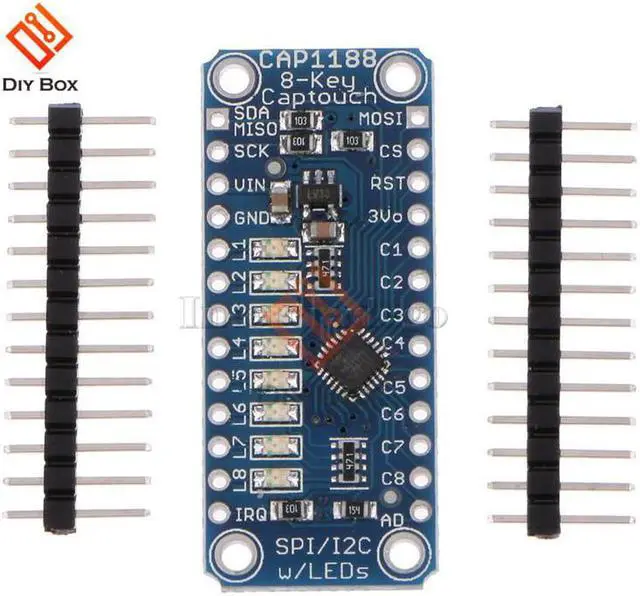

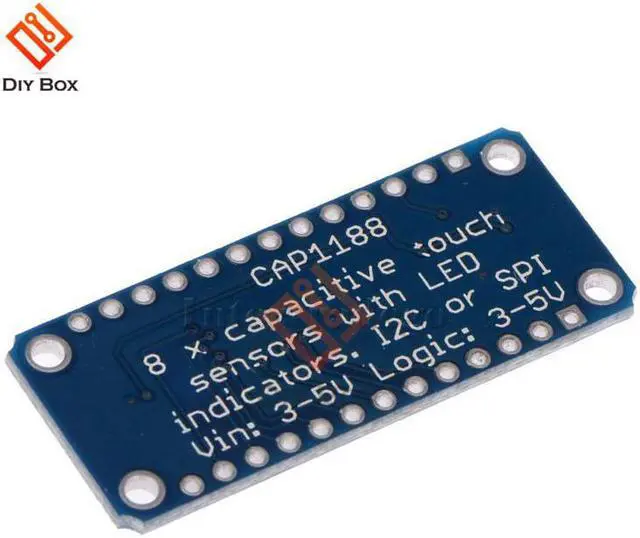

Comes with a fully assembled board, and a stick of 0.1" header so you can plug it into a breadboard.
Using this chip is a lot easier than doing the capacitive sensing with analog inputs
The CAP1188 has support for both I2C and SPI, so it easy to use with any microcontroller
If you are using I2C, you can select one of 5 addresses, for a total of 40 capacitive touch pads on one I2C 2-wire bus
Sensor Type: Capacitive Touch
Sensing range: 8 button / key interfaces
Sensitivity: I2C, SPI
Voltage - Supply: 3 V ~ 5V
Material: Plastic
Size: Approx.40*18*4mm

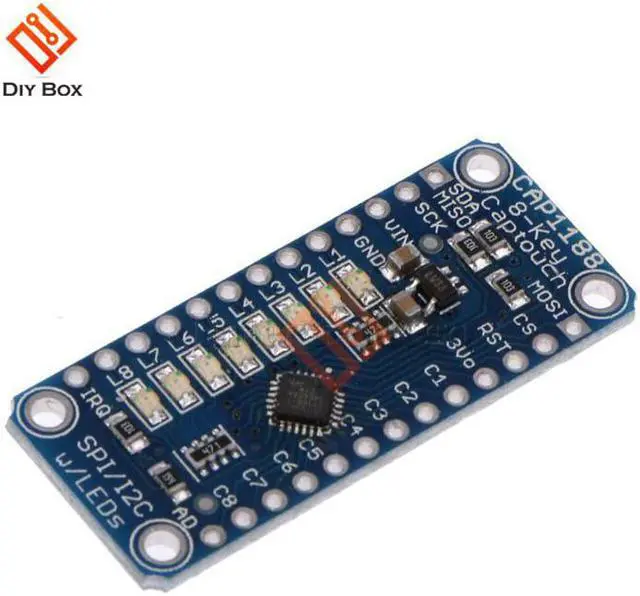

Add lots of touch sensors to your next microcontroller project with this easy-to-use 8-channel capacitive touch sensor breakout board, starring the CAP1188. This chip can handle up to 8 individual touch pads, and has a very nice feature that makes it stand out for us: it will light up the 8 onboard LEDs when the matching touch sensor fires to help you debug your sensor setup
Package Content:
1 x Capacitive touch sensor

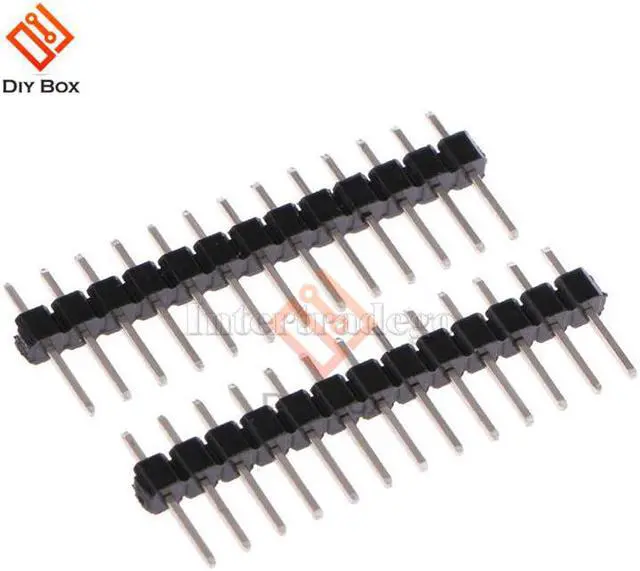

2 x Pin Header
