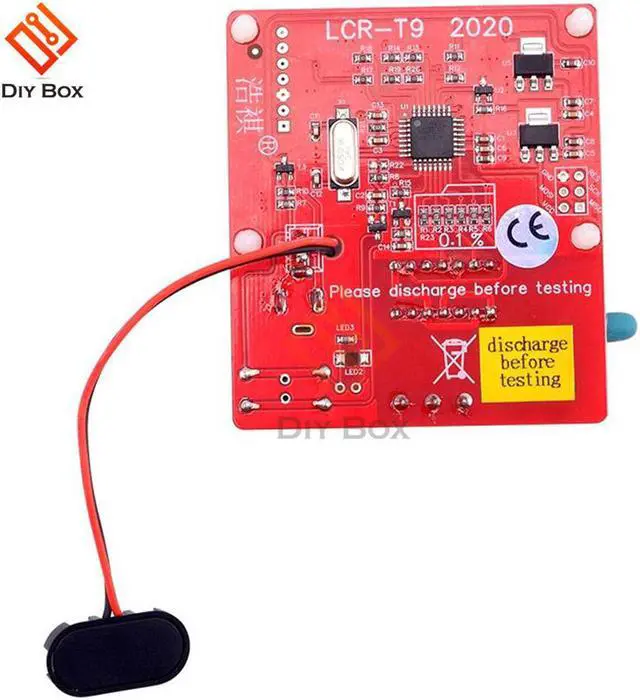

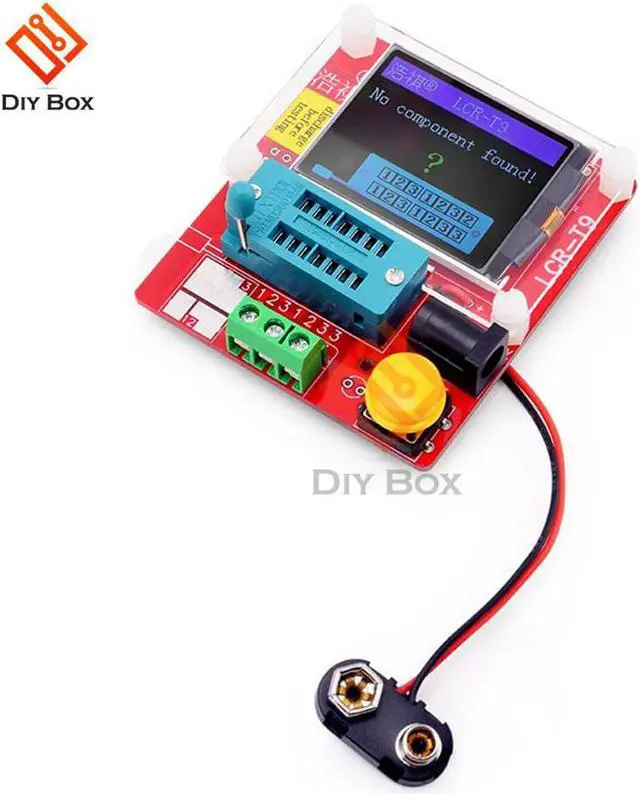

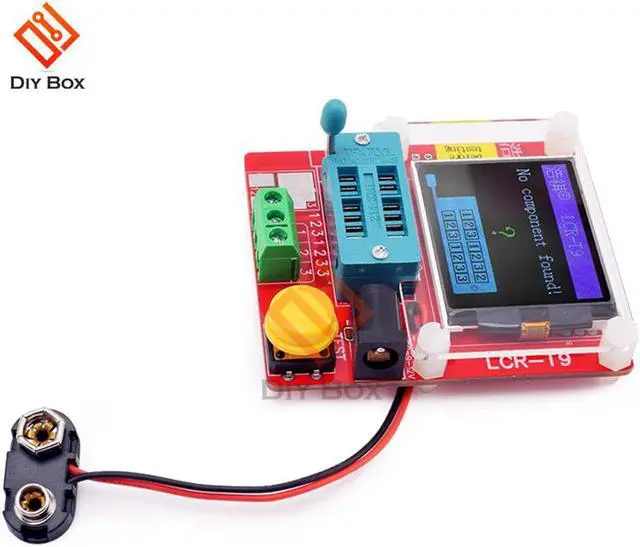

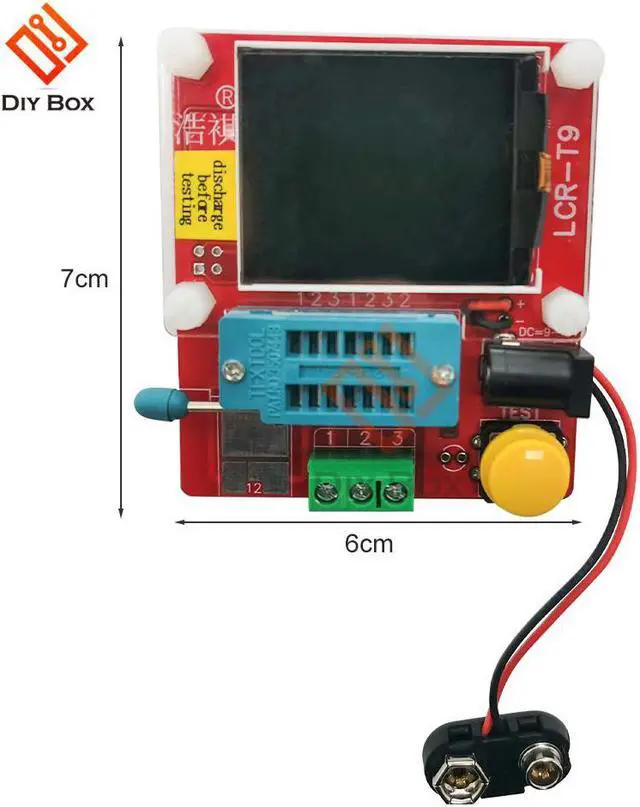

LCR-T9 Multifunction Transistor Meter TFT Graphic Display Tester Diode Capacitance Measure Electronic Industrial Components

Certification:NONE
Origin:CN(Origin)
State of Assembly:Almost Ready
Model Number:LCR-T9 Transistor Tester
Compatibility:Others
Camera Equipped:No

Features:
1. The measurement result adopts TFT graphic display
2. Automatic shutdown (shutdown time can be set)
3. Dual power supply mode
4. Support Chinese and English bilingual
5. Internal system voltage detection
Function:
LCR-T9 is a multi-function tester with TFT graphic display. It can automatically measure NPN and PNP transistors, N-channel and P-channel field effect transistors, diodes (including double diodes), resistance (including potentiometers), inductance, capacitance, thyristors, batteries (0.1-4.5V) and other components . With automatic calibration function. The measurement result adopts TFT graphic display, one-key operation, automatic shutdown (the shutdown time can be set, dual power supply mode, lithium voltage detection, support for Chinese and English bilingual, simple SMD component test area, external test port, internal system voltage detection.
The main parameters:
The external power interface is a DC5.5 interface, the power supply voltage is 9-12V, the inner positive pole and the outer negative pole
Note: Power requirements: voltage 9-12V, current 500mA.
Note: The charging input voltage is up to 12V, please do not use overvoltage, otherwise the tester will be damaged!
Note: Choose one of and power supply. They cannot be connected at the same time, otherwise it will cause the to explode and burn
The tester is dangerous!
Automatic shutdown after timeout
When the component test is completed and the automatic shutdown time is reached, the tester automatically shuts down.
Manual shutdown
In any state, long press the multi-function button to force the shutdown, including when the component is being measured.
The multi-function tester can automatically identify the component and pin arrangement, and the range can be automatically switched.
Package Included:
1* Transistor tester
