Bluetooth-compatible Power Amplifier Audio Board With Terminal 2x30W/20W Support AUX Input Change Name And Password

Certification:NONE
Origin:CN(Origin)
Compatible Audio & Video Equipment Style:Amplifier
Model Number:For Bluetooth 5.0 power amplifier board with terminal
Bundle:Bundle 1
Dimensions (WxHxD)):5.00cm*5.00cm*5.00cm
Weight:0.041kg
Package:Yes

Product selling points:
1. Precise size and exquisite appearance!
2. sound quality and compatibility.
3. Superior comprehensive performance.
4. Wide range of applications.
5. Boards and equipment are of excellent workmanship, sufficient materials and very reliable quality!
Parameters:
Power amplifier board size: 8.5x5 2CM
Fixed hole distance: 7.9x4.5m 6CM

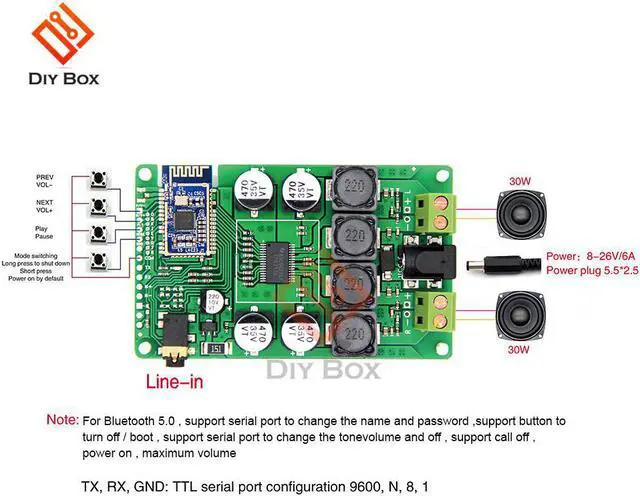

For Bluetooth 5.0 supports changing the name and password of the serial port, pressing the key to turn off / turn on, changing the prompt tone volume and turn off of the serial port, power on and turn on, no call function, and the default volume is the maximum

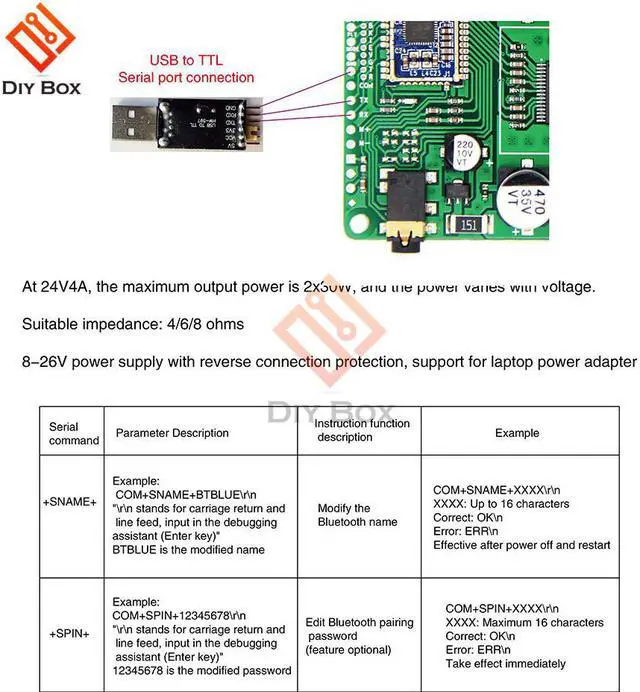

TX, Rx, GND: TTL serial port configuration 9600, N, 8, 1
At 24v4a, the maximum output power is 2x30w, the power changes with voltage, and the DC specification is 5.5 * 2.5
Suitable impedance: 4 / 6 / 8 ohms
8-26v power supply, with reverse connection protection, supporting power supply of notebook power adapter
Boards and devices are of excellent workmanship, sufficient materials and reliable quality
Package list:
For Bluetooth power amplifier board * 1
