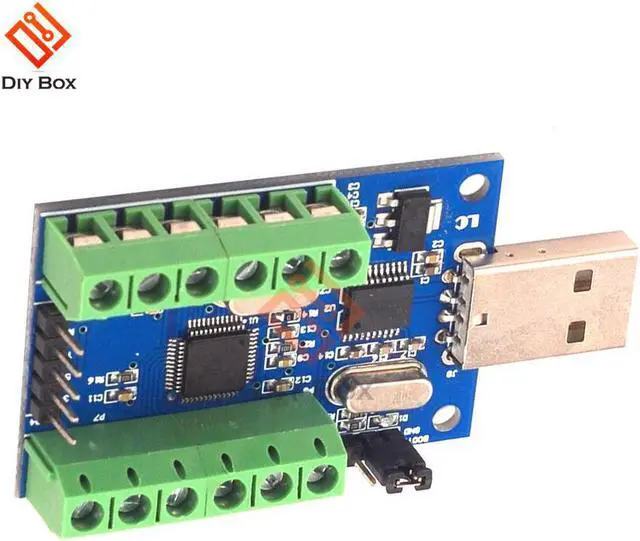

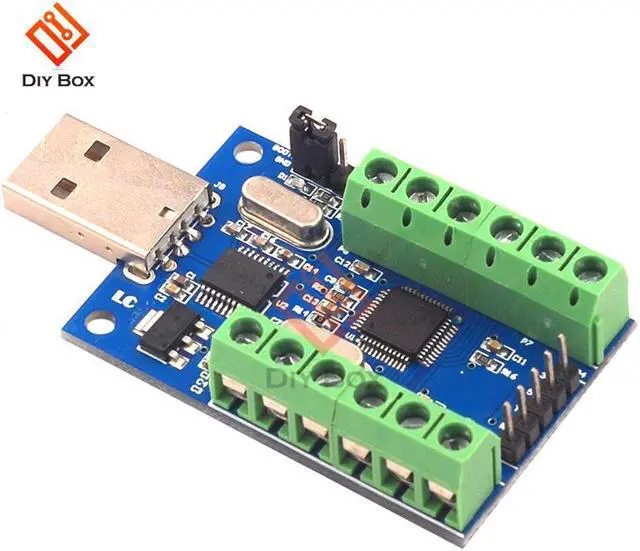

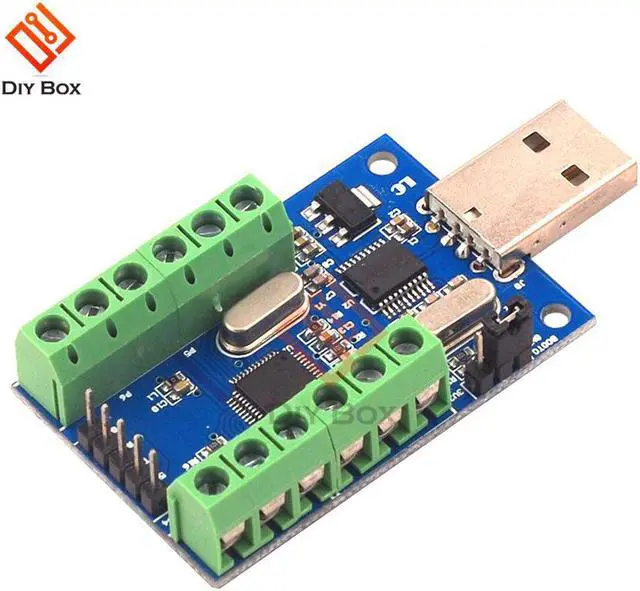

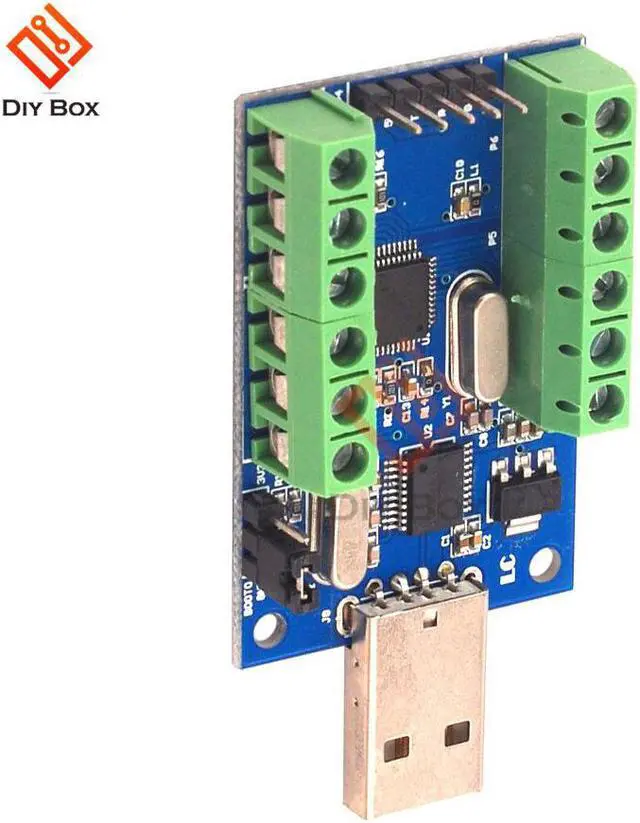

STM32F103C8T6 USB Interface 10 Channel 12Bit AD Sampling Data Acquisition STM32 UART Communication ADC Module

Origin:CN(Origin)
Model Number:10-channel communication ADC module

Product selling point:
1. Using high-quality materials, the quality is guaranteed
2. Easy to use, small size
3. Stable performance and long service life
4. Small and beautiful appearance
5. Wide range of applications
Parameter:
Onboard STM32F103C8T6 main control chip
Onboard CH340 serial port to USB chip, easy to view AD sampling results on PC through USBO
Reserved UART serial communication interface, can be connected to MCU
Analog input channel: 10 channel single-ended input
Sampling voltage input range: 0-3.3V
Power supply voltage: 5V/3.3V
Resolution: 12 Bit (4096)
Board size: 50*33mm
Precautions:
1. The sampling voltage input terminal INO-IN9 can be connected all or only a part. When a certain channel has no sampling voltage input, the output result of this channel is a random value. The unused port can also be modified by itself as a common I/ O port use
2. The voltage used cannot exceed 3.3V, otherwise the chip may be damaged;
The package includes:
10-channel communication ADC module*1
