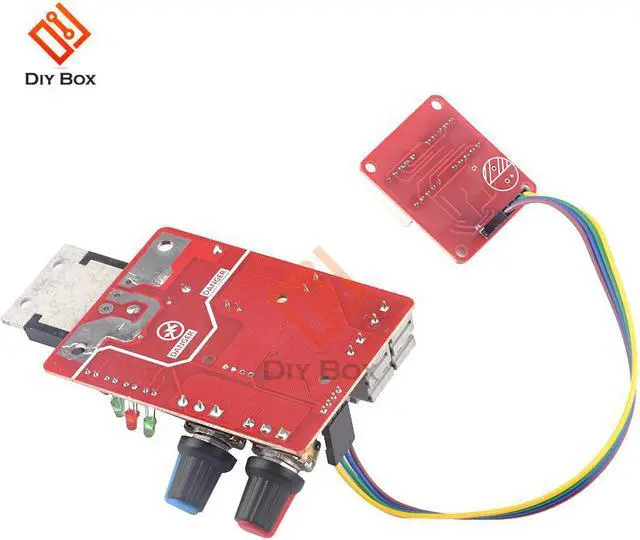

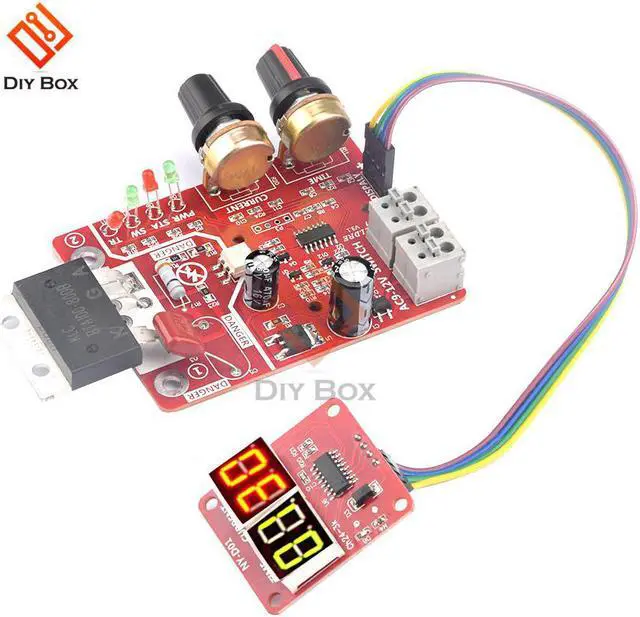

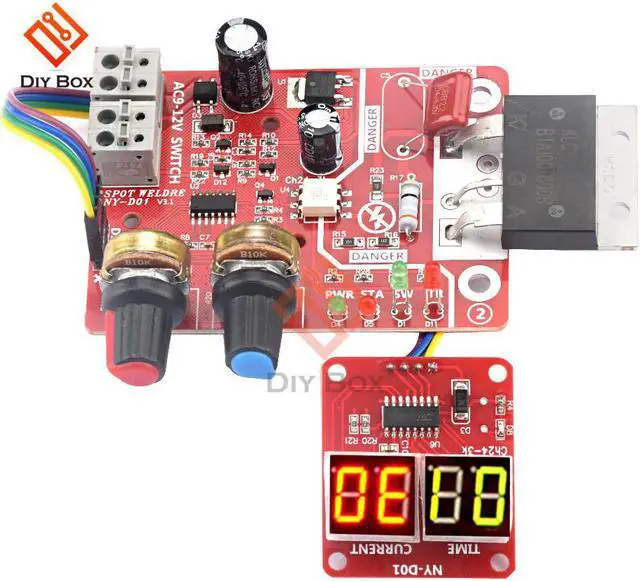

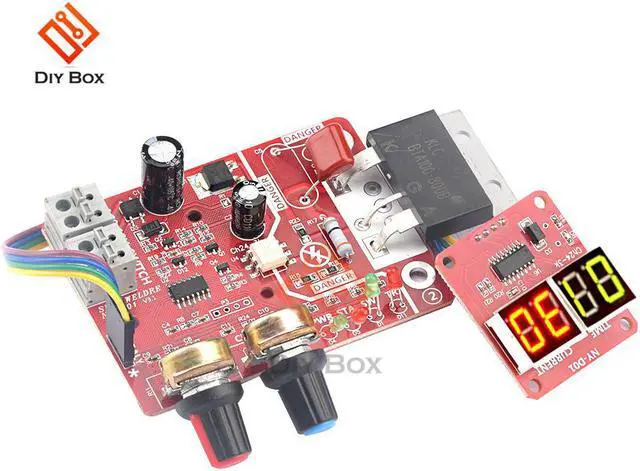

Spot Welders control Board 100A Digital display Spot welding time and current controller panel timing Ammeter NY-D01

Origin:CN(Origin)
Model Number:NY-D01 Spot Welder Control Board Manual

Introduction
NY-D01 spot welding machine control board is a controller developed for DIY or simple resistance welding machines. It adopts single-chip digital control and the principle of thyristor phase shift triggering, and the purpose of welding can be achieved by adjusting the time and current.
Technical Parameters
Note: The difference between the 100A board and the 40A board is that the SCRs are different. At the same time, the SCRs of the two boards are interchangeable and compatible, but it is strictly forbidden to use multiple SCRs in parallel or in series.
Refer to the wiring diagram
Some details
1:
How to use the screw-terminal: Press down the protrusion on the terminal, insert the terminal into the place pointed by the red arrow in the figure below, loosen the protrusion, and the wire will be compressed, which is very convenient to use.
2
:
Instructions on the back of the control panel
As shown in the figure below, in order to increase the over-flow of the control board, the back is specially tinned. This is not a trace of use, but a special processing procedure.
3
:
A brief introduction to the panel
4:Dimensions
