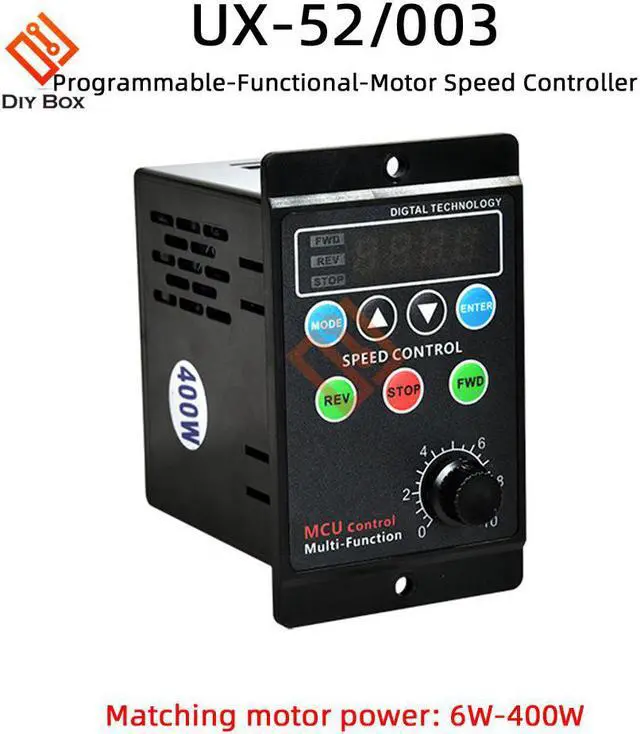

400W AC220V Motorspeed Regulator Controller Multifunctional Motor Speed Controller Display Rate Target Value Settable

Origin:CN(Origin)
Model Number:Motor governor

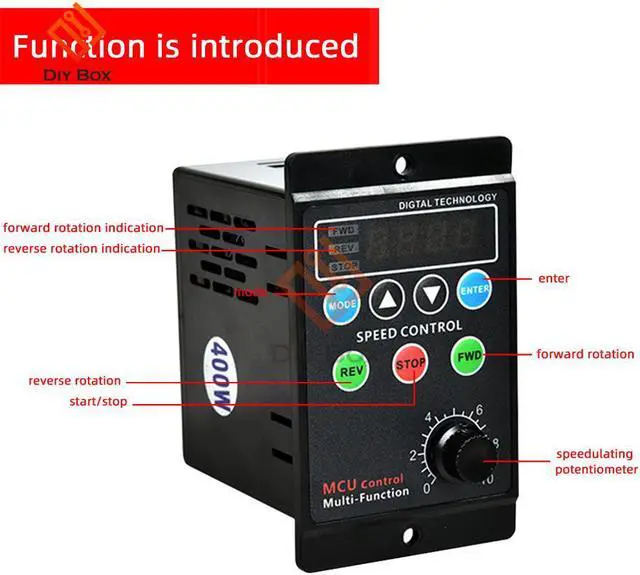

Features:
1. MCU digital control technology, multi-functional design, accurate speed control and stable performance.
2. The digital display menu option is adopted to change the settings quickly and easily.
3. The display rate can be set according to the user's display requirements, and the display target value can be automatically converted.
4. Slow acceleration and slow deceleration can be carried out.
5. It can be operated by the panel and controlled by an external switch.
6. The panel knob automatically matches the maximum speed, which is convenient and safe for adjustment and control.
7. Locked rotor protection function to prevent the motor and Governor from burning due to locked rotor. (this function can prevent locked rotation overload, but can not prevent unlocked rotation overload)
Parameters:
Voltage: AC 220V
Frequency: 50 / 60Hz
Motor output: 400W

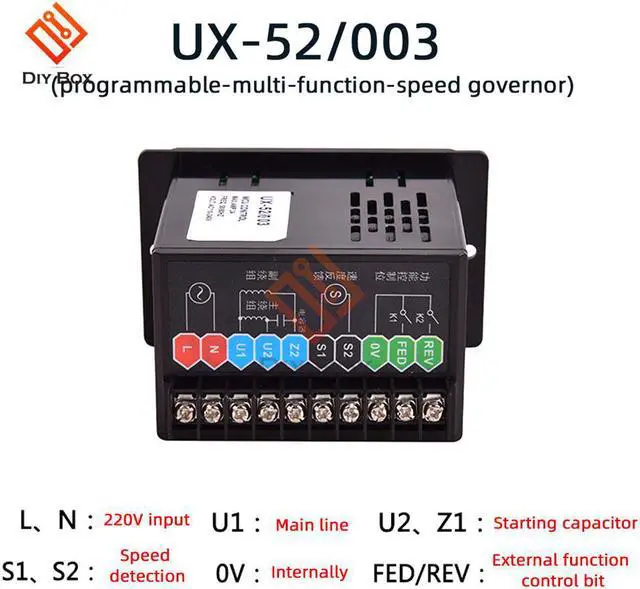

Instructions:
L. N: 20V input
U1: main line
U2, Z1: starting capacitor
S1, S2: speed detection
0V: internal ground
Fed / rev: external function control bit
Package Include:
Governor * 1
Instructions: 1
