Hi3861 5V Development Board Supports Hongmeng HarmonyOS Hongmeng System Hi3861V100 Chip

Demo Board Type:FPGA
Certification:NONE
Origin:CN(Origin)
Model Number:Hi3861 development board supports Hongmeng HarmonyOS Hongmeng system H

Features:
1: Using Hi3861V100 chip can be used in smart home
2: Support Hongmeng HarmonyOS Hongmeng system
3: Simple appearance will not look dazzling
4: Suitable for college students and electronic enthusiasts to learn
5: Widely used
Product Description:

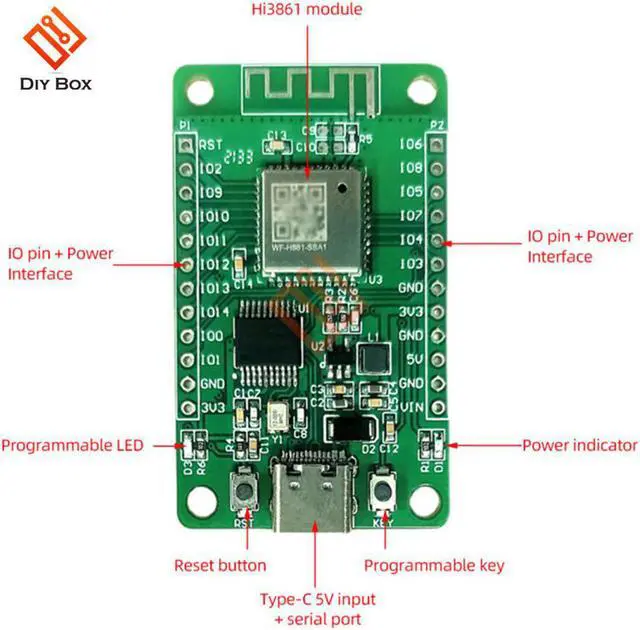

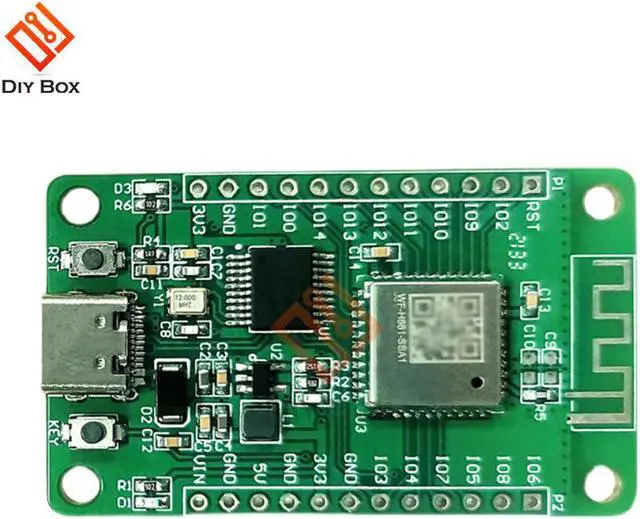

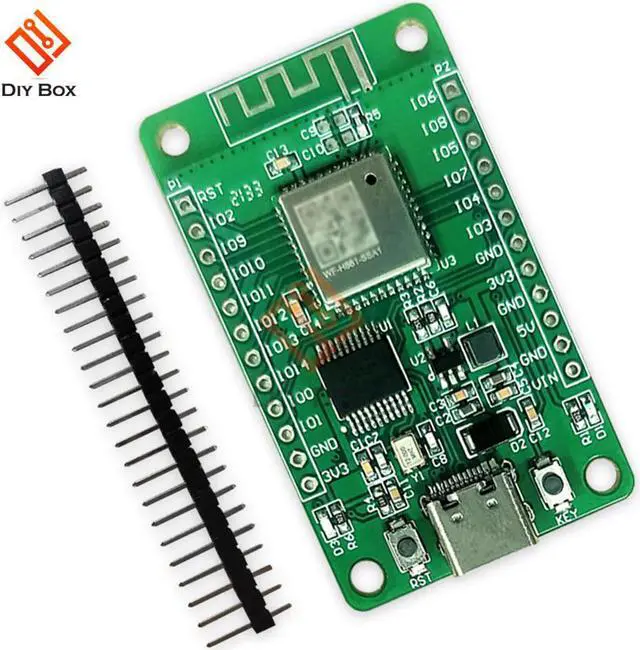

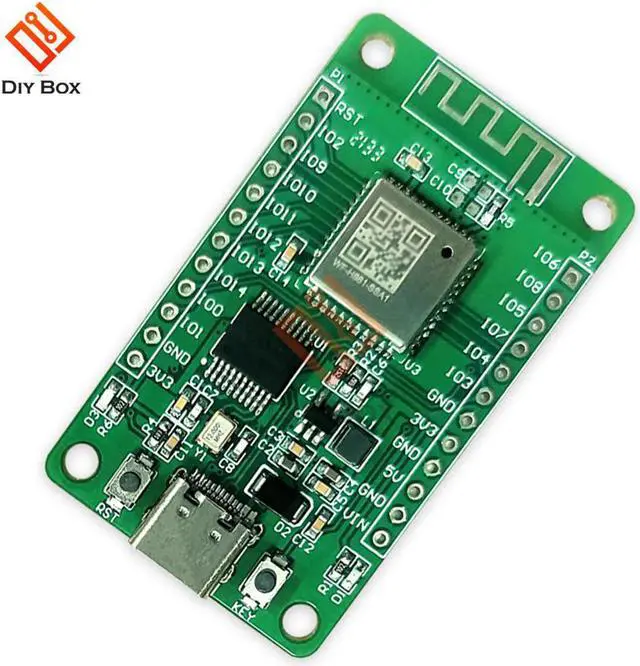

Hi3861 development board, Hi3861 chip, built-in 32-bit RISCV core, maximum operating frequency 160M, support Harmony OS. Development board leads to all IO ports, with 1 programmable LED light and 1 function button, onboard Type-C can supply power And serial port function. Simple appearance will not look dazzling, very suitable for college students and geek enthusiasts to learn, can be used in smart home scenarios.
Product parameters:
1. Hi3861 highly integrated 2.4GHz WiFi chip
2. Working voltage 5V
3. Main frequency 160MHz
4. SRAM 352KB, ROM 288KB, 2M Flash
5. Support IEEE 802.11b/g/n
6. 1 SDIO interface, 2 SPI interfaces, 2 I2C interfaces, 3 UART interfaces, 15 GPIO interfaces, 7 ADC inputs, 6 PWM, 1 I2S interface (Note: The above interfaces are implemented by multiplexing)
7. Board size: 50*31mm weight: 7g
Package Included:
1* Development board
