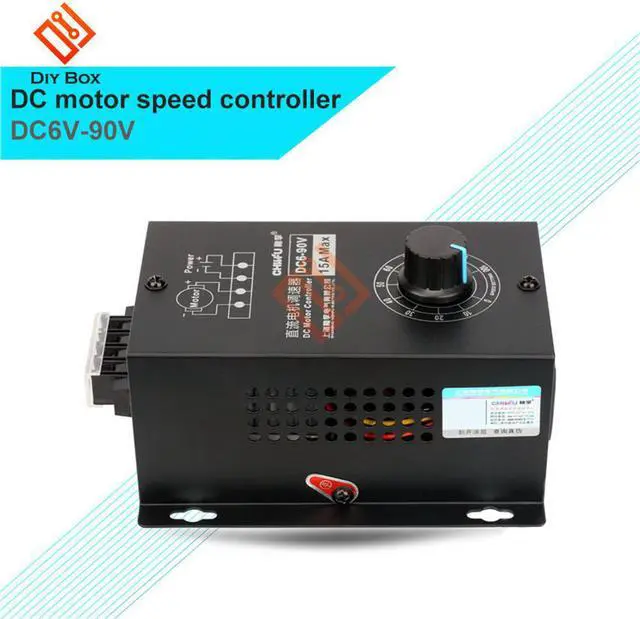

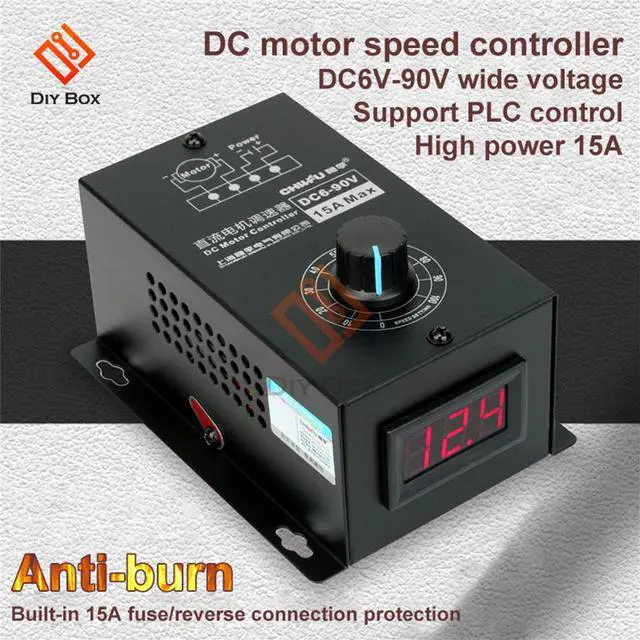

DC 6-90V PWM DC Motor Speed Controller Regulator PLC 15A Governor Volt Display

Certification:NONE
Origin:CN(Origin)
Model Number:DC6V-90V PWM DC motor speed controller 15A

Product introduction:
Applicable voltage: DC (DC6V-90V wide voltage) can not be connected to AC!
Applicable current: rated current 8A (maximum current 15A) quiescent current 0.005A (standby state)
Power range: 0.01-1000W
Voltage regulation range: PWM output range 0%-100%, the motor is adjusted to stop and maximum speed operation
PWM frequency: 16kHz

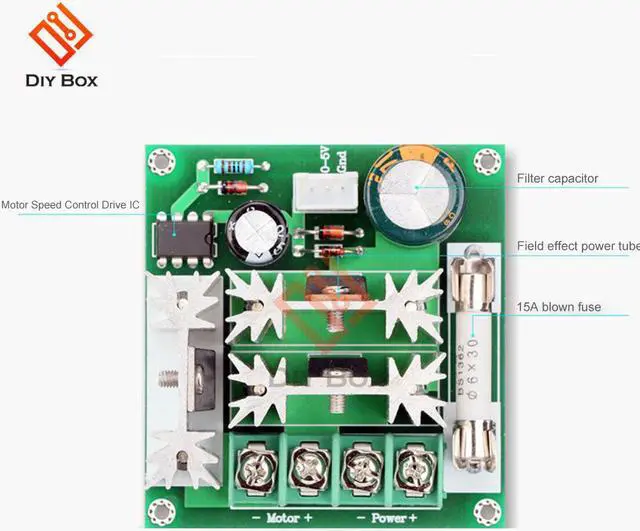

Fuse specifications: 15A ceramic arc extinguishing fast melting type 1
Positive and negative direction of the motor: the motor can be connected to the positive and negative, and the direction can be changed by adjusting the line sequence
Precautions and instructions for use
1. The input of the DC motor speed controller is direct current, and cannot be directly connected to alternating current (such as household 220V alternating current), otherwise it will burn out
2. The positive and negative poles of the DC power supply cannot be reversed, otherwise the governor will be damaged.
3. The motor can be positive or negative, when the running direction is inconsistent with the expectation. The direction can be changed by adjusting the line sequence.

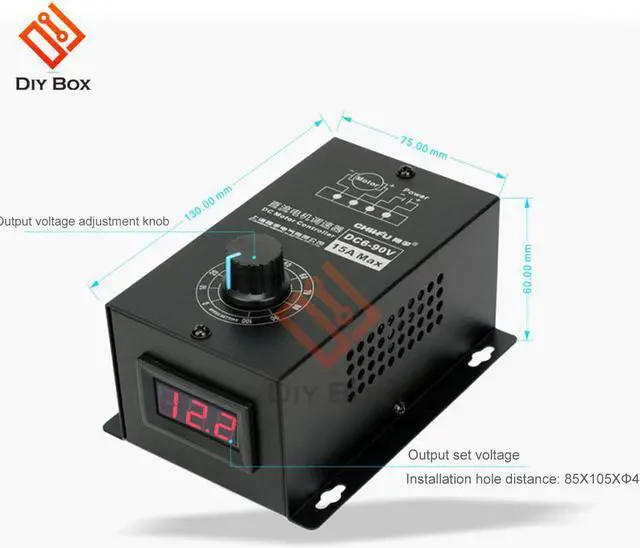

4. The potentiometer knob can change the duty cycle of the governor output, thereby changing the motor speed.
Note
: Different voltage input matches power range
DC6V60W DC12V120W DC24V240W DC36V360W
DC48V480W DC60V
Package Included:
DC motor speed controller X1
