128*64 DOTS Yellow Green LCD module 5V Screen 12864 LCD With Backlight ST7920 Parallel Port For Arduino Raspberry Pi
- 128*64 DOTS Yellow Green LCD module 5V Screen 12864 LCD With Backlight ST7920 Parallel Port For Arduino Raspberry Pi
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Model Number:12864 LCD Display Module
Specification:

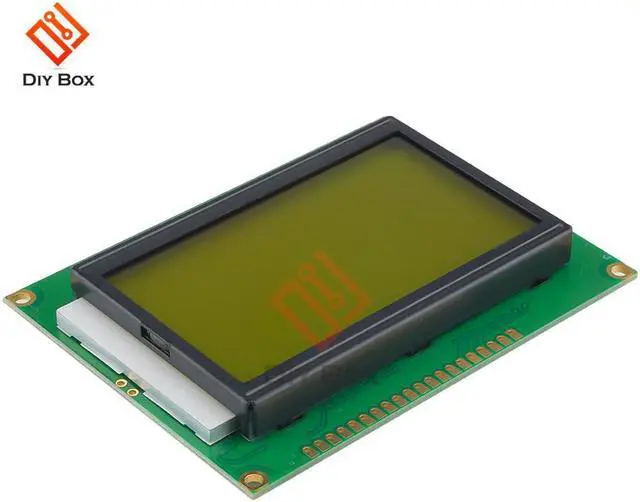

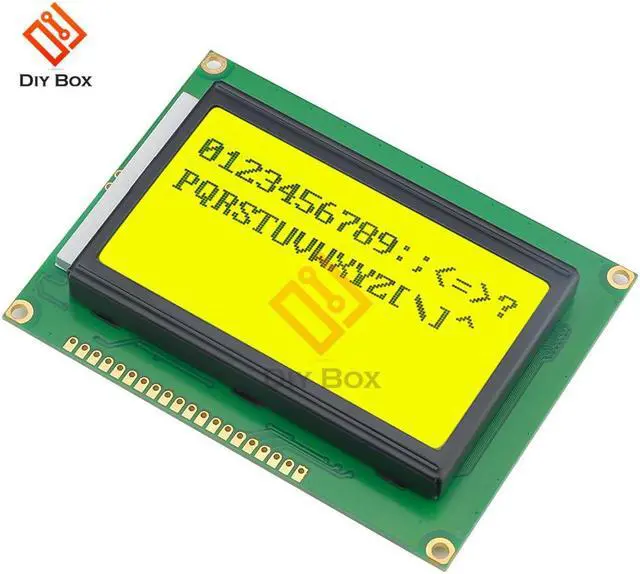

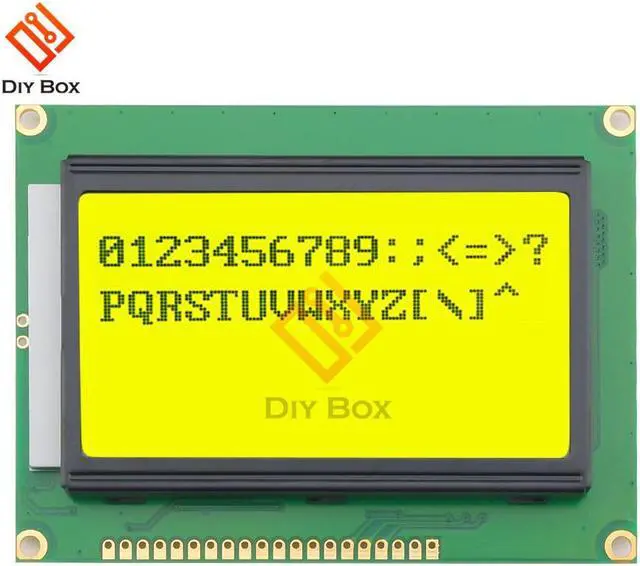

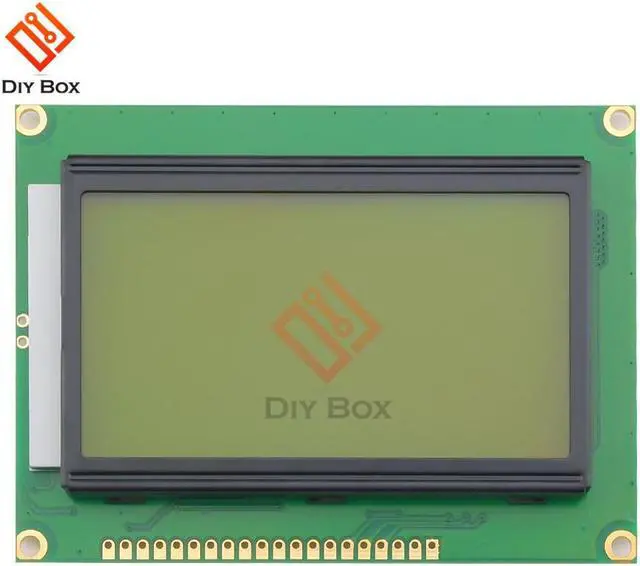

12864 LCD Display Module 128x64 Dots Graphic Backlight.
LCD display module with yellow backlight.
Small and light appearance, it is easy and convenient to use.
Suitable for copiers, fax machines, printers, industrial test equipment,networking equipment etc.
Backlight: Yellow
Driver: ST7920
View area: 7.0cm(L) x 4.0cm(W)
Dots size: 0.48mm (L) x 0.48mm (W)
Dots pitch: 0.52mm (L) x 0.52mm (W)
LCD type: STN (Yellow)
Viewing angle: 6 o'clock
Operating temperature: -20 -70
Storage temperature: -30 -80
Package Included: 1 * 12864 LCD Module
Model Number:12864 LCD Display Module
Specification:
12864 LCD Display Module 128x64 Dots Graphic Backlight.
LCD display module with yellow backlight.
Small and light appearance, it is easy and convenient to use.
Suitable for copiers, fax machines, printers, industrial test equipment,networking equipment etc.
Backlight: Yellow
Driver: ST7920
View area: 7.0cm(L) x 4.0cm(W)
Dots size: 0.48mm (L) x 0.48mm (W)
Dots pitch: 0.52mm (L) x 0.52mm (W)
LCD type: STN (Yellow)
Viewing angle: 6 o'clock
Operating temperature: -20 -70
Storage temperature: -30 -80
Package Included: 1 * 12864 LCD Module
