ESP8266 Clock Module LC-ESP-CLOCK-18650 8266 Clock Development Board Can Be Powered By 18650 Without

Demo Board Type:FPGA
Certification:NONE
Origin:CN(Origin)
Model Number:ESP8266 clock module 8266 clock development board
Intergrated Feature:WiFi 802.11b/g/n

LC-ESP-CLOCK-18650 ESP8266 clock module 8266 clock development board can be powered by 18650  Without
Overview:

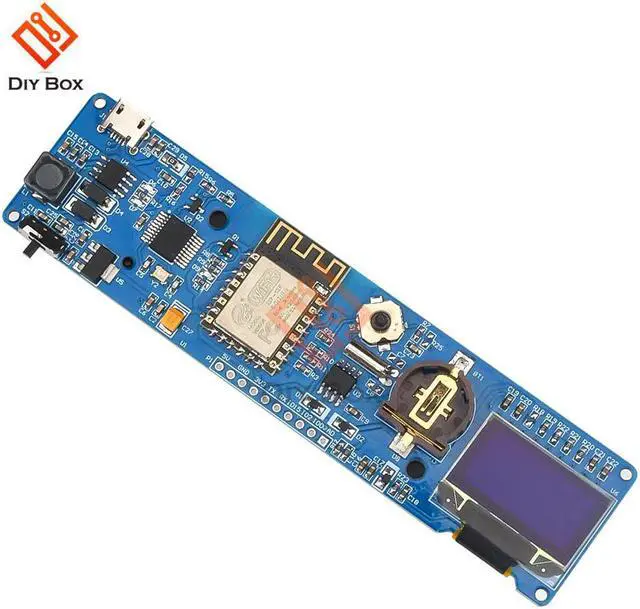

ESP8266 clock module, using ESP-12F module with ESP8266 as the core as the main control; onboard a 0.96 inch OLED, clock chip, five-way button, single-cell 18650 lithium charging chip; the can be charged through the microUSB interface Charging and programming ESP8266. Users can develop a different wifi clock based on their own ideas.
Features:
0.96 inch OLED can display the time intuitively
Clock can be calibrated via wifi
Access to 18650 lithium can be used anytime, anywhere
Can charge the 18650 lithium , there is a charging indicator to indicate the charging status
Leaded pins can be connected to other equipment module development
microUSB automatic programming function
Five-way button connected to five pins is equivalent to five buttons
Hardware introduction and description:

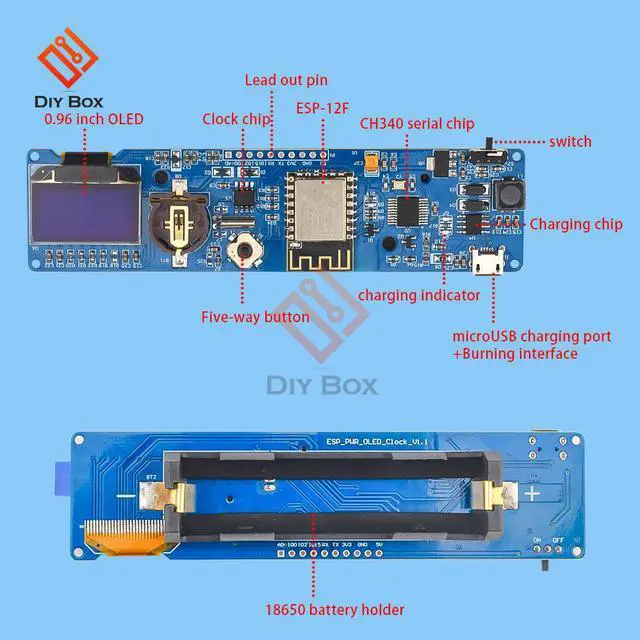

Description of the physical picture of the board function:
Test introduction:
Open the burning software flash_download_tools_v3.6.7, open the corresponding .bin file in the firmware folder, click star and wait for the automatic burning to complete and reset. Firmware 1 burning instructions
Note: Remove the 18650 lithium when programming to avoid programming failure. It is best to use a charging current of 500mA to 1A for charging with usb. If the current is too high, the charging chip may generate serious heat. Please install the positive and negative poles of the correctly, the charging chip will be damaged in the moment when the is installed incorrectly, and it may cause the to explode. Pay special attention!!!
