For Bluetooth 5.0 Power Amplifier Board 2x15W/10W Support AUX Audio Input Support Change Name And Password

Certification:NONE
Origin:CN(Origin)
Compatible Audio & Video Equipment Style:Amplifier
Model Number:For Bluetooth 5.0 power amplifier board
Bundle:Bundle 1
Dimensions (WxHxD)):5.00cm*5.00cm*5.00cm
Weight:0.020kg
Package:Yes

Product selling points:
1. Precise size and exquisite appearance!
2. sound quality and compatibility.
3. Superior comprehensive performance.
4. The Bluetooth module adopts no driver mode. Customers can quickly realize wireless music streaming and enjoy the fun of wireless music by connecting the module to the application product.
5. Boards and equipment are of excellent workmanship, sufficient materials and very reliable quality!
Parameters:

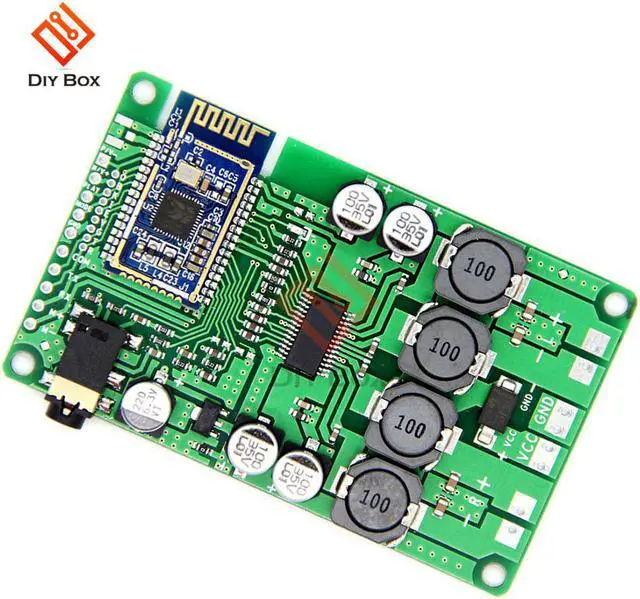

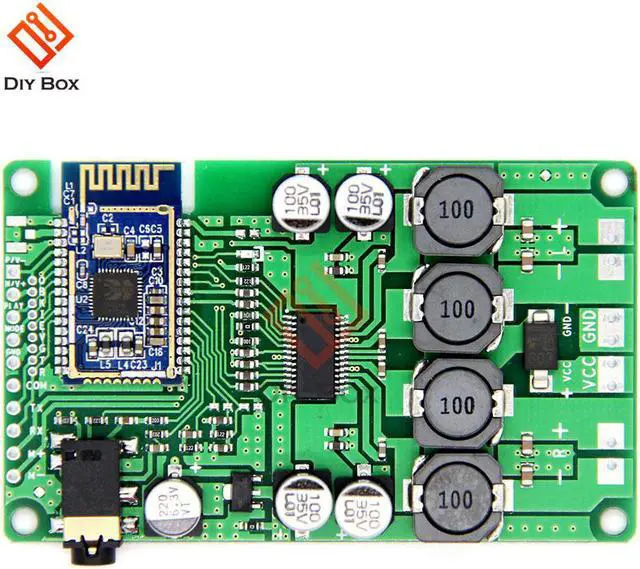

Power amplifier board size: 7.1 * 4.3cm
Fixed hole distance: 6.6 * 3.8cm

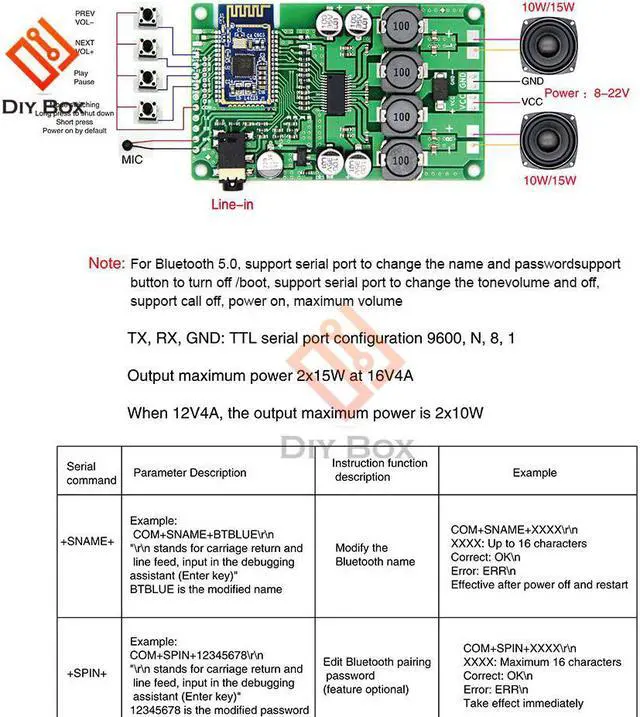

Bluetooth 5.0: support serial port to change name and password, press key to turn off / turn on, serial port to change prompt tone volume and turn off, call off, power on and turn on. The default volume is the maximum
TX, Rx, GND: TTL serial port configuration 9600, N, 8, 1
At 16v4a, the maximum output power is 2x15w
At 12v4a, the maximum output power is 2x10w

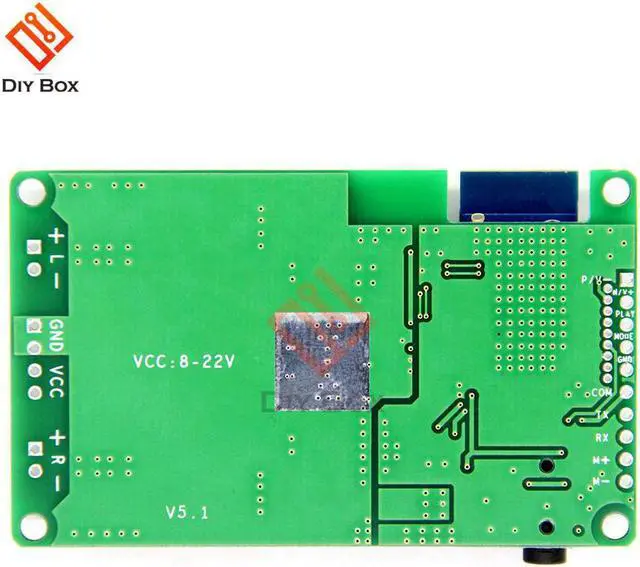

8-22v power supply, with reverse connection protection, supporting power supply boards and devices of notebook power adapter
M + and M - are the positive and negative of the connector
Package list:
Bluetooth 5.0 power amplifier board * 1
