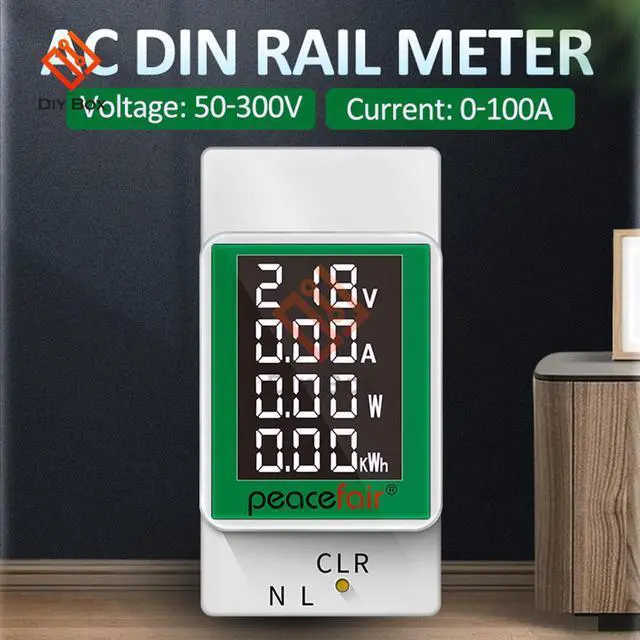

AC Digital Display Multi-function Rail Meter Voltage And Current Meter AC50-300V/100A Tester 35MM Guide Rail Slot

Certification:NONE
Origin:CN(Origin)
State of Assembly:Ready-to-Go
Model Number:AC digital display multi-function rail meter voltage and current meter
Compatibility:Others
Camera Equipped:No

Features:
1: The structure is clear at a glance
2: Non-contact, safer
3: Built-in CT screw-wiring prevents poor contact and heat
4: High-grade PC fuel resistant, high temperature resistant and non-flammable
5: Plug and play, simple and efficient, equipped with standard connectors to prevent wrong connection and short circuit
6: Widely used
Function:
Measure AC voltage, current, active power, electricity and display it on the LCD screen.
UI:

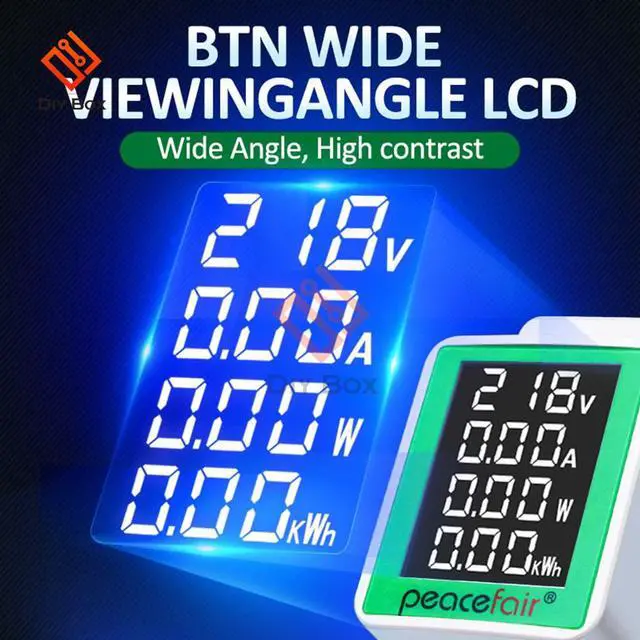

BTN wide viewing angle LCD screen: voltage + current + active power + electricity + white backlight
1: Voltage
Measuring range: AC50~300V Starting voltage: 50V Measuring accuracy: ±1%
2: Current
Measuring range: 0~100A
Starting current: 0.02A
Measurement accuracy: ±1%
Display format:
3. Active power
Measuring range: 0~30kW
Starting power: 0.5W
Measurement accuracy: ±1%
Display format:
10000W display such as: 30.0kW
4: Electricity
Measuring range: 0~1999kwh
Overflow retention, unless manually cleared
Measurement accuracy: ±1%
Display format:
Other functions:
1. Backlight control:
Short press the button to turn on or off the backlight
2. Reset the :
Press and hold the button for more than 3 seconds until the flashes, release the button and short press again to reset the , otherwise it will stop flashing after 3 seconds and the will not be reset
3. Data storage:
Power, backlight status can be saved when power off
