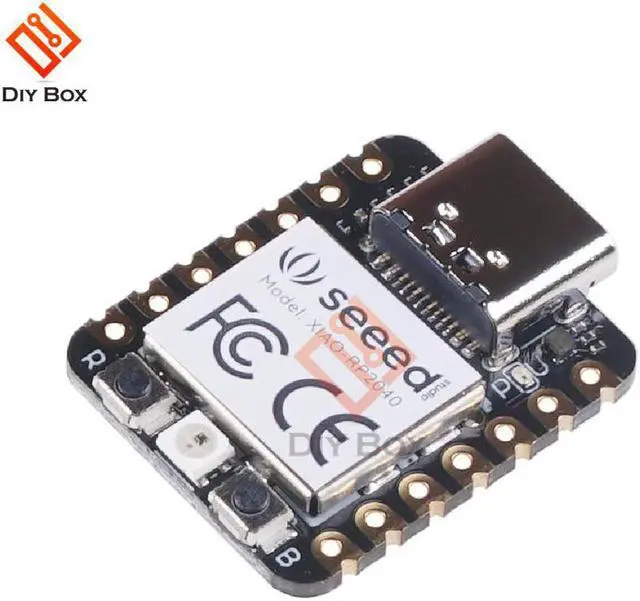

Seeeduino XIAO 2040 Microcontroller Cortex M0 + Nano 133MHz SPI I2C UART Interface Development Board for Arduino Micropython

Demo Board Type:FPGA
Certification:CE
Origin:CN(Origin)
Model Number:seeeduino XIAO 2040 microcontroller development board

Product selling point:
1. Using high-quality materials, the quality is guaranteed
2. Powerful MCU: Dual-core ARM Cortex M0+ processor with flexible clock running up to 133 MHz
3. Rich on-chip resources: 264KB SRAM, 2MB onboard Flash
4. Flexible compatibility: support Micropython/Arduino/CircuitPython
5.Easy project operation: Breadboard friendly and SMD design, no components on the back
6. Small size: as small as thumb (20x17.5mm), suitable for wearable devices and small projects

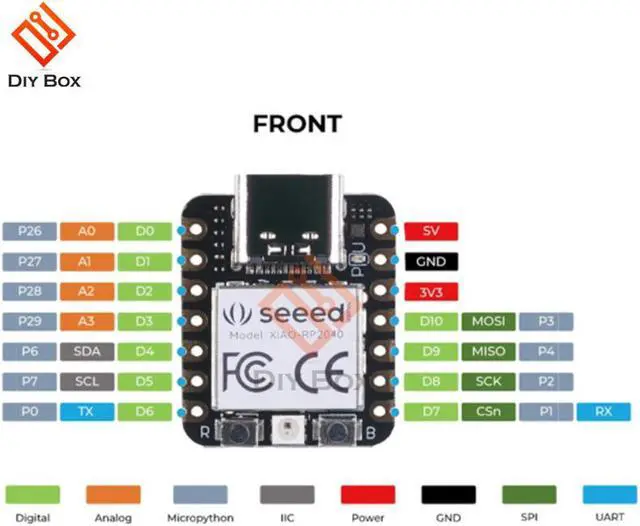

7. Various interfaces: 11 digital pins, 4 analog pins, 11 PWM pins, 1 I2C interface, 1 UART interface, 1 SPI interface, 1 SWD Bonding pad interface
8. Wide compatibility: pin compatible with Seeeduino XIAO and support expansion board for Seeeduino XIAO
Parameter:
CPU: Dual-core ARM Cortex M0+ processor with flexible clock up to 133 MHz
Storage: 264KB SRAM and 2MB onboard flash
Input/Output pins: 11 digital pins, 4 analog pins, 11 PWM pins
Interface: 1 I2C interface, 1 UART interface, 1 SPI interface, 1 SWD pad interface

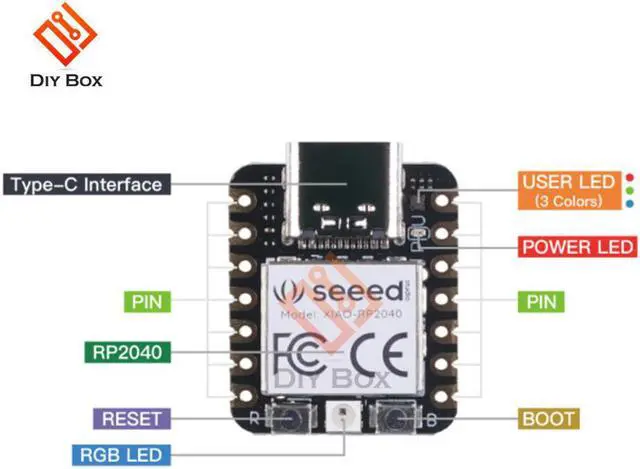

Buttons: 1 RESET button, 1 BOOT button
Power supply & download interface: USB Type-C interface
Application:
Wearable device
Rapid prototyping (direct connection to extended PCB as minimal system)
Perfect for all projects that require a mini Arduino
DIY keyboard
USB development (USB to multi-channel TTL/USB host mode, etc.)
Package Included:
1* Development board
