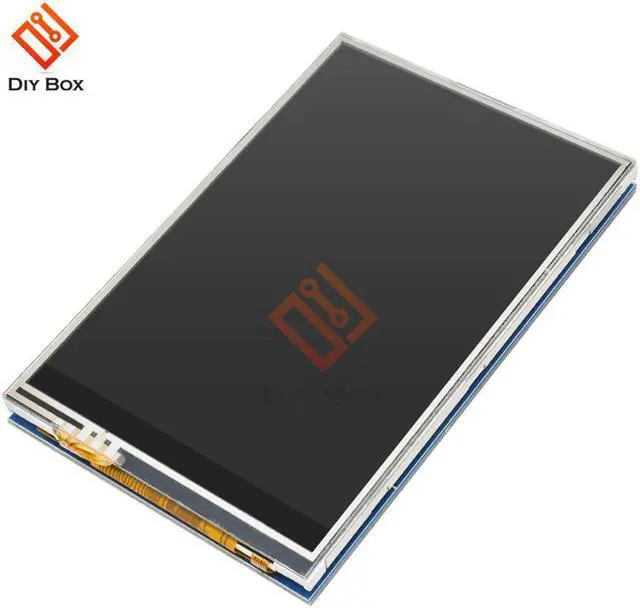

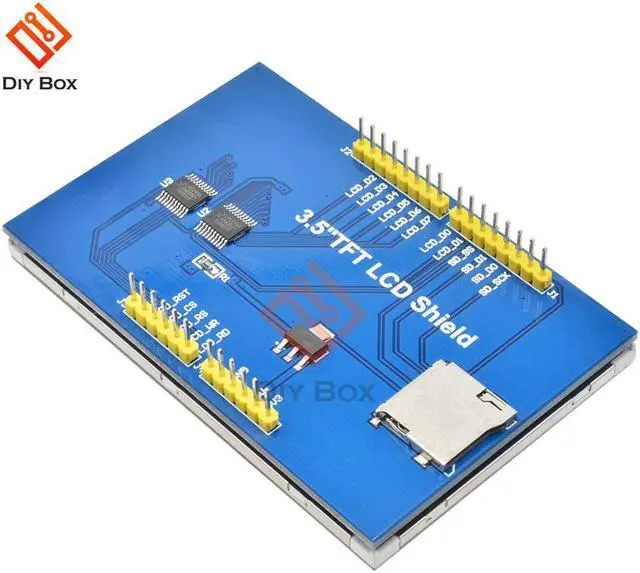

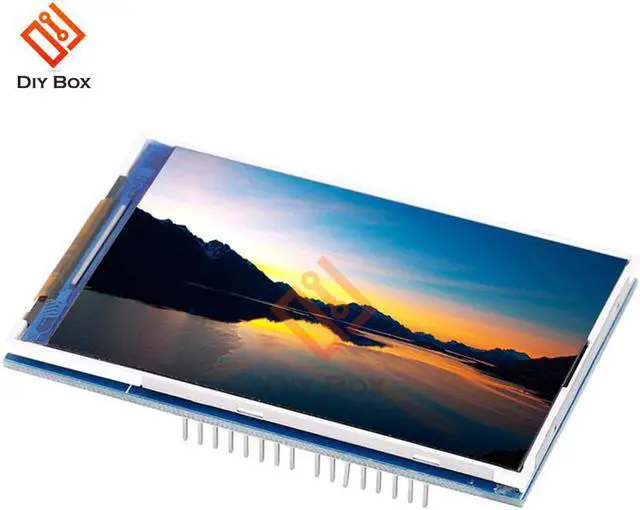

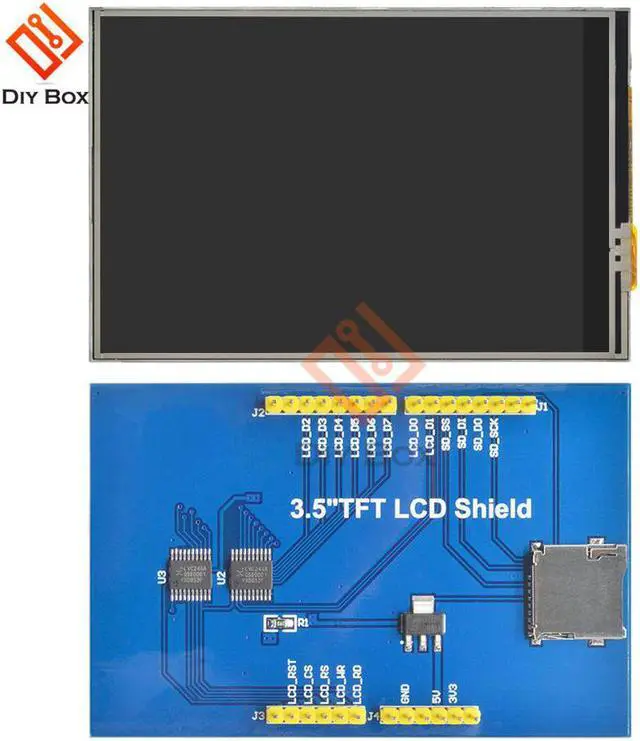

3.5Inch 480x320 TFT LCD Display HD Color Screen Module LI9486 Controller For Arduino MEGA2560 Board Without Touch Panel
- 3.5Inch 480x320 TFT LCD Display HD Color Screen Module LI9486 Controller For Arduino MEGA2560 Board Without Touch Panel
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Model Number:3.5 inch TFT LCD Screen Module
320X480 TFT LCD Screen Module 3.5 inch RGB Full Color Display ILI9486 Driver IC for Arduino Mega2560 without Touch Screen
Description
Supports development boards such as Arduino and Mega2560 for plug-in use without wiring
480X320 resolution, clear display, support for touch function
Support 16-bit RGB 65K color display, display rich colors
8-bit parallel bus, faster than serial SPI refresh
On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
Easy to expand the experiment with SD card slot
Display Color: RGB 65K color
Screen Size : 3.5(inch)
Type: TFT
Driver IC : ILI9486
Resolution: 480*320 (Pixel)
Module Interface: 8-bit parallel interface
Active Area: 73.44*48.96(mm)
Module PCB Size: 85.49*55.63(mm)
Operating Temperature: -20~70
Storage Temperature: -40~70
Operating Voltage: 5V/3.3V
Power Consumption: TBD
Model Number:3.5 inch TFT LCD Screen Module
320X480 TFT LCD Screen Module 3.5 inch RGB Full Color Display ILI9486 Driver IC for Arduino Mega2560 without Touch Screen
Description
Supports development boards such as Arduino and Mega2560 for plug-in use without wiring
480X320 resolution, clear display, support for touch function
Support 16-bit RGB 65K color display, display rich colors
8-bit parallel bus, faster than serial SPI refresh
On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
Easy to expand the experiment with SD card slot
Display Color: RGB 65K color
Screen Size : 3.5(inch)
Type: TFT
Driver IC : ILI9486
Resolution: 480*320 (Pixel)
Module Interface: 8-bit parallel interface
Active Area: 73.44*48.96(mm)
Module PCB Size: 85.49*55.63(mm)
Operating Temperature: -20~70
Storage Temperature: -40~70
Operating Voltage: 5V/3.3V
Power Consumption: TBD
